Furinno 11107 Assembly Instruction

STEP 5
Insert Back Panel (F) and Left Side Panel (A) to the
assembled unit using Screw (1) and Wood
Dowel (2), as shown.
(1)x 10pcs
(2)x 10pcs
B
F
E
A
E
E
G
STEP 7
Repeat Step 5 on the right side.
(2)x 10pcs
B
(1)x 10pcs
F
E
E
A
E
G
Recommended Maximum Weight
20
10
10
*Unit in Pound(lbs)
STEP 6
Attach three Shelf Panel (E) to Right Center
Panel (D) using Screw (1) and Wood Dowel (2),
as shown.
(1)x 6pcs
E
(2)x 6pcs
E
D
E
STEP 8
8.1 Attach Back Panel (F) to the back of the
assembled unit using L-Support/ Screw (4).
8.2 Cover screw head with Sticker (5).
(4)x 4pcs
F F F
F
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
Approx. 50 minutes
Recomm. 2 Person
Tool Required
Customer Support
NEED HELP? For help with assembly, or if you are missing a
part, please call Furinno Customer Service, 1-773-299-8111
from Mon-Fri, 9am-5pm (CST) or email: support@furinno.com
www.furinno.com
Assembly Instruction

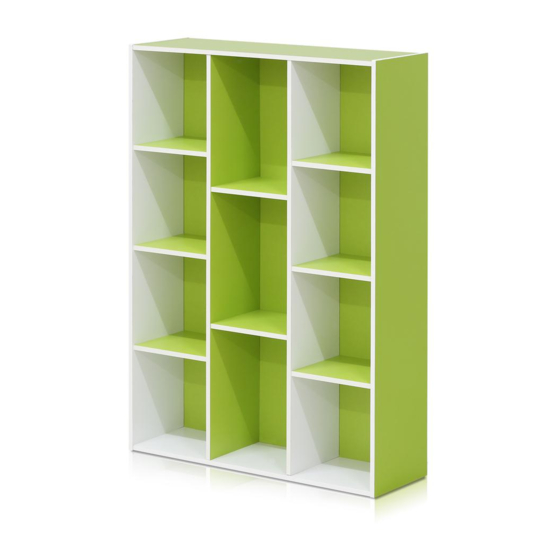

Furinno 11-Cube Reversible
Open Shelf Bookcase
11107
MODEL :
1110720170407
