Siemens QAA2391.EWTC Installation Instructions

Wireless room sensor.
Hide thumbs


Advertisement

Wireless Room Sensor (WRS)

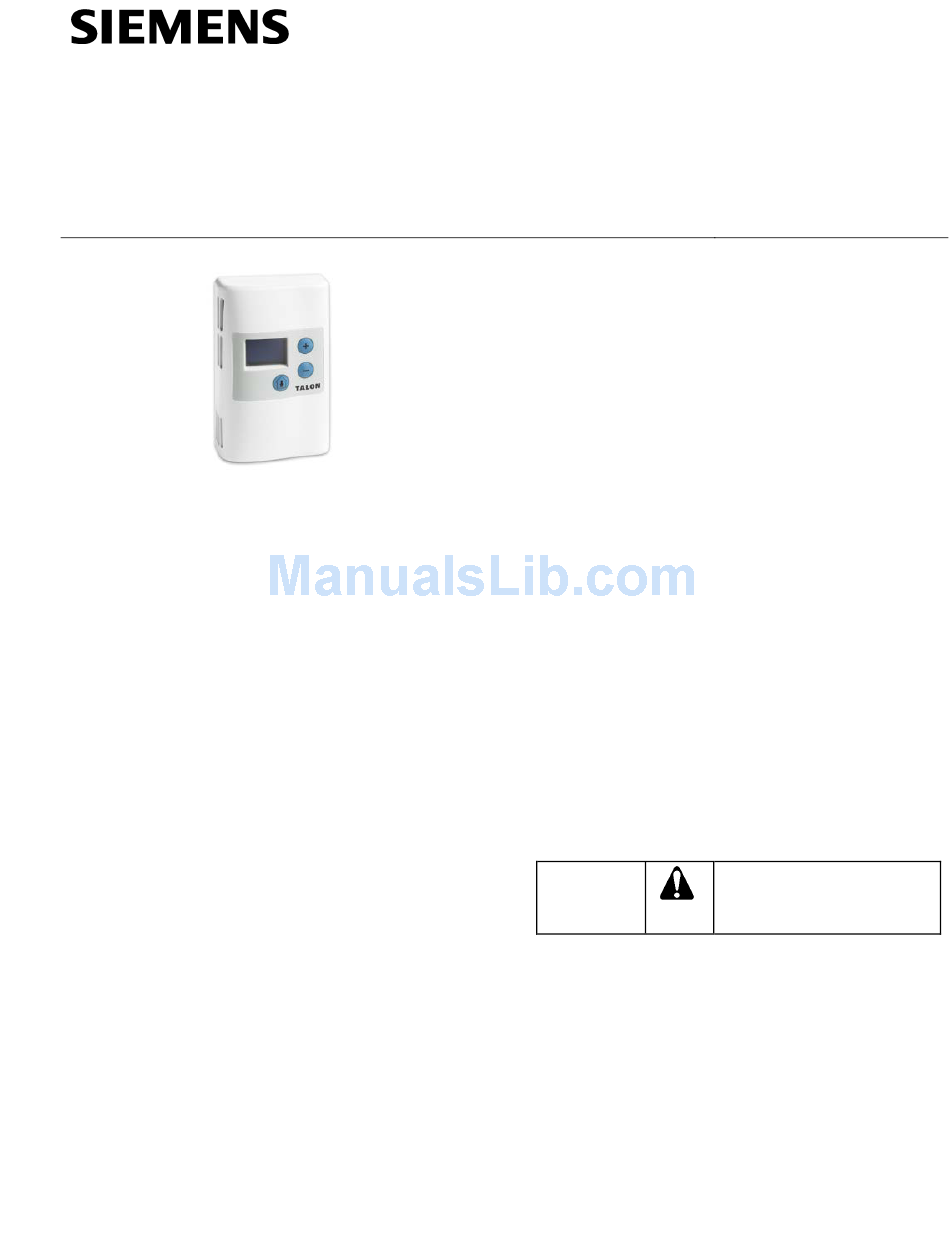

Figure 1. Wireless Room Sensor (Full-Featured).

Product Description

Wireless Room Sensors eliminate the need to run
wire between Terminal Equipment Controllers
(TECs) and their respective room temperature
sensor. The sensor communicates wirelessly with
the TEC using a Room Sensor Transceiver (RSX)
mounted at the TEC.
Product Numbers
®
TALON
Logo
QAA2391.EWTC
Wireless Room Sensor (WRS) –
Sensing only
QAA2391.DWTC
Wireless Room Sensor (WRS) –
Sensing with temperature
display
QAA2391.FWTC
Wireless Room Sensor (WRS) –
Sensing with override, setpoint,
and temperature display
No Logo
QAA2391.EWNC
Wireless Room Sensor (WRS) –
Sensing only
QAA2391.DWNC
Wireless Room Sensor (WRS) –
Sensing with temperature
display
QAA2391.FWNC
Wireless Room Sensor (WRS) –
Sensing with override, setpoint,
and temperature display
Item Number 563-066, Rev. DA
Installation Instructions
Accessories
563-207
Auto-binding cable (to bind
WRS/RSX pair)
544-643A
RTS passkey (to change display to
DIAG mode)
N/A
Replacement 3.6 Volts lithium AA
battery –SAFT Part Number
LS14500BA (See Field Purchasing
Guide.)
540-143
Laptop computer cable
(RJ-11 to DB-9)
141-570
Lockable Thermostat Guard,
vented clear plastic.
Related Products
563-069
Room Sensor Transceiver (RSX)
563-007
Direct Mount Antenna (for RSX)
563-008
Remote Mount Antenna (for RSX)
563-210-01
RSX/TEC Connection Cable (3 ft)
563-210-02
RSX/TEC Connection Cable (10 ft)
Expected Installation Time
10 minutes
Caution Notations
CAUTION:
Prerequisite
Install the associated transceiver per the Room
Sensor Transceiver (RSX) Installation Instructions
(563-067).
Document No. 563-066
November 2, 2015
Equipment damage or loss of
data may occur if you do not
follow a procedure as
specified.
Page 1 of 4
