s

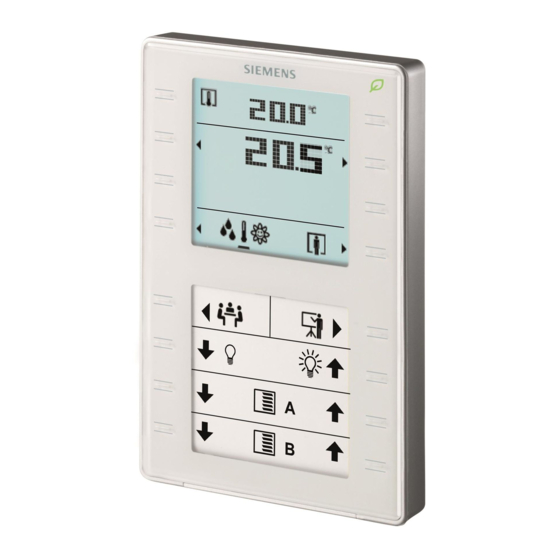

Wall-mounted sensors and room
operator units for KNX PL-Link,
KNX S-mode and KNX LTE-Mode
CM2N1602en_07
2017-05-22
QMX3.P37
QMX3.P34 / P74
Desigo™ TRA
Communicative sensors, switches and room operator units with KNX (S-mode,
LTE-Mode) or KNX PL-Link (for Desigo™ Total Room Automation)
Functions (depending on type):
• Energy efficiency function ("Green Leaf
• Room temperature, CO
• Control of light, blinds, and scenes
• PID controller for room temperature or ventilation (KNX S-mode)
• LCD Display for room temperature, operating mode, etc.
• Label for light, blinds and scenes (exchangeable, created with Word
template)
• Operation via 8 or 16 touchkeys
• Interface KNX (S-mode, LTE-Mode) and KNX PL-Link(for TRA, with plug &
play functionality)
• Powered over KNX PL-Link / KNX bus
• LEDs to indicate the switch state or the position of the device in dark rooms
QMX3.P02
")
, and humidity measurement
2
1
QMX3.P70
QMX3.P30 / P40
QMX3.P30
QMX3.P40
QMX3.P70
