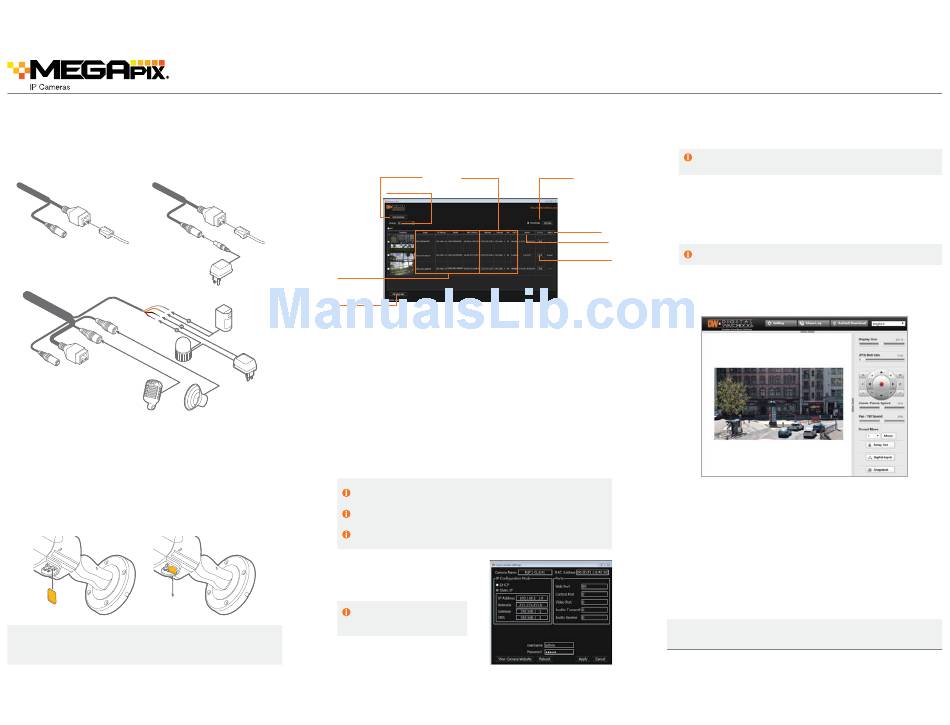

STEP 4 – CABLING
Use the diagram below to properly connect power, network, audio, alarm and
sensors to the camera.
Using a PoE-Enabled Switch Using a Non-PoE Switch
ETHERNET
CABLE
AUDIO IN AUDIO OUT
STEP 5 – MANAGING THE SD CARD
1. To install the camera's SD Card, locate the SD card slot in the bottom of
the camera by unscrewing the con cap.
2. Insert class 10 SD/SDHC/SDXC card into the SD card slot by pressing
the SD card until clicks.
3. To remove the SD card, press the card inward until it clicks to release from
the card slot than pull out from the slot.
NOTE: Maximum SD Card size supported: 64GB.
When inserting the SD card into the card slot, the SD card's
contacts should be facing upward, as shown in the diagram.
STEP 6 – DW IP FINDER
Use the DW IP Finder
cameras, set the camera's network settings or access the camera's web client.
ETHERNET
CABLE
Camera Name,
Model, IP Address,
and MAC Address
POWER
(DC 12V only)
Firmware Upgrade
ALARM IN
Network Setup
1. Go to: http://www.digital-watchdog.com
2. Search for 'IP Finder' on the quick search bar at the top of the page.
ALARM OUT
3. The latest IP Finder software will appear in the search results. Click on the
link to download the file to your computer.
4. The software will scan your network for all supported cameras and display
the results in the table. Allow up to 5 seconds for the IP Finder to find the
camera on the network.
5. Select a camera from the list by double-clicking on the camera's image
or clicking on the 'Click' button under the IP Conf. column. The camera's
network information will appear. If necessary, you can adjust the camera's
network type.
Select DHCP if the internet service is dynamic IP. This will allow the camera to
receive its IP address from the DHCP server.
Select STATIC to manually enter the camera's IP address, subnet mask,
Gateway and DNS information.
Contact your network administrator for more information.
6. The camera's default network
information is:
Default TCP/IP information
• IP: DHCP
™
™ software to scan the network and detect all MEGApix
Camera's View Camera's
Search for Cameras
Network Settings Thumbnail View
Filter Search Results
® 7. To view the camera's web viewer, click on 'View Camera Website'.
'Port Forwarding' has to be set in your network's router for external access
to the camera.
8. To save the changes made to the camera's settings, input the ID and PW of
the camera for authentication and click 'Save'.
9. If the camera needs to be rebooted after the settings were changed, press
the 'Reboot' button. The camera will cycle power and will appear back in the
Camera Uptime
search results once the reboot is complete.
Camera's Firmware
Open Camera's IP
Default ID / PW : admin / admin
Configuration Screen
STEP 7 – WEB VIEWER
Once the camera's network settings have been setup properly, you can access
the camera's web viewer using the DW IP Finder
viewer:
1. Find the camera using the DW IP Finder
2. Double-click on the camera's view in the results table.
3. Press the 'View Camera Website.' The camera's web viewer will open up in
your default web browser.
4. Enter the camera's username and password (default are admin / admin).
5. If you are accessing the camera for the first time, install the ActiveX files in
order to view video from the camera.
NOTE: Please see the full product manual for web viewer setup,
functions and camera settings options.
Rev Date: 1/17
Quick Start Guide
™
. To open the camera's web
™ .
