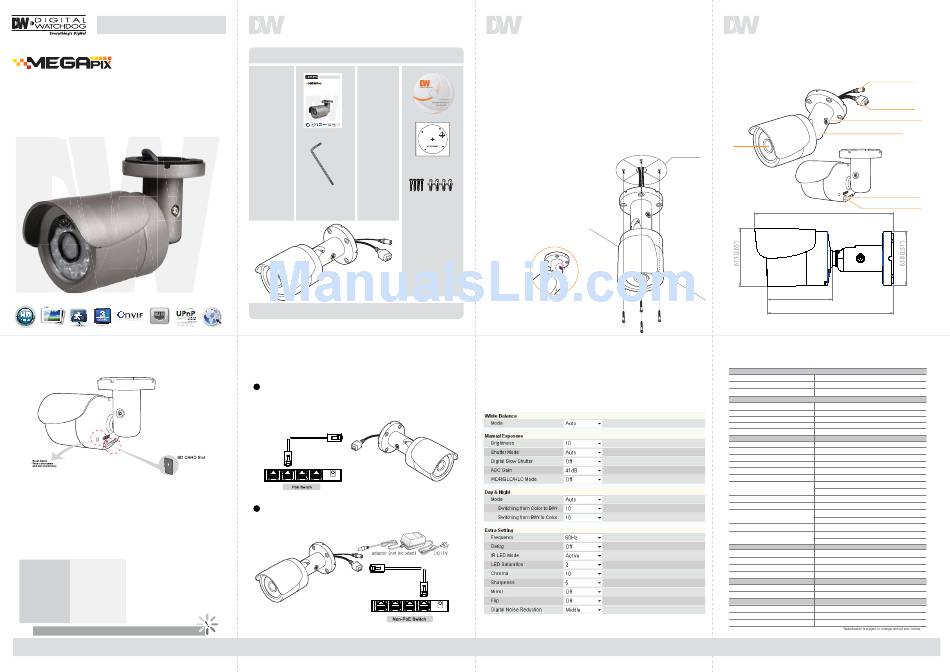

Digital Watchdog DWC-MB721M8TIR Quick Start Manual

DWC-MB721M4TIR
DWC-MB721M8TIR
IP 2.1MP Weather Resistant Bullet IR Camera
Quick Setup Guide
Additional Cabling Connections
Resetting the Camera
Pressing the reset button on the camera's control board for five (5) seconds will
initialize all environmental variables to factory default. Previous setup for IP default,
time, etcetera will be deleted. If a system IP address is lost, reset the camera back
to factory default.The following are the default network settings:
IP Mode DHCP
IP Address 192.168.1.123
Subnet Mask 255.255.255.0
Gateway 192.168.1.123
Command Port 7000
HTTP Port 80
Live Port 7001
Frequent use may cause a System Error
TEL: (866) 446-3595
www.Digital-Watchdog.com / technicalsupport@dwcc.tv
Technical Support Hours: Monday-Friday 9:00AM to 8:00PM EST
PREPARATION
The following items are included with a MEGApix Bullet camera
CD
(Manual &
DWC-MB721M4TIR
Quick Start
DWC-MB721M8TIR
Software)
IP 2.1MP Weather Resistant Bullet IR Camera
Quick Setup Guide
Guide
Mounting
Template
L-Wrench
4 Screws & 4
Dry Wall
Anchors
Thank you for purchasing Digital Watchdog's MEGApix Weather Resistant Bullet Camera.
Before installing the camera, please verify your model and read this guide carefully.
Network Connection
There are two options.*
Using a PoE-Enabled Switch
1
The MEGApix Camera is PoE-compliant, allowing transmission of power
and data via a single ethernet cable. Follow the illustrations below to
connect the camera to a PoE-enabled switch using an ethernet cable.
Using a Non-PoE Switch
2
If a PoE-enabled switch is not used, use a power adaptor to connect the
MEGApix Camera to a Non-PoE switch.
5
20 140122
INSTALLATION
Prepare the Camera and Mounting Surface
Before mounting the camera, please check the following:
1. The mounting surface must be able to sustain five times the weight of your
camera.
2. Do not let the cables get caught in improper locations or it can cause
damage to the cables.
Mounting the Camera
1. Use the camera's mounting template or the camera's housing to mark the
drilling holes in the mountng surface.
2. Drill holes into the drywall using the included dry wall anchors.
3. Pull wires through and make connections. Refer to "Network Connection"
for more information.
Mount the camera to the wall or ceiling using
the screws provided with the camera.
4. To adjust the camera's pan and tilt,
loosen the Pan/ Tilt stopper screw a little
before mounting the camera.
5. Once the camera's pan and tilt angles
have been adjusted, tighten the Pan/
Tilt stopper screw back to secure the
camera in its position.
IR Bullet Camera
- 12VDC Power
- RJ45 Network
2
Recommended Settings
Camera Default Color Settings
Please refer to the table below for the default camera settings.
You can reset the camera's settings to its default color settings by
pressing the 'Default' button at the bottom of the screen.
6
INSTALLATION
Parts and Description
The MEGApix Camera is designed to be surface mounted on a wall
or ceiling.
Lens
Template Sheet
161.7 (6.36")
76.0 (3.0")
146.7 (5.77")
3
Camera Specifications
Image Sensor 1/2.8" Sony CMOS Sensor
Effective Pixels 1920 (H) X 1080 (V)
Minimum Scene Illumination F2.0 (30IRE): 2.4 Lux [Color], F2.0 (30IRE): 0.5 Lux [B/W]
LENS
Focal Length 4.0mm [DWC-MB721M4TIR]/ 8.0mm [DWC-MB721M8TIR]
Zoom 12x Digitzl Zoom
Lens Type Fixed Lens
IR Distance 50ft Range IR
o
Angle of View Horizontal: 42 Wide Angle
NETWORK
LAN 802.3 Compliance 10/100 LAN
Video Compression Type H.264, MPEG4, MJPEG (Super Fine~Low)
Resolution 1920X1080 (16:9) ~ 320X240 (4:3)
Frame Rate Up to 30fps at All Resolutions
Streaming Capability Dual-Stream at Different Rates and Resolutions
IP IPv4, IPv6
Protocol TCP/IP, HTTP, DHCP, PPPoE, ICMP, ARP, RARP,
RTSP, NTP, UDP, Multicast
Maximum User Access 5 Users
ONVIF Conformance Yes
Web Viewer OS: Windows XP / Vista / 7, MAC OS
Browser: Internet Explorer, Chrome, Firefox, Safari
Video Management Software NxMS, DW Spectrum, Pivot
Memory Slot 24 hours recording to Micro SDHC Card (4GB-32GB)
Card Not Included*
ENVIRONMENTAL
Operating Temperature/ Humidity -10 o C ~ 50 o C (14 o
Operating Humidity Less than 90% (Non-Condensing)
IP Rating IP66 (Protects against dust and high pressure water)
Other Certifications CE, FCC, RoHS
ELECTRICAL
Power Requirement DC 12V, PoE (IEEE802.3af Class 2)
Power Consumption 3.5W, 300mA / LED ON: 5W, 430mA
MECHANICAL
Material Aluminum Housing
Dimensions 161.7 x 67.5 mm (6.36 X 2.66 in)
Weight 0.93 lbs
7
DC Power Cable
RJ-45 Cable
Pan/Tilt Stopper Screw
Bracket
Reset Button
SD Card Slot
4
F ~ 122 o F)
8
