Digital Watchdog DWC-MB721M4TIR Quick Start Manual

Quick Start Guide
DWC-MB721M4TIR DWC-MB721M8TIR
Default Login Information
Username: admin Password: admin
WHAT'S IN THE BOX
Screws and
Quick setup
1 plastic
guide
anchors – 4pcs
Mounting
1 Torque wrench
template
NOTE: Download all your support materials and tools in one place
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in the
'Search by Product' search bar. Results for applicable
part numbers will populate automatically based on the
part number you enter.
3. Click 'Search'. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
Attention: This document is intended to serve as a quick reference for initial
set-up. It is recommended that the user read the entire instruction manual for
complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
digital-watchdog.com
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear five times the weight of your
camera.
2. Do not let the cables get caught in improper places or the electric
line cover to be damaged. This may cause a breakdown or fire.
3. CAUTION: These servicing instructions are for use by qualified
service personnel only. To reduce the risk of electric shock do not
perform any servicing other than that contained in the operating
instructions unless you are qualified to do so.
4. This product is intended to be supplied by a UL Listed Power
Supply Unit marked "Class 2" or "LPS" or "PS2" and rated 12 Vdc,
470 mA min.
5. The wired LAN hub providing power over the Ethernet (PoE) in
accordance with IEEE 802-3af shall be a UL Listed device with
the output evaluated as a Limited Power Source as defined in
UL60950-1 or PS2 as defined in UL62368-1.
6. Unit is intended for installation in a Network Environment 0 as
defined in IEC TR 62102. As such, associated Ethernet wiring shall
be limited to inside the building.
7. Using the mounting template sheet or the camera itself, mark and
drill the necessary holes in the wall or ceiling.
STEP 2 – CABLING THE CAMERA TO
EXTERNAL DEVICES
Pass the wires through and make all necessary connections.
1. NETWORK CONNECTIONS – Using a PoE Switch or PoE Injector,
1 Set
connect the camera using an Ethernet cable for both data and
power.
2. NETWORK CONNECTIONS – Not using PoE Switch or PoE
1
Injector, connect the camera to the switch using an Ethernet
cable for data transmission and use a power adapter to power the
camera.
Power requirements Power consumption
DC 12V, PoE
DC12V: max 5.6W
(IEEE 802.3af Class 3).
PoE: max 7.3W
(Adapter not included)

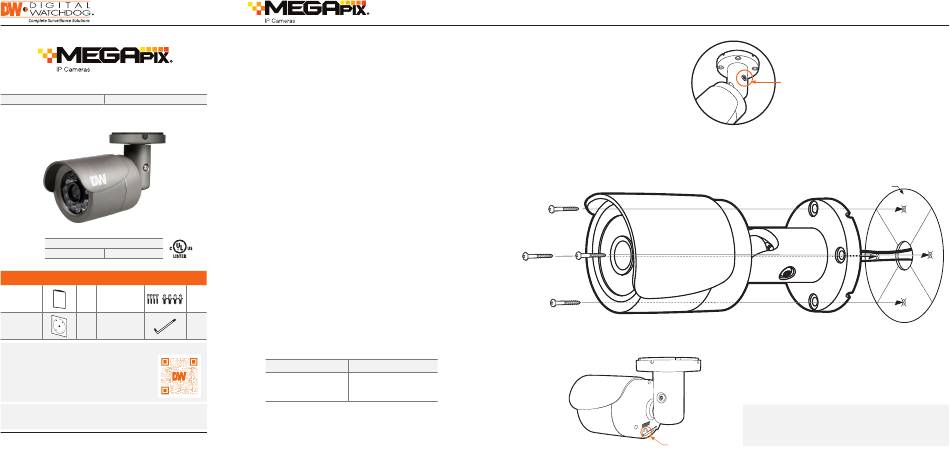

STEP 3 – INSTALLING THE CAMERA
1. Once all cables are connected, secure the camera to the
mounting surface using the included screws.
2. Loosen the pan and tilt screws at the base of the camera's
bracket to adjust the camera's view and position.
Reset
Button
Quick Start Guide
Pan/Tilt
Screw
Template
Sheet
Resetting the camera: To reset the camera, use the tip of a
paper clip or a pencil and press the reset button. Pressing the
button for five (5) seconds will initiate a camera-wide reset of
all the settings, including network settings.
