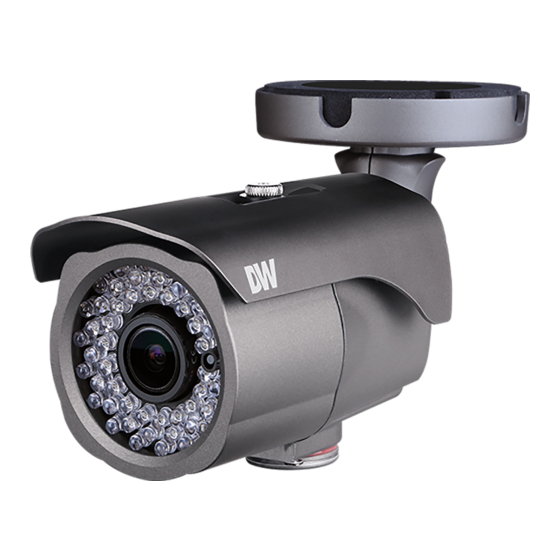

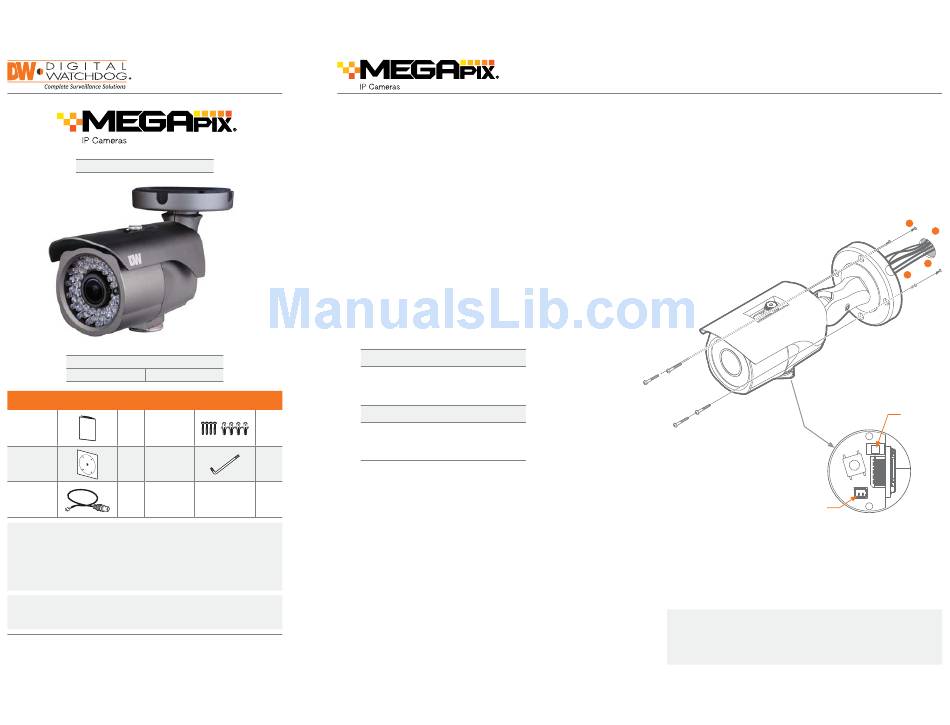

Digital Watchdog MegaPix DWC-MB45DiA Quick Start Manual

Quick Start Guide
DWC-MB45DiA
Default Login Information
Username: admin Password: admin
WHAT'S IN THE BOX
Screw &
QSG Manual 1 Set Plastic Anchor
– 4pcs
Template
1 Set Torx Wrench
Sheet
Test Video
1 Set
Cable
NOTE: Download All Your Support Materials and Tools in One Place
1. Go to: http://www.digital-watchdog.com/support-download/
2. Search your product by entering the part number in the 'Search by Product' search
bar. Results for applicable part numbers will populate automatically based on the
part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick Start Guides
(QSG), software and firmware will appear in the results.
Attention: This document is intended to serve as a quick reference for initial
set-up. It is recommended that the user read the entire instruction manual for
complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear five times the weight of your camera.
2. Do not let the cables get caught in improper places or the electric line cover
to be damaged. This may cause a breakdown or fire.
3. Using the mounting template sheet or the camera itself, mark and drill the
necessary holes in the wall or ceiling.
STEP 2 – CABLING THE CAMERA TO EXTERNAL DEVICES
4. Pass the wires through and make all necessary connections.
a. NETWORK CONNECTIONS – If you are using a PoE Switch, connect the
camera using an Ethernet cable for both data and power.
b. NETWORK CONNECTIONS – If you are using a non-PoE switch, connect
the camera to the switch using an Ethernet cable for data transmission
and use a power adapter to power the camera.
Power Requirements
DC 12V
PoE IEEE 802.3af / PoE Class 3
Power Consumption
1 Set
LED On: 9.4W, 783mA
LED Off: 5.1W, 425mA
1 Set
digital-watchdog.com
Quick Start Guide
STEP 3 – INSTALLING THE CAMERA
5. Loosen the pan and tilt screws at the base of the camera's bracket to adjust
the camera's view and position.
Test Video
Output
Resetting the camera: To reset the camera, use the tip of a paper clip
or a pencil and press the reset button. Pressing the button for five (5)
seconds will initiate a camera-wide reset of all the settings, including
network settings.
3
1
2
4
Reset Button
