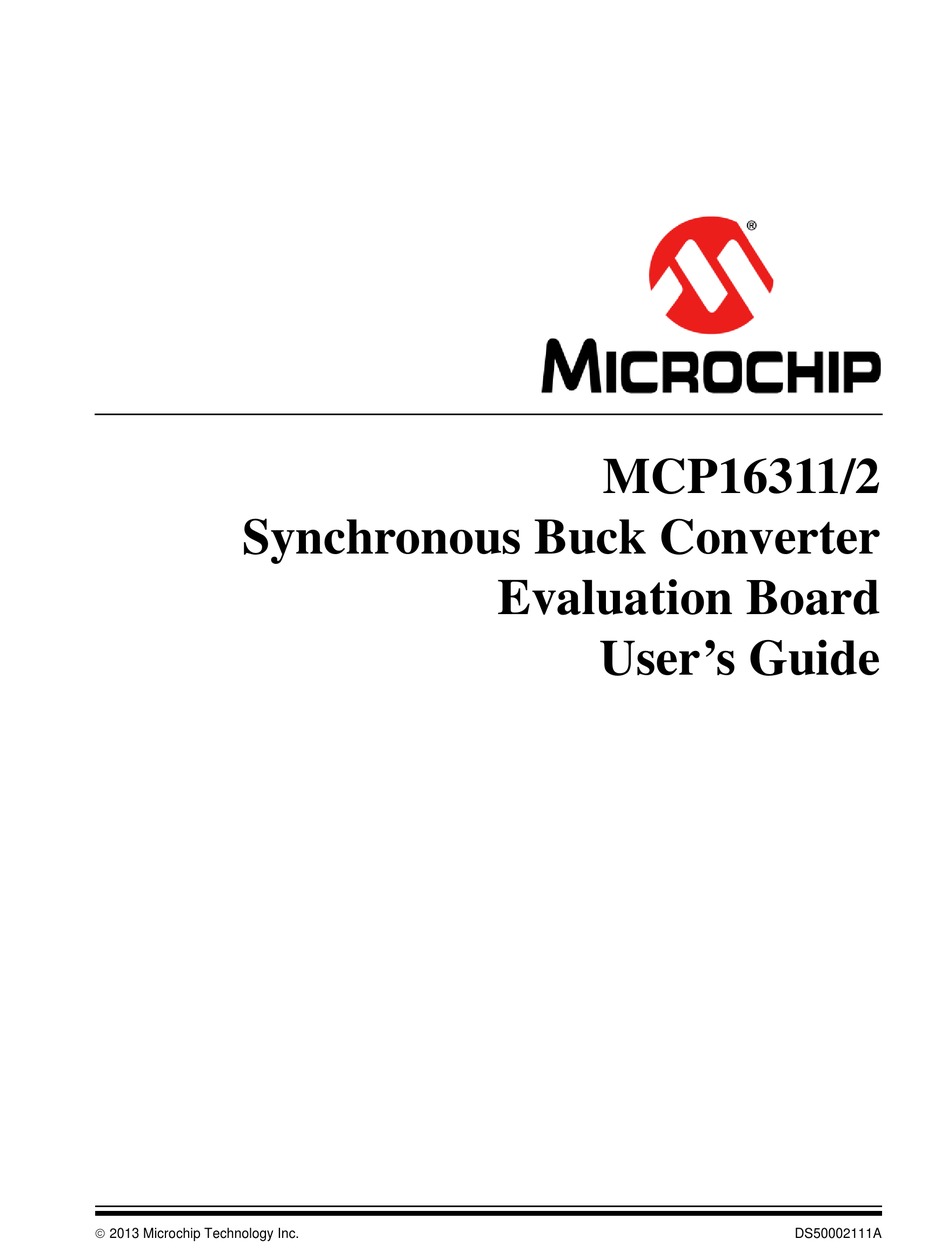

Object of Declaration: MCP16311/2 Synchronous Buck Converter Evaluation Board User’s Guide 2013 Microchip Technology Inc. DS50002111A-page 3...
• The Microchip Web Site • Customer Support • Document Revision History DOCUMENT LAYOUT This document describes how to use the MCP16311/2 Synchronous Buck Converter Evaluation Board as a development tool. The manual layout is as follows: • Chapter 1. “Product Overview”...
MCP16311/2 Synchronous Buck Converter Evaluation Board User’s Guide CONVENTIONS USED IN THIS GUIDE This manual uses the following documentation conventions: DOCUMENTATION CONVENTIONS Description Represents Examples Arial font: ® Italic characters Referenced books MPLAB IDE User’s Guide Emphasized text ...is the only compiler...
Preface RECOMMENDED READING This user’s guide describes how to use the MCP16311/2 Synchronous Buck Converter Evaluation Board. Another useful document is listed below. The following Microchip document is available and recommended as a supplemental reference resource. • MCP16311/2 Data Sheet – “30V Input, 1A Output, High-Efficiency, Integrated Synchronous Switch Step-Down Regulator”...
The device is available in 8LD MSOP and 2 x 3 mm TDFN packages. The scope of this evaluation board is to demonstrate the features of the MCP16311/2. This chapter provides an overview of the MCP16311/2 Synchronous Buck Converter Evaluation Board and covers the following topics: •...
(PWM only – low output voltage ripple) in two buck converter applications with two output voltages. It can be used to evaluate both package options, 8LD MSOP and 8LD 2 x 3 TDFN. The MCP16311/2 Synchronous Buck Converter Evaluation Board was developed to help engineers reduce the product design cycle time.
Chapter 2. Installation and Operation INTRODUCTION The MCP16311/2 device is capable of regulating the output voltage over a wide 2V to 15V range, and typically can deliver over 1A of load current at 3.3V output when supplied from a 12V input. The input voltage range is 4V to 30V. The regulated output...
Connect system load to V and GND terminals; maximum load varies with input and output voltage (see the MCP16311/2 data sheet for more information on the maximum load). Connect the (+) side of the load to V and the (–) load to GND terminals.
Page 15
Check Table 2-1 for the value of the inductor or the MCP16311/2 data sheet for more information. The output voltage can be calculated using the following equation: ...
CONVERTER EVALUATION BOARD USER’S GUIDE Appendix A. Schematic and Layouts INTRODUCTION This appendix contains the following schematics and layouts for the MCP16311/2 Synchronous Buck Converter Evaluation Board: • Board – Schematic • Board – Top Silk • Board – Top Copper •...
