Kusam-meco KM 3060 Operation Manual

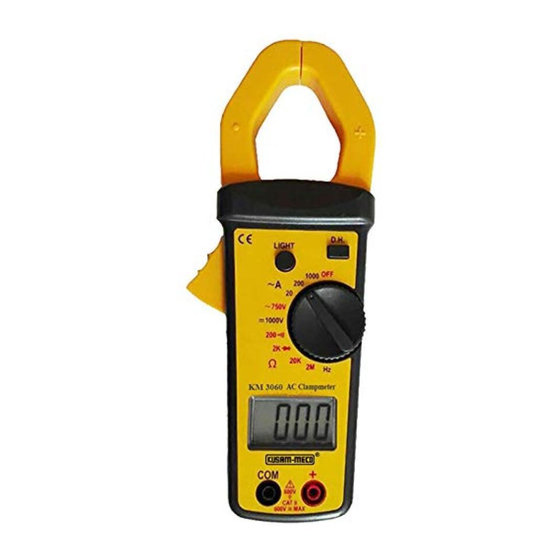

1000a ac digital clampmeter
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

An ISO 9001:2008 Company
GENERAL SPECIFICATIONS :
í
AC Current : 0.01A ~ 1000A
í
AC Voltage : 1V ~ 750V
í
DC Voltage : 1V ~ 1000V
í
Resistance : 0.1W ~ 2MW
í
Frequency : 1Hz ~
2KHz
í Sampling
rate : 3 reading/sec.
í
Polarity : Automatic.
í
Power Supply : 9V Alkaline Battery.
í
Dimension : 228(L) x 75(W) x 36(H)mm
í
Weight : approx 465 gms.(including battery).
ELECTRICAL SPECIFICATIONS : KM 3060
AC CURRENT
Range
Resolution
50Hz ~ 60Hz
20
A
0.01 mA
200
A
0.1 mA
1000 A
1
Overload Protection : 1200A within 60 seconds.
AC VOLTAGE
Range
Resolution
50Hz ~ 60Hz
750
V
1
V
Overload Protection : 750V AC / DC on all ranges.
Input Impedance : 9MW
DC VOLTAGE
Range
Resolution
1000
V
1
V
Overload Protection : 1000V DC / Peak AC on all ranges.
Input Impedance : 9MW
CONTINUITY TEST
Range
200 W
Buzzer Sound
With resistance less than 50W
Overload Protection : 500V DC / rms AC
®
An ISO 9001:2008 Company
Chhaya com/D/chhaya/my documents/chhaya/backup/catlog/New catlog/2015 new arrival catalogs/KM 3060.cdr
®

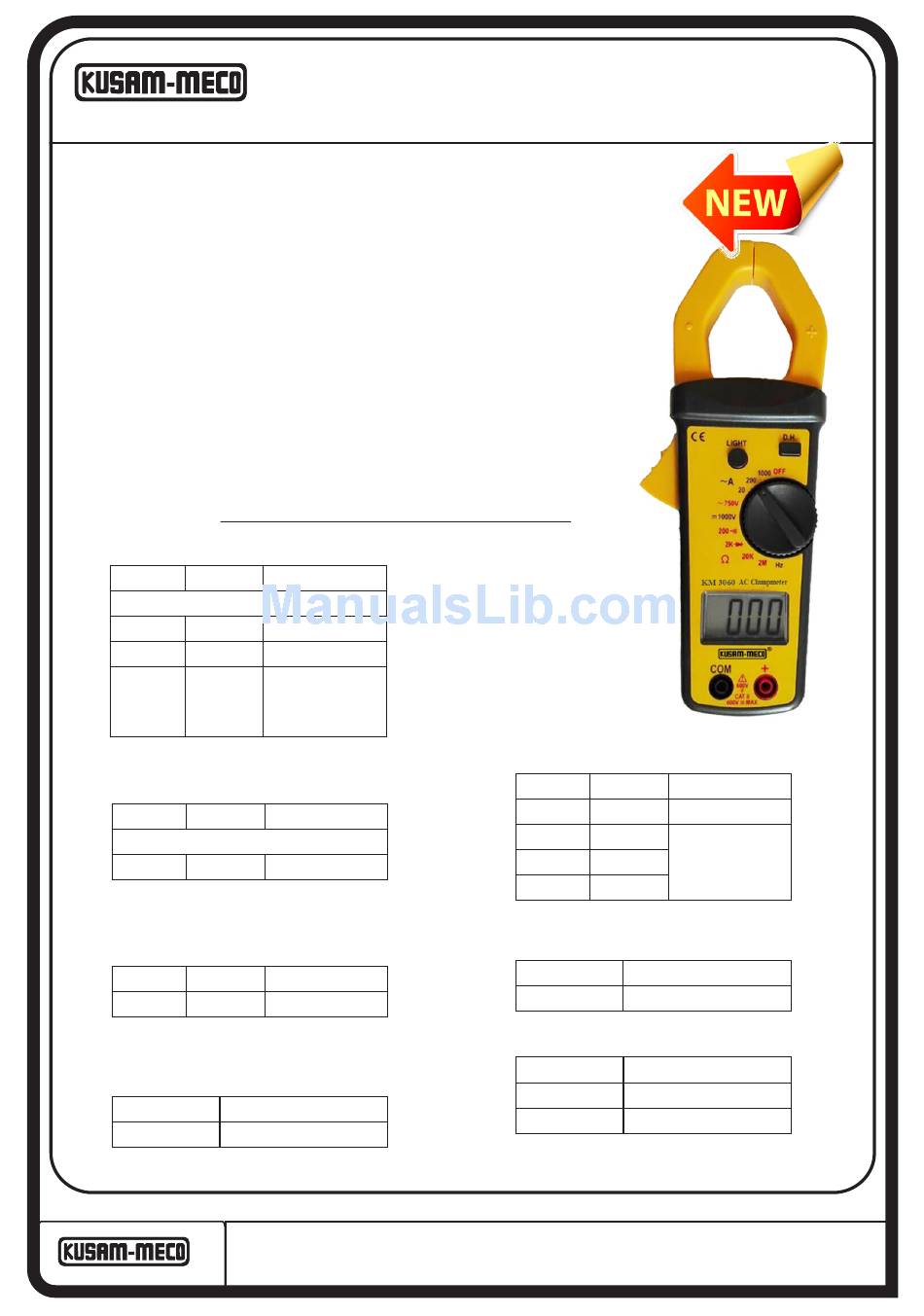

1000A AC DIGITAL CLAMPMETER
SPECIAL FEATURES :
— Display :
● Jaw size : Φ40mm
● Date hold
● Black Light
● Resistance, Frequency test
● Diode & Continuity test
ACCESSORIES :
Test leads set, Users Manual, Battery &
Carrying Case.
Accuracy
± (3%rdg + 5dgts)
± (2%rdg + 5dgts)
± (2%rdg + 5dgts)
for 800A & below
A
± (3%rdg + 5dgts)
for others current.
Accuracy
± (1.2%rdg + 10dgts)
Accuracy
± (1%rdg + 1dgts)
G-17, Bharat Industrial Estate, T. J. Road, Sewree (W), Mumbai - 400 015. INDIA.
Sales Direct.: 022-24156638,
Email : kusam_meco@vsnl.net,
MODEL KM 3060
3 ½ digits LCD,1999 counts
RESISTANCE
Range
Resolution
200
W
0.1
2
KW
0.001 KW
20
KW
0.01 KW
2
MW
0.001 MW
Overload Protection : 250V DC / rms AC on all ranges.
FREQUENCY
Range
1Hz ~ 2KHz
DIODE TEST
Test Current
< 1.2mA
Open Circuit Voltage £ 3.2V
Relative Humidity
max. 80%
Overload Protection : 500V DC / rms AC
Application : Display reading approx. Diode forward voltage value.
All Specifications are subject to change without prior notice
Tel. : 022-24124540, 24181649,
Website : www.kusamelectrical.com
Preliminary Data
Accuracy
± (1.2%rdg + 5dgts)
W
± (1%rdg + 5dgts)
Accuracy
± (2.0% rdg + 5 dgts)
Fax : 022-24149659

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KM 3060 and is the answer not in the manual?

Questions and answers

Related Manuals for Kusam-meco KM 3060

Summary of Contents for Kusam-meco KM 3060

  • Page 1 G-17, Bharat Industrial Estate, T. J. Road, Sewree (W), Mumbai - 400 015. INDIA. Sales Direct.: 022-24156638, Tel. : 022-24124540, 24181649, Fax : 022-24149659 Email : kusam_meco@vsnl.net, Website : www.kusamelectrical.com An ISO 9001:2008 Company Chhaya com/D/chhaya/my documents/chhaya/backup/catlog/New catlog/2015 new arrival catalogs/KM 3060.cdr...

  • Page 2: List Of Products

    ¬ Digital Panel Meters DIGITAL CLAMP MULTIMETER ¬ DC Power Supplies ¬ High Voltage Detector ¬ Calibrators ¬ Gas Analysers MODEL - KM 3060 ¬ Frequency Counter ¬ Function Generator ¬ Phasing Sticks ¬ Battery Tester ¬ Waterproof Pen Testers ¬...

  • Page 3: Warranty

    ® ® WARRANTY Each “KUSAM-MECO” product is warranted to be free from defects in material and workmanship under normal use & service. The warranty period is one year (12 months) and begins from the date of despatch of goods. In case any defect occurs in functioning of the instrument,...

  • Page 4: Test Certificate

    ±(2% of reading + 5 d) 200A 100mA 1000A ±(2% of reading + 5 d) for 800A and below ±(3% of reading + 5 d) ISO 9001 for others current. KUSAM-MECO REGISTERED Overload Protection 1200A within 60 seconds. PASS Jaw opening 2" (5cm)
  • Page 5 ® ® 3.4 Resistance and Continuity Measurements 2.2 AC Voltage 3.4.1 Set the Function/Range switch to the resistance range or continuity position. Range Accuracy (50Hz-60Hz) Resolution 3.4.2 Turn off the power from the circuit under test. ±(1.2% of reading + 10 d) 750 V 3.4.3 Connect the red test lead to the "VGA"...

  • Page 6: Dc/Ac Voltage Measurement

    ® ® 2.6 Diode Test 3.1 DC/AC VOLTAGE MEASUREMENT 3.1.1 Connect red test lead to "+' ;Black test lead to "COW. Test current < 1.2mA 3.1.2 Set RANGE switch to ACV or DCV desired position. Open circuit voltage < 3.2V 3.1.3 Connect test leads to device or circuit being tested.
  • Page 7 ® ® All function and Ranges with Data hold 6. "+ " connector this feature. High input terminal for voltage, resistance, continuity, measurement. Accept banana plugs. 228(L)X75(W)X36(H)mm Dimension Weight 465gr.aprox.(batteryincluded) 7. "COM " input connector Low input terminal for voltage, resistance, continuity, measurement.
