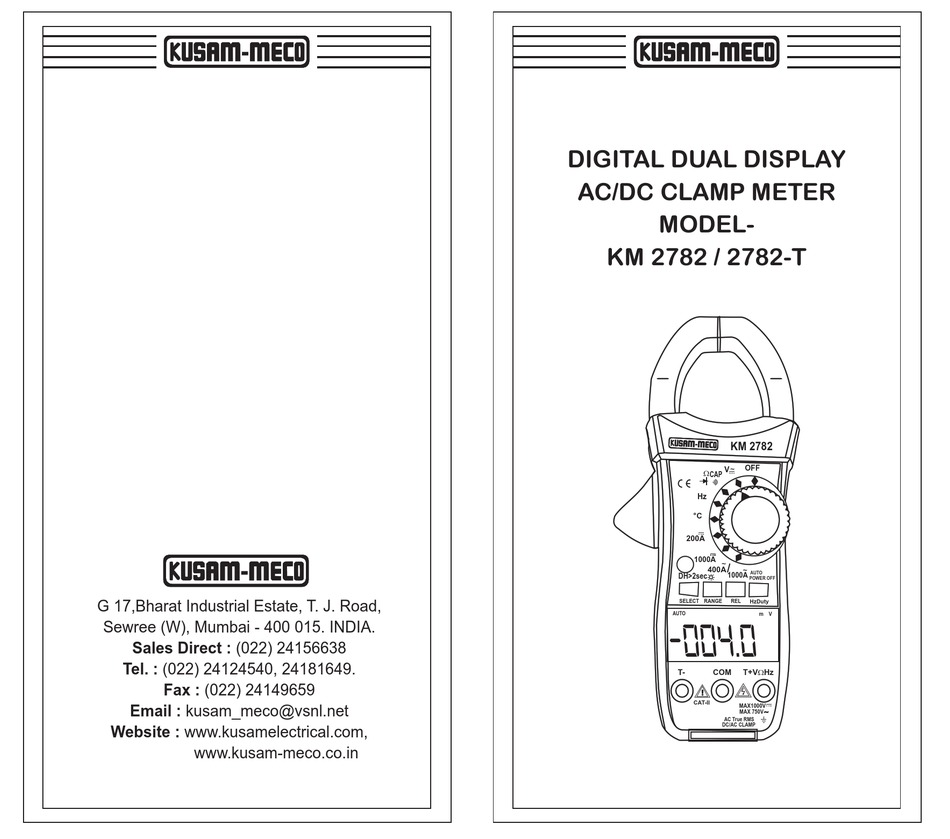

G 17,Bharat Industrial Estate, T. J. Road,
Sewree (W), Mumbai - 400 015. INDIA.
Sales Direct : (022) 24156638
Tel. : (022) 24124540, 24181649.
Fax : (022) 24149659
Email : kusam_meco@vsnl.net
Website : www.kusamelectrical.com,
www.kusam-meco.co.in
DIGITAL DUAL DISPLAY
AC/DC CLAMP METER
MODEL-
KM 2782 / 2782-T
KM 2782
OFF
~
V
CAP
Hz
°C
200A
1000A
~
400A
~
1000A
DH>2sec
SELECT RANGE
REL
AUTO
-004.0
T-
COM
T+V Hz
!
CAT-II
MAX1000V
MAX 750V
AC True RMS
DC/AC CLAMP
AUTO
POWER OFF
HzDuty
m V
~
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kusam-meco KM 2782
Summary of Contents for Kusam-meco KM 2782
- Page 1 DIGITAL DUAL DISPLAY AC/DC CLAMP METER MODEL- KM 2782 / 2782-T KM 2782 °C 200A 1000A 400A AUTO 1000A DH>2sec POWER OFF SELECT RANGE HzDuty G 17,Bharat Industrial Estate, T. J. Road, AUTO Sewree (W), Mumbai - 400 015. INDIA.
- Page 2 TABLE OF CONTENTS TAKE MEASUREMENT CAREFULLY AND YOU’LL SPARE YOUR METER AND YOURSELF, SOME PAIN Nearly every electrical engineer has a hand held Title Page digital clamp meter (Tongtester). We sometimes take them for granted, until we damage them or “burn Safety Information ........
-
Page 3: Safety Information
1. SAFETY INFORMATION 8. Take care not to exceed the maximum limits as given in the specifications to avoid damage to The following safety information must be observed the instrument. to insure maximum personal safety during the operation of this meter. 9. -
Page 4: General Specifications
Auto Power Off : 30 minutes after non usage Impedance : 10MÙ, more than 100MÙ on 400mV range of switch / buttons. Press any button or move AC Voltage (KM 2782) the switch,to disable auto power off. Range Accuracy Resolution... - Page 5 Overload protection : 1000Arms within 60 seconds MÙ 1 kÙ Frequency : 50~400Hz 40 MÙ 10 kÙ ±(2.5%rdg + 15dgts) Overload protection : 250V DC / 250 Vrms AC 2.2.5 AC Voltage (True RMS)(KM 2782-T) Range Accuracy Resolution Capacitance ±(2.0%rdg+15dgts) 400 mV Range...
-
Page 6: Product Description
Resolution ±(3°C+2) 1°C -20~150°C ±(3.0%rdg +2dgts) 1°C 150~300°C ±(3.5%rdg+10dgts) 300~1000°C 1°C Overload protection : 250V DC / 250Vrms AC KM 2782 Thermocouple sensor accuracy not included. 1)Temperature probe supplied can measure upto 250°C °C 200A 1000A 400A AUTO 1000A DH>2sec... - Page 7 3. SELECT Key : 3. MEASURING INSTRUCTION This key works on the “ CAP Ù” & DC Voltage measurement “V ” range. Press the key to choose 1) Connect the black test lead to “COM” resistance, diode or continuity test. Press socket and red test lead to the “VÙ”...
- Page 8 DC Current measurement AC Voltage measurement 1) Set the selector switch to desired “200 ”or 1) Connect the black test lead to “COM” “1000A ” position. socket and red test lead to the “VÙ” socket. 2) Press the “REL” button, the display shows 2) Set the selector switch to desired “V~”...
- Page 9 AC Current measurement CORRECT 1) Set selector switch desired “ 400 / 1000A~” position. - ve 2) Open the clamp by pressing the jaw-opening handle and insert the cable (one cable only) to be measured into the jaw. °C 200A LOAD 1000A 3) Close the clamp and get the reading from the...
- Page 10 INCORRECT LOAD °C 200A 1000A 400A 1000A AUTO DH>2sec POWER OFF SELECT RANGE HzDuty 1000 °C AC 3phase T+V Hz 200A source CAT-II MAX1000V MAX 750V AC True RMS DC/AC CLAMP 1000A 400A AUTO 1000A DH>2sec POWER OFF SELECT RANGE HzDuty AUTO 40.00...
- Page 11 Frequency measurement Caution : a) Capacitors should be discharged before 1) Connect the black test lead to “COM” socket being tested. and red test lead to the “V Ù” socket. b) This device adopts charging mode to 2) Set the selector switch to desired “Hz” position. measure capacitance, so when testing large capacitance, it will take longer time before 3) Connect...
- Page 12 Temperature measurement 1) Connect the black test lead of the sensor to “T-” socket and the red test lead to the “T+” socket. 2) Set the selector switch to “ °C” position. °C 3) Place the Temperature sensor probe at the 200A place whose temperature is to be measured.
-
Page 13: Care And Maintenance
4. CARE AND MAINTENANCE 4.1 Caring For Your Multimeter KM 2782 / KM 2782-T Digital Multimeter is an example of superior design & quality. The following suggestions will help you care for the multimeter so you can enjoy it for years. -
Page 14: Battery Replacement
4.2 Battery Replacement 1) Ensure the instrument is not connected to any KM 2782 / 2782-T MODEL NO. __________________ external circuit. Set the selector switch to “OFF” position and remove the test leads from the terminals. -
Page 15: Warranty
THIS WARRANTY IS BUYER’S SOLE AND WARRANTY EXCLUSIVE REMEDY AND IS IN LIEU OF ALL Each “KUSAM-MECO” product is warranted to be OTHER WARRANTIES, EXPRESS OR IMPLIED, free from defects in material and workmanship INCLUDING BUT NOT LIMITED TO ANY under normal use &...
