Di-LOG DL6702 Operating Instructions

CLAMP-ON DCA/ACA MULTIMETER ADAPTOR
TABLE OF CONTENTS
I

Features

II

Panel Description

III Specifications
IV Operation Instructions
V Battery Replacement
I. Features:
Plugs into any brand DMM with 400mV or 2V input range for non-contact current monitoring and

wave form pick- up
 1.2" (30mm) clamp jaw opening
 Measures DC Current when DMM in DC rang and AC current in to AC range
 One touch "Auto Zero" for DCA measurements

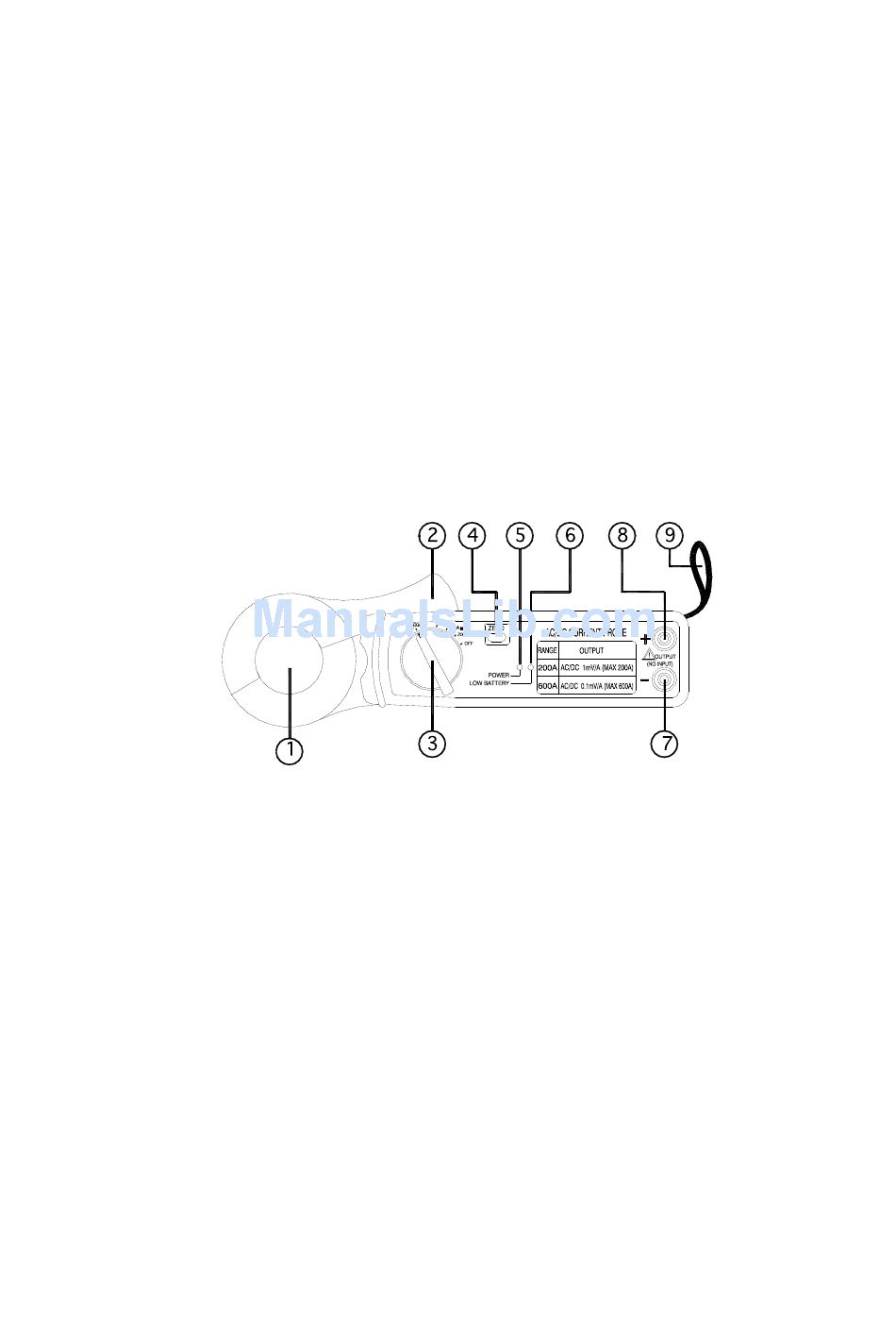

II. Panel Description
1. Transformer Jaw
This is used to pick up current signal. To measure DC/AC current, The jaw must be enclosed.
2. Transformer Trigger
This is used to open the jaw.
3. Function Selector Switch
This is used to select the function user desired, such as DCA, ACA measurement or turn the
meter OFF.
4. Zero Button
Once this button is pressed, the current reading shall be set to zero. The function is also used
to remove offset value caused by the residual magnetism remained in the core for the dc
current measurement.
5. Power ON/OFF LED display
6. Low Battery LED indication
When the LED lamp turns on, the battery should be changed. Refer to Section V for battery
replacement
7. Output Terminal –
This terminal is used as output for DCA - polarity and ACA. (No input)
8. Output Terminal +
This terminal is used as output for DCA + polarity and ACA. (No input)
9. Hand Strap
Put your hand through the hold of hand strap to avoid.
