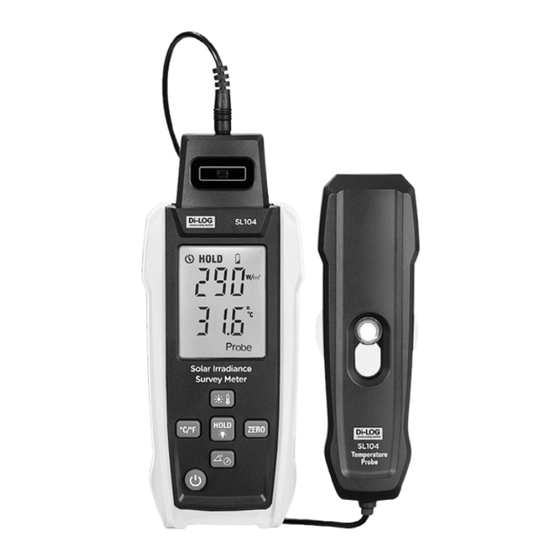

- Page 1 Operating Instruction for Solar Irradiance Survey Meter Please read this manual before switching the unit on. Important safety information.
-
Page 2: Table Of Contents
Di-LOG Di-LOG SL104 Operating Manual SL104 Operating Manual ...measurably better ...measurably better Contents Page I. Certificate of conformity As the manufacturer of the instrument listed below, we declare under our I. Certificate of Conformity sole responsibility that the product: II. Safety III. -
Page 3: Safety
• Remove the battery if the meter is to be stored for long periods. The SL104 meets the standard (2012/19/EU) WEEE Directive in the • Do not expose the tester to extreme temperatures or high humidity. UK & EU. This marking indicates that this product should not be disposed •... -
Page 4: Meter Description & Lcd Display
Di-LOG Di-LOG SL104 Operating Manual SL104 Operating Manual ...measurably better ...measurably better IV. Description: SL104 Specification V. Meter Description & LCD Display Symbols Function keys for irradiance and temperature measurement Celsius and Fahrenheit Switch Button On/Off Button Photovoltaic Irradiance Sensor... -
Page 5: Operation
1. Operation 2.2 .Solar Irradiance & Surface Temperature with external probe • Briefly press the power button of the SL104. The instrument is set by • Follow the steps highlighted in section 1. The SL104 is default set to defaul to measure Irradiance and Surface Temperature in °C. -
Page 6: Tilt Angle And Magnetic Compass Measurement
LCD screen. Note: It is recommended that the Instrument is calibrated to a flat-level surface before use and at regular intervals. Place the SL104 on a flat-level surface, 4. Data Hold and Backlight one that is known to be 0⁰, a completely flat-level surface can be verified... -
Page 7: Geomagnetic Compass Calibration
Damage due to dropping, Restart the SL104 by pressing the on/off button (section 1), once the abuse or misuse are not covered by the warranty. instrument has restarted, press and hold the compass inclinometer button until the screen displays “444444”. - Page 8 Di-LOG Di-LOG SL104 Operating Manual SL104 Operating Manual ...measurably better ...measurably better Notes - Please use this area to make notes. Notes - Please use this area to make notes.
