Summary of Contents for Cypress CP-262DPC

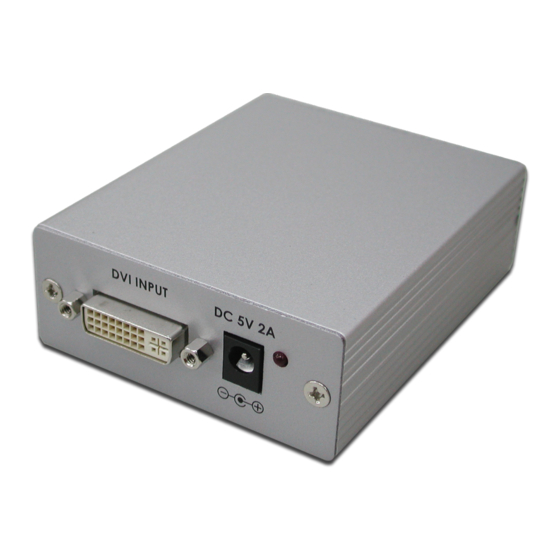

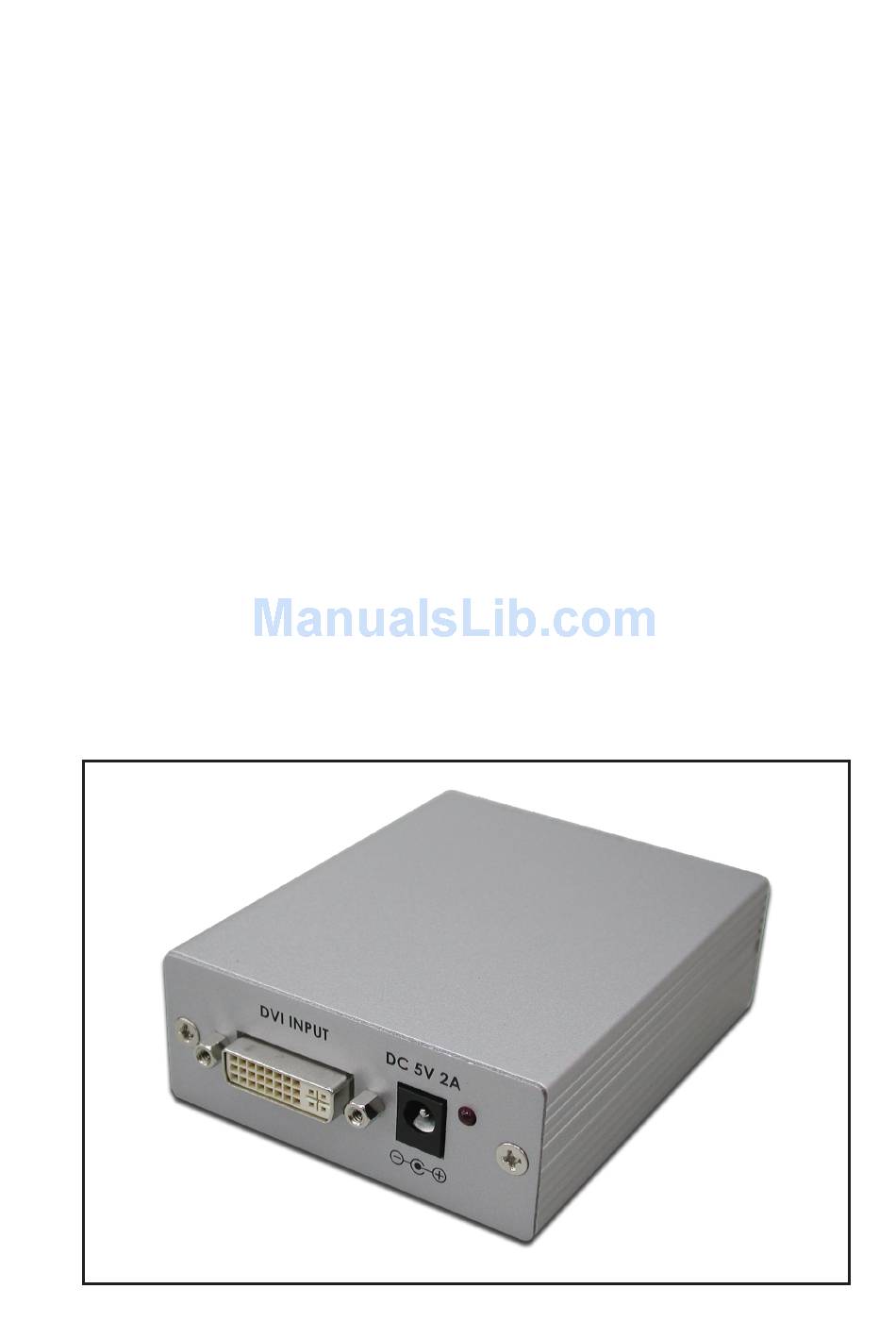

- Page 1 DVI to PC Format Converter The CP-262DPC converts digital DVI to analog PC/RGB. It enables you to connect your new DVI sources to the older analog PC monitor, Projector or TV. Operation Manual CP-262DPC...
-
Page 2: Operation Controls And Functions
HD-15 VGA input of the tranditional monitors. Its high bandwith capability supports a wide range of PC and HDTV resolutions. This package includes - One CP-262DPC unit. - One 5V power supply adaptor. - User manual. Features: > Connects computers with DVI-D connectors to analog VGA monitors or projectors. -
Page 3: Specifications
Specifications * Input: DVI-I connector. * Input signal: Digital RGB data bitstream. * Compliant with DVI Rev1.0 * Output: Analog HD-15 ( RGBHV ) * Output signal: RGB: 0.7 Vp-p 75 ohm H+V: 3 to 5 Vp-p * Operation frequency: up to 165MHz * Input/Output resolution: PC：VGA@60、VGA@72、VGA@75、VGA@85 SVGA@60、SVGA@72、SVGA@75、SVGA@85... -
Page 4: Connection And Installation
B. Analog VGA output Pin Assignments when output switch set to RGB. Part No. Pin No. Description (PC out) GREN BLUE GND (DDC-RETURN) GND-RED GND-GREEN DB15HD GND-BLUE GND-SYNC DDC-DATA H-SYNC V-SYNC DDC-CLOCK Connection and Installation VGA Monitor DVI to VGA DVI Computer Format Converter VGACable...
