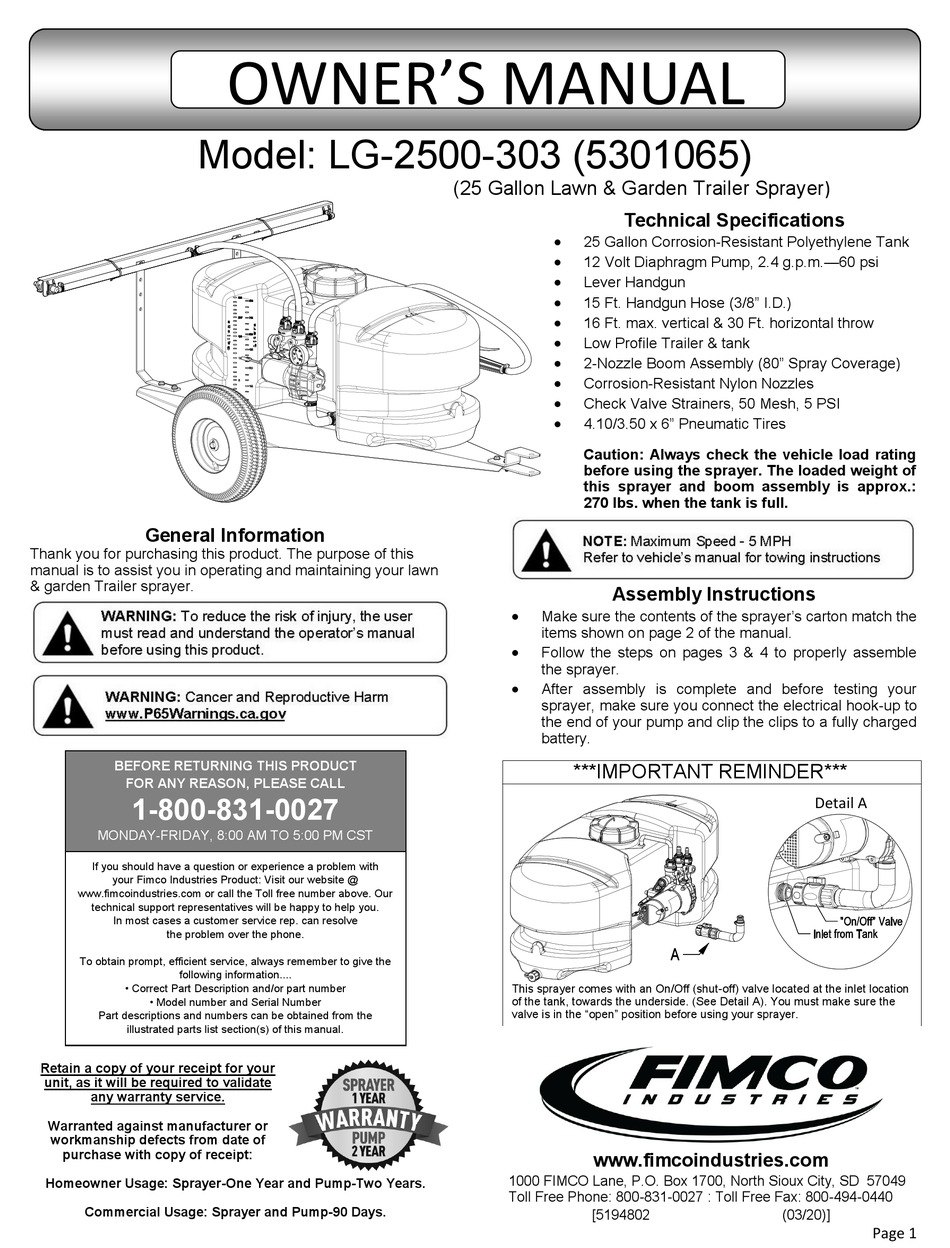

Fimco LG-2500-303 Owner's Manual

Model: LG-2500-303 (5301065)
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden Trailer sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.
OWNER'S MANUAL
(25 Gallon Lawn & Garden Trailer Sprayer)
Technical Specifications

25 Gallon Corrosion-Resistant Polyethylene Tank

12 Volt Diaphragm Pump, 2.4 g.p.m.—60 psi

Lever Handgun

15 Ft. Handgun Hose (3/8" I.D.)

16 Ft. max. vertical & 30 Ft. horizontal throw

Low Profile Trailer & tank

2-Nozzle Boom Assembly (80" Spray Coverage)

Corrosion-Resistant Nylon Nozzles

Check Valve Strainers, 50 Mesh, 5 PSI

4.10/3.50 x 6" Pneumatic Tires
Caution: Always check the vehicle load rating
before using the sprayer. The loaded weight of
this sprayer and boom assembly is approx.:
270 lbs. when the tank is full.
Assembly Instructions

Make sure the contents of the sprayer's carton match the
items shown on page 2 of the manual.

Follow the steps on pages 3 & 4 to properly assemble
the sprayer.

After assembly is complete and before testing your
sprayer, make sure you connect the electrical hook-up to
the end of your pump and clip the clips to a fully charged
battery.
***IMPORTANT REMINDER***
This sprayer comes with an On/Off (shut-off) valve located at the inlet location
of the tank, towards the underside. (See Detail A). You must make sure the
valve is in the "open" position before using your sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5194802
Detail A
(03/20)]
Page 1
