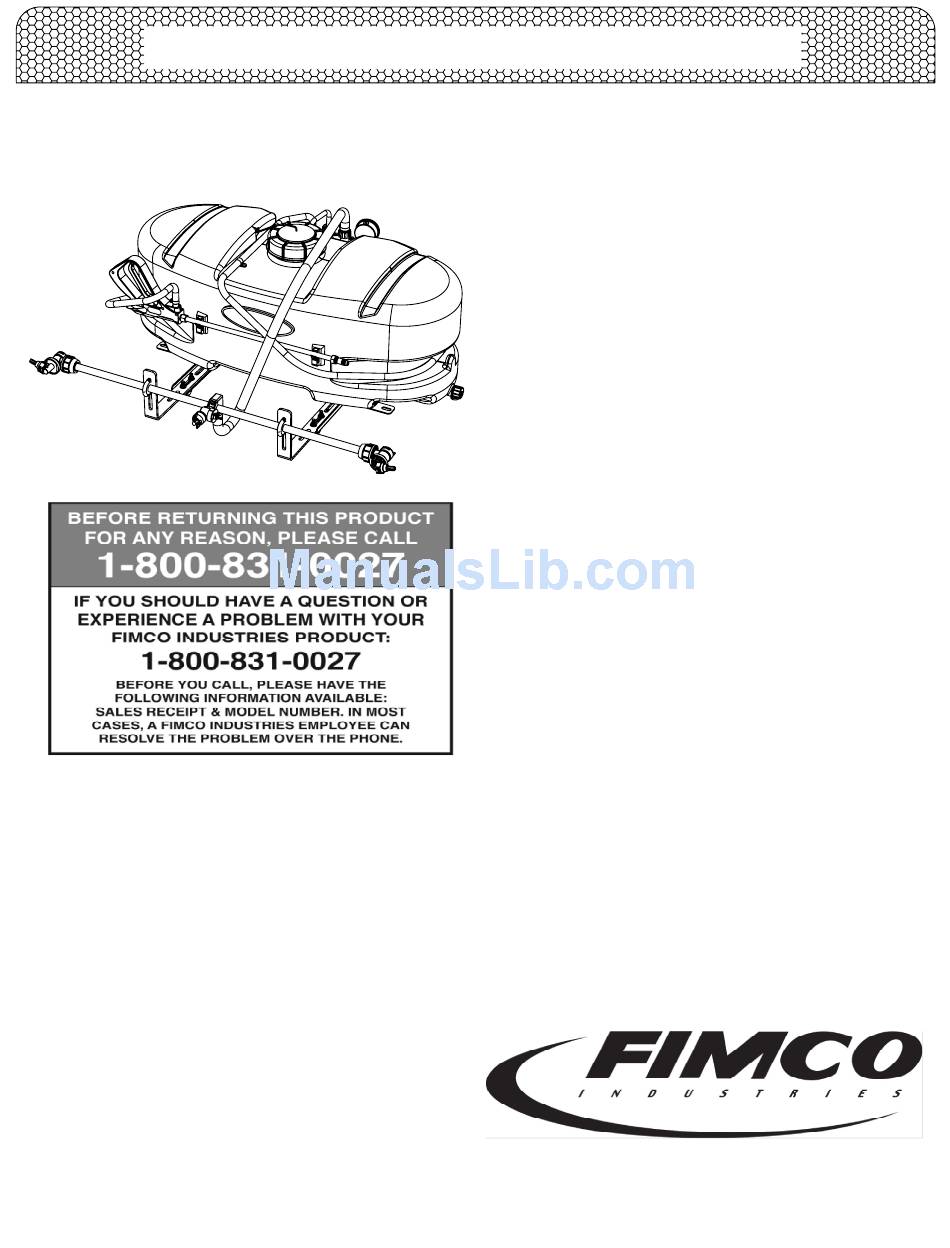

Fimco LG-3025 Owner's Manual

Owner's Manual

General Information

Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden/ATV sprayer. Please read it carefully, as it furnishes
information which will help you achieve years of trouble-free
operation.
Warranty/Parts/Service
For home usage, products are warranted for one year from date
of purchase against manufacturer or workmanship defects.
Commercial users have a 90 day warranty.
Your authorized dealer is the best source of replacement parts
and service. To obtain prompt, efficient service, always
remember to give the following information...
- Correct Part Description and/or part number.
- Model number/Serial number of your sprayer.
Part descriptions and part numbers can be obtained from the
illustrated parts list section(s) of this manual.
Whenever you need parts or repair service, contact your
distributor/dealer first. For warranty work, always take your
original sales slip, or other evidence of purchase date, to your
distributor/dealer.
Model: LG-3025 (5301267)
(25 Gallon Lawn & Garden/ATV Boomless Sprayer)

Technical Specifications

• 25 Gal. Corrosion-Resistant Polyethylene Tank
• 12 Volt Diaphragm Pump, 3.8 g.p.m. - 45 p.s.i.
• Deluxe Pistol-Grip Handgun w/15 Ft. Handgun Hose
• 26 Ft. max. vertical throw, 43 Ft. max. horizontal throw
• Pressure Gauge
• Adjustable Pressure
• 30 Foot Spray Coverage w/Boom
• Corrosion-Resistant Nozzles
Caution: Always check the vehicle load rating before
using this sprayer. The loaded weight of the sprayer
and boom assembly is about 290 lbs. when the tank is
full. Care must be taken not to tip the vehicle over
backwards, especially when starting or accelerating.
Assembly
1. Install the tank mounting plates to the tank as shown in
the exploded view drawing.
2. Place the tank with the brackets attached to your ATV
carrier rack. Attach the mounting brackets to the cross
members of the rack, using the hardware supplied. (See
exploded view drawing)
3. Join the boom mounting brackets to the tank mounting
brackets with the hardware shown.
4. Attach the boom to the boom mounting brackets with the
(2) u-bolts and (4) whiz locknuts. Make sure the u-bolts are
positioned within the grooves of the grommets on the boom
tube.
NOTE: The purpose of these grommets is to prevent
metal-to-metal contact between the u-bolts, boom tube,
and boom mounting brackets.
The grommets will 'compress' as you tighten the whiz
locknuts onto the u-bolts. Tighten just so that the boom tube
will NOT rotate within the grommets. Alternate the tightening
of the locknuts to provide even pressure on the grommet.
** DO NOT OVER-TIGHTEN the whiz locknuts, as this
may cause the boom tube to flatten slightly!
5. Thread the pressure gauge into the reducing bushing at
the far end of the manifold assembly. Use a good grade of
thread sealant here, to insure no leaks.
6. Connect the wiring harness to the rear of the pump. Clip
the alligator clip ends to a fully charged 12 Volt battery. Red
wire to the 'Hot' connection, and black wire to the 'Ground'.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
Form No. 1328 [5004821 (11/12)] Printed in the U.S.A.
