Fimco LG-60-3PT-WP-309 Owner's Manual

Caution: When fully filled with
water, this sprayer will weigh
approx. 715 lbs.. Consult the
owner's manual for your vehicle
to verify that you are within it's
load carrying capacity.
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
3-Point sprayer.
Retain a copy of your receipt for your unit,
as it will be required to validate any warranty service
Products are warranted against manufacturer or workmanship
defects for one year from date of purchase for home owner
usage and 90 days for commercial usage.
For technical assistance, visit our website @
www.fimcoindustries.com or call: TOLL FREE @ 1-800-831-0027
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...

Correct Part Description and/or part number

Model #/Serial # of your sprayer
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.

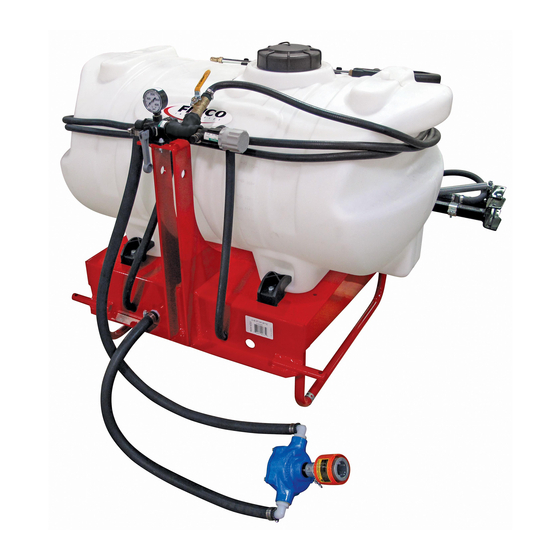

OWNER'S MANUAL
Category I
LG-60-3PT-WP-309
(5301805)
(60 Gallon 3 Point Sprayer w/Pump,
Coupler & 7-Nozzle Boom Assembly)
Information About the Sprayer
Roller pumps are positive displacement pumps, which means
that the entire solution being pumped must go somewhere or
the pump will break. In this roller pumping system, solution is
drawn from the tank and forced to a planned source, such as
boom nozzles or handgun. The pressure is controlled by a
pressure relief valve, which is a spring-loaded device that
controls the amount of fluid bypassed (recirculated) to the
tank. The gray handle is to be tightened to increase pressure
and loosened to decrease pressure.
The 'directo-valve' is the on/off control which allows the oper-
ator to manually control the solution going to the boom.
Assembly Instructions
Most of the sprayer has been assembled at the factory.
Join the center boom member to the carrier frame with the (2)
U-bolts and (4) whiz nuts provided. See exploded view later
in this manual for reference.
Attach the boom feeder hose to the boom after routing it
through the underside of the carrier frame as needed. Secure
in place with a hose clamp provided.
Poly hose fittings (5010209) are included to be joined to the
pump. A torque chain, 'S'-Hook and hardware are also in-
cluded for the pump. The pump IS included with this unit. It is
intended for this pump to be mounted directly to the tractor
PTO.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5008060
Model:
(11/18)]
Page 1
