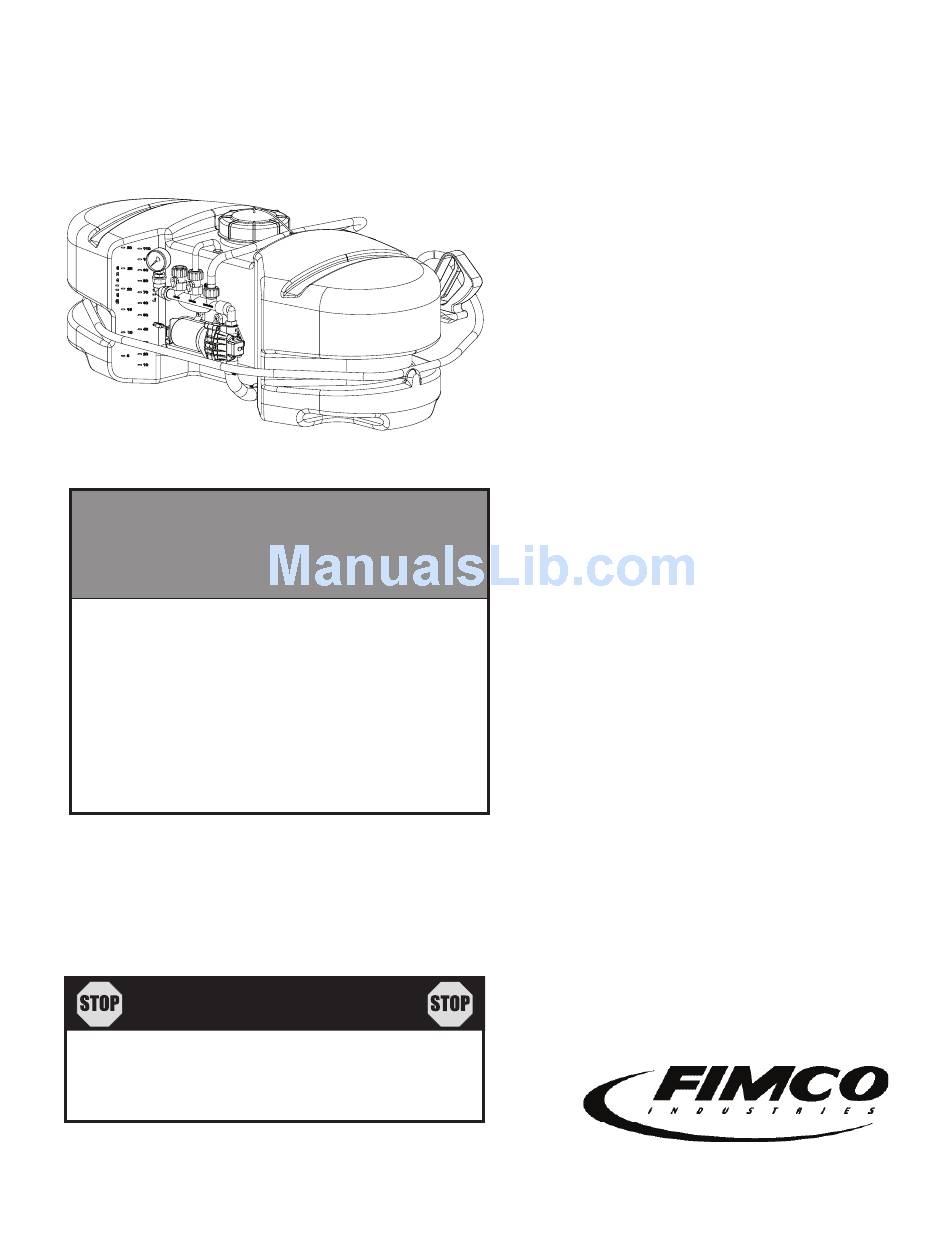

Fimco LG-30-SM Assembly / Operation Instructions / Parts

ASSEMBLY / OPERATION INSTRUCTIONS / PARTS
BEFORE RETuRNING THIS PRODuCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
IF YOu SHOuLD HAVE A QuESTION OR
EXPERIENCE A PROBLEM wITH YOuR
FIMCO INDuSTRIES PRODuCT:
1-800-831-0027
BEFORE YOu CALL, PLEASE HAVE THE
FOLLOwING INFORMATION AVAILABLE:
SALES RECEIPT & MODEL NuMBER. IN MOST
CASES, A FIMCO INDuSTRIES EMPLOYEE CAN
RESOLVE THE PROBLEM OVER THE PHONE.
GENERAL INFORMATION
The purpose of this manual is to assist you in operating your
sprayer. Please read it carefully as it furnishes information
which will help you operate and maintain your sprayer.
wARNING
DO NOT uSE PuMP IN AN EXPLOSIVE
ENVIRONMENT. DO NOT uSE TO PuMP
FLAMMABLE FLuIDS, GASOLINE,
KEROSENE FuEL, OIL, ETC.
wARRANTY / PARTS / SERVICE
Products are warranted for one year from date of purchase
against manufacturer or workmanship defects.
5301562

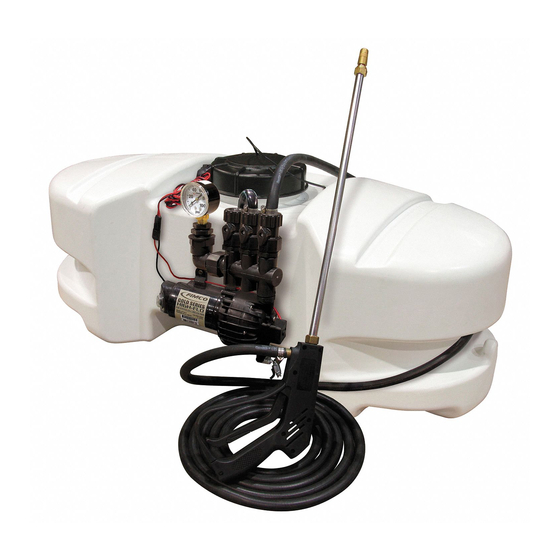

MODEL NO. LG-30-SM
30 Gallon Spot Sprayer
Your authorized dealer is the best source of replacement
parts and service. To obtain prompt, efficient service, always
remember to give the following information.
1. Correct part description and part number.
2. Model number of your sprayer.
3. Serial number of your sprayer.
Part number and descriptions can be obtained from the
illustrated parts list section of this manual. Whenever you
need parts or repair service, contact your distributor / dealer
first. For warranty work always take your original sales
slip, or other evidence of purchase date, to your distributor
/ dealer.
• 30 Gallon Polyethylene Tank
• 12 Volt Diaphragm Pump - 2.1 G.P.M.
• 15 Foot Handgun Hose
• Pistol Grip Handgun
• Suction Line Filter
The sprayer is partially assembled at the factory. Follow the
instructions below to complete the assembly of this unit.
1. Thread the gauge into Item 17.8. Use a good grade of
thread sealant here to insure no leaks.
2. Connect the wiring harness to the wires coming out of the
pump. Connect the wiring from the wiring assembly to the 12
Volt power source of the vehicle. The red wire of the 2-wire
set must be connected to the positive (+) post on the battery
or the "hot" connection on a switch or to the ammeter. The
brown wire may be grounded or connected to the negative
(-) post on the battery.
3. Remove the drain plug assembly from the parts bag and
thread it onto the drain bung located at the lower rear end
of the tank.
1000 FIMCO LANE • P.O. BOX 1700 • NO. SIOUX CITY, SD 57049
TOLL FREE: 800-831-0027 • TOLL FREE FAX: 800-494-0440
Form No. 1308
TECHNICAL SPECIFICATIONS
ASSEMBLY
w w w . F I M C O I N D u S T R I E S . C O M
(5004771 3/08)
Page 1
Printed In U.S.A.
