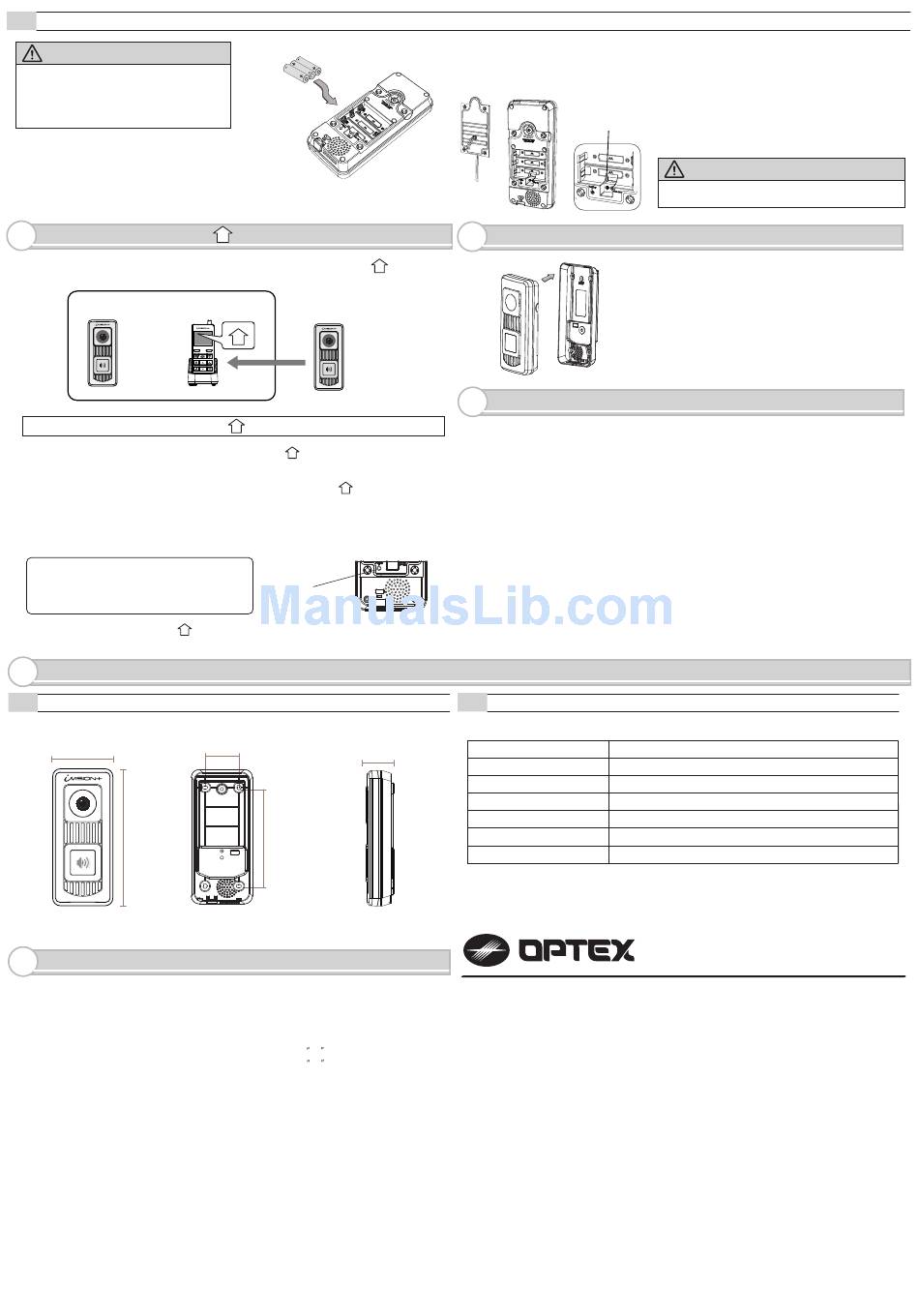

4-3
Powering the Unit
CAUTION
Old and new batteries may not be
mixed. Do not use lithium batteries
for IVP-DU. Leakage or possible
explosion can occur.
Insert 3 x AA alkaline batteries.
Please ensure to match the correct +/- polarity as shown.
5.
PAIRING WITH IVP-HU
NOTE: An additional Device DU, HU and GU must be paired to HU
IVP-DU
IVP-HU
Exsiting
iVISION+
System
How to add an additional IVP-DU to HU 1
(1) Press pairing button twice in the back of IVP-HU
The unit will be in "PAIRING MODE".
(2) Proceed to "SCAN" by pressing "Left function key". IVP-HU
for other devices for 60 seconds.
(3) Press IVP-DU push button once and hold paring button located at the bottom
of battery compartment until it makes a keeping sound.
Note: if not purchased in a bundle
package, IVP-DU is in the paring mode
when powered on.
Once IVP-DU is paired, HU
1
8.
SPECIFICATION
8-1
Dimensions
70mm / 2.76"
162mm / 6.38"
9.
WARRANTY
1. This product is under a warranty for a normal usage for 18 months from the date
of manufacturing. The date of manufacturing can be identified from a LOT number
indicated on a label placed in a back of IVP-DU.
LOT: YYWWZ (e.g. LOT 1350Z)
YY indicates last two digits of the year manufactured (e.g. 13 = Year 2013)
WW indicates Xth week of the year manufactured
2. The warranty may not be applicable when any of following circumstances is found.
- Mechanical or electrical modification is made to the product and the good's
appearance indicates an alterations or a significant damage.
- The product is already been diagnosed by someone other than the manufacturer.
- Product malfunction is resulting from an improper usage, an accident,
natural disaster or any environmental event.
- Please call our technical assistance before arranging a return.
1
Additional
IVP-DU
1
.
1
starts scanning
1
Pairing Button
shows "DU# CONNECTED".
40mm / 1.57"
40mm / 1.57"
120mm / 4.72"
(e.g. 50 = 50th week)
The Camera Door Unit may also be powered from an external power source.
If available, connect the unit directly to the existing AC/DC 10-24V doorbell power
supply or, alternatively, an AC/DC 10-24V third party's external power pack may be used.
6.
MOUNTING THE UNIT
1
as follows:
7.
OPERATION CHECK
(1) Press "Push Button" on the IVP-DU and observe IVP-HU with a visual image.
(2) Carry IVP-HU away from the IVP-DU and Press "Answer" on the IVP-HU.
(3) Have another person speak to the IVP-DU and listen to the sound on IVP-HU.
(4) Speak back from the IVP-HU and listen from the IVP-DU.
If the IVP-DU is powered from the external power source, the Push Button glows
on the IVP-DU.
NOTE: Due to characteristics of 2.4 GHz radio waves, different locations in a home
may vary the performance of transmissions and receptions. Adjust positions of IVP-HU
to places where performance is desirable. If a distance between IVP-DU and IVP-HU
is close, two units may cause an howling effect when communication is in place.
8-2
Specification Table
MODEL NAME: OPTEX iVISION+ (IVP-DU) Door Camera Unit
Operating Temperature
Operating Humidity
Dust/Water Protection
Radiowave Frequency
Camera/Lighting Unit
Power
Battery Life Expectancy
OPTEX INC. (U.S.)
URL: http://www.optexamerica.com/
OPTEX DO BRASIL LTDA. (Brazil)
URL: http://www.optex.net/br/es/sec/
OPTEX (EUROPE) LTD. / EMEA HQ (U.K.)
URL: http://www.optexeurope.com/
Power
Pass the bell wire or the wire from a power
input
pack through the mounting plate before
terminal
fixing the plate to the wall. Connect the wire
to the Power input terminal.
WARNING
External power must not be used with batteries.
(1) Fix a Wall Mounting Base to a desired location
using four screws and anchors included in a package.
(2) On to the secured mounting base, hook upper rim
of the main unit and then, press in the entire unit.
(3) Tighten a screw at the bottom to secure the unit.
- 20 to 50 degC (-4 to 120 degF)
< 90% RH (no condensation)
IPX4 Splash Proof (Water Drain Structure)
2.4 GHz
Color vision / IR lighting LED
Battery (3 AA Alkaline) or AC/DC 10-24V 3W (max)
12 month *
* Based on 3 activations (approx. 10sec each) per day
OPTEX CO., LTD. (JAPAN)
URL: http://www.optex.net/
5921593
REV 1.03
