User Manual
USER GUIDE

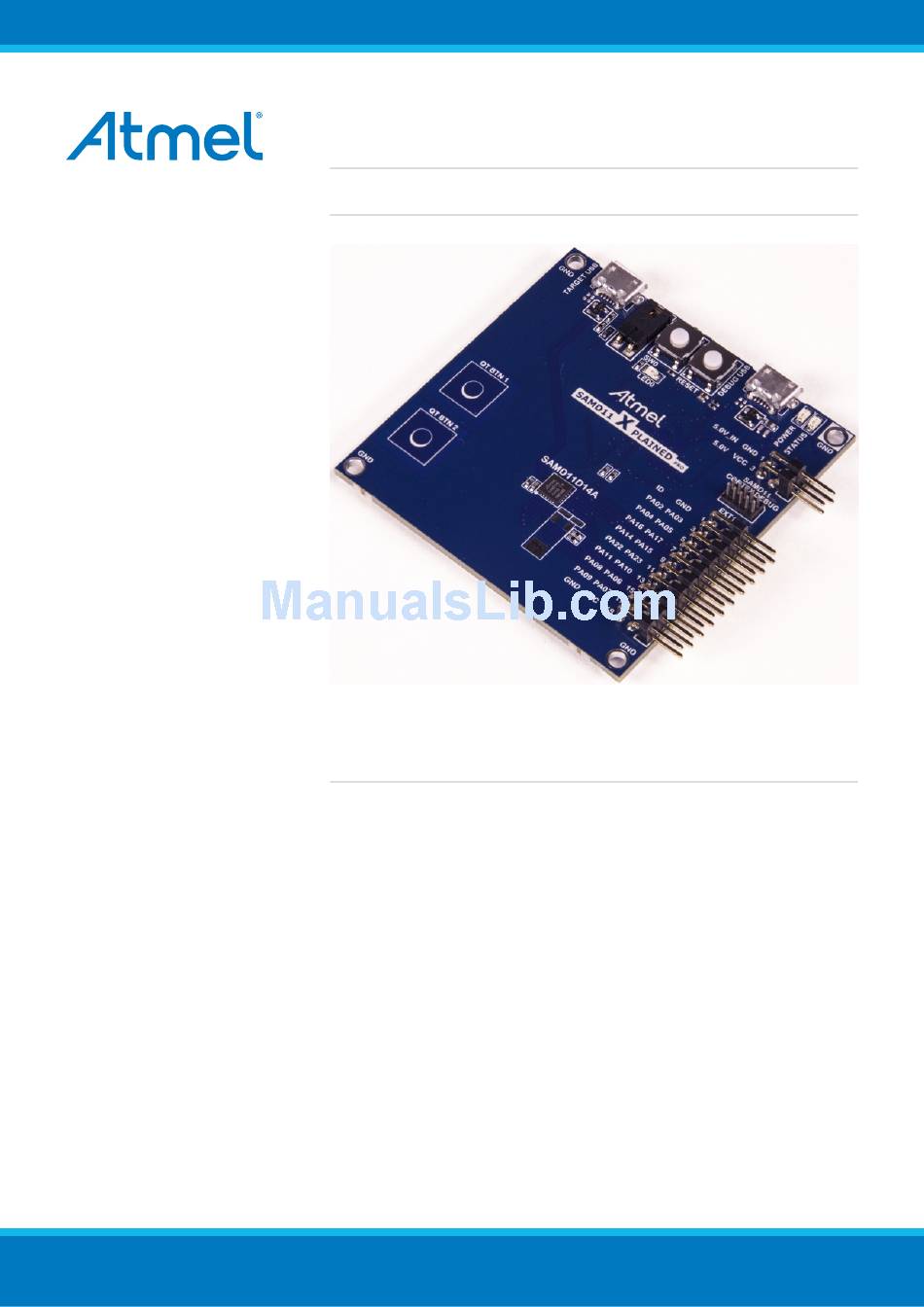

Atmel SAM D11 Xplained Pro
Preface
®
The Atmel
SAM D11 Xplained Pro evaluation kit is a hardware platform to
evaluate the ATSAMD11D14A microcontroller.
Supported by the Atmel Studio integrated development platform, the kit provides
easy access to the features of the Atmel ATSAMD11D14A and explains how to
integrate the device in a custom design.
The Xplained Pro MCU series evaluation kits include an on-board Embedded
Debugger, and no external tools are necessary to program or debug the
ATSAMD11D14A.
The Xplained Pro extension kits offers additional peripherals to extend the
features of the board and ease the development of custom designs.
42349A-MCU-01/2015
Advertisement
Table of Contents
Related Manuals for Atmel SAM D11 Xplained Pro
Summary of Contents for Atmel SAM D11 Xplained Pro
-
Page 1: Preface
ATSAMD11D14A microcontroller. Supported by the Atmel Studio integrated development platform, the kit provides easy access to the features of the Atmel ATSAMD11D14A and explains how to integrate the device in a custom design. The Xplained Pro MCU series evaluation kits include an on-board Embedded Debugger, and no external tools are necessary to program or debug the ATSAMD11D14A. -
Page 2: Table Of Contents
5. Hardware Revision History and Known Issues ..... 13 5.1. Identifying Product ID and Revision ......... 13 5.2. Revision 3 ................13 6. Document Revision History ........... 14 7. Evaluation Board/Kit Important Notice ........15 Atmel SAM D11 Xplained Pro [USER GUIDE] 42349A-MCU-01/2015... -
Page 3: Introduction
Two QTouch buttons Kit Overview The Atmel SAM D11 Xplained Pro evaluation kit is a hardware platform to evaluate the Atmel ATSAMD11D14A. The kit offers a set of features that enables the ATSAMD11D14A user to get started using the ATSAMD11D14A peripherals right away and to get an understanding of how to integrate the device in their own design. - Page 4 Figure 1-1. SAM D11 Xplained Pro Evaluation Kit Overview Atmel SAM D11 Xplained Pro [USER GUIDE] 42349A-MCU-01/2015...
-
Page 5: Getting Started
● Connect a Micro-B cable to the DEBUG USB port Connecting the Kit When connecting Atmel SAM D11 Xplained Pro to your computer for the first time, the operating system will do ® ® a driver software installation. The driver file supports both 32-bit and 64-bit versions of Microsoft Windows XP and Windows 7. -
Page 6: Xplained Pro
In conjunction with Atmel Studio, the EDBG debugger interface can program and debug the ATSAMD11D14A. On the SAM D11 Xplained Pro, the SWD interface is connected between the EDBG and the ATSAMD11D14A. The Virtual COM Port is connected to a UART port on the ATSAMD11D14A (see section “Embedded... -
Page 7: Power Supply
Power Supply The SAM D11 Xplained Pro kit can be powered either by USB or by an external power source through the 4- pin power header, marked PWR. This connector is described in “Xplained Pro Power Header” on page The available power sources and specifications are listed in Table 3-3, “Power Sources for SAM D11 Xplained... -
Page 8: Xplained Pro Power Header
Xplained Pro Power Header The power header can be used to connect external power to the SAM D11 Xplained Pro kit. The kit will automatically detect and switch to the external power if supplied. The power header can also be used as supply for external peripherals or extension boards. - Page 9 If the board is powered from a battery source it is recommended to use the PWR header. If there is a power source connected to EDBG USB, the EDBG is activated and it will consume more power. Atmel SAM D11 Xplained Pro [USER GUIDE] 42349A-MCU-01/2015...
-
Page 10: Hardware User Guide
I/O Extension Headers The SAM D11 Xplained Pro header EXT1 offers access to the I/O of the microcontroller in order to expand the board e.g. by connecting extensions to the board. This header is based on the standard extension header... -
Page 11: Mechanical Buttons
RESET PA14 4.2.3 There is one yellow LED available on the SAM D11 Xplained Pro board that can be turned on and off. The LED can be activated by driving the connected I/O line to GND. Table 4-4. LED Connections... -
Page 12: Virtual Com Port
Atmel Data Gateway Interface The Embedded Debugger features an Atmel Data Gateway Interface (DGI) by using either a SPI or I²C port. The DGI can be used to send a variety of data from the SAM D11 to the host PC. For further information on how to use the DGI interface see “Embedded Debugger”... -
Page 13: Hardware Revision History And Known Issues
Hardware Revision History and Known Issues Identifying Product ID and Revision The revision and product identifier of Xplained Pro boards can be found in two ways; through Atmel Studio or by looking at the sticker on the bottom side of the PCB. -
Page 14: Document Revision History
Document Revision History Document Date Comment revision 42349A 01/2015 Initial document release Atmel SAM D11 Xplained Pro [USER GUIDE] 42349A-MCU-01/2015... -
Page 15: Evaluation Board/Kit Important Notice
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies Atmel from all claims arising from the handling or use of the goods. Due to the open construction of the product, it is the user's responsibility to take any and all appropriate precautions with regard to electrostatic discharge and any other technical or legal concerns. - Page 16 OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and products descriptions at any time without notice.
