Initial Setup

5.1

LAN Connection

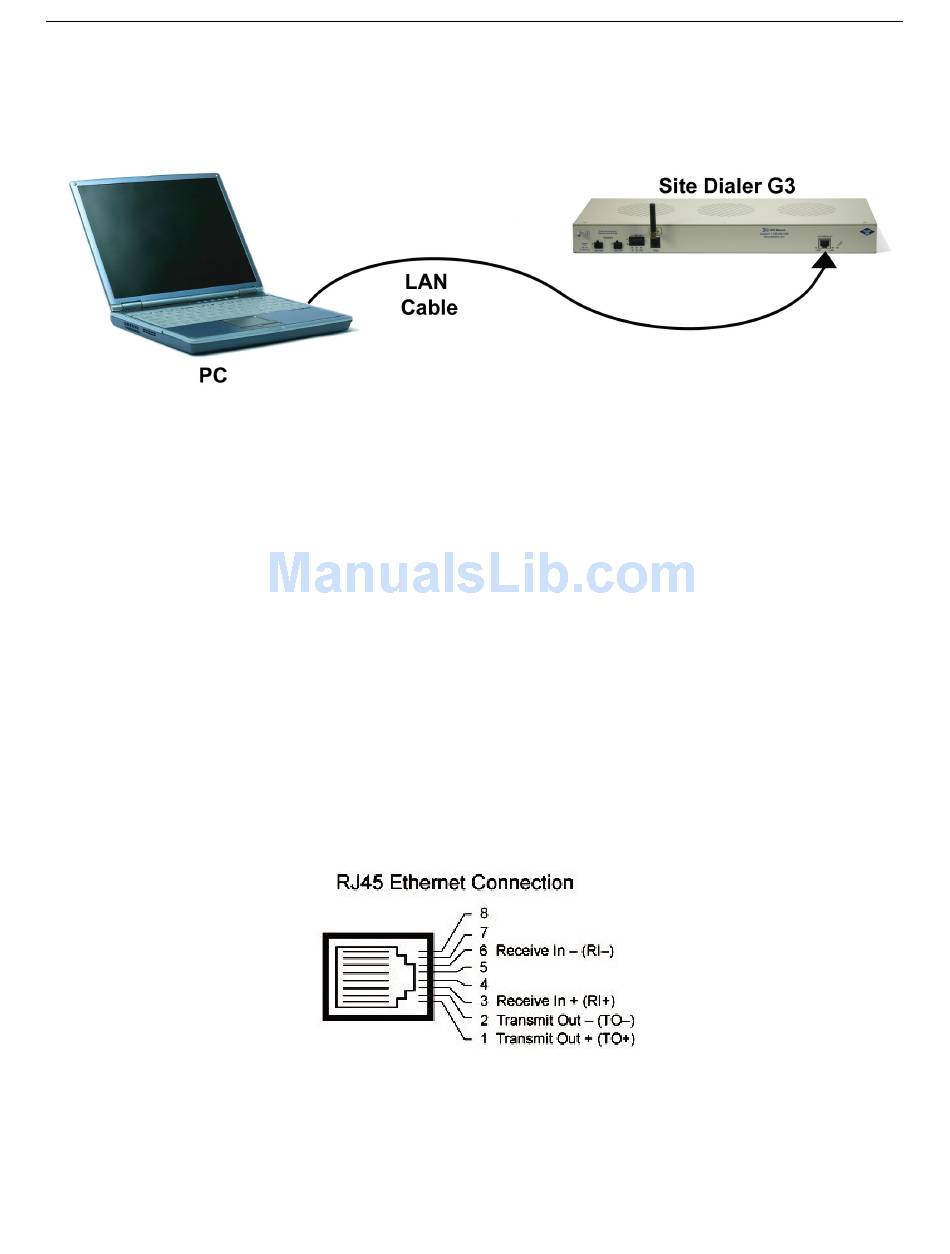

To connect to the Site Dialer G3 via LAN, all you need is the unit's IP address (Default IP address is
192.168.1.100).
If you DON'T have LAN, but DO have physical access to the Site Dialer G3, connect using a LAN crossover
cable. NOTE: Newer PCs should be able to use a standard straight-through LAN cable and handle the crossover
for you. To do this, you will temporarily change your PC's IP address and subnet mask to match the NetGuardian's
factory default IP settings. Follow these steps:
1. Get a LAN crossover cable and plug it directly into the Site Dialer G3's LAN port.
2. Look up your PC's current IP address and subnet mask, and write this information down.
3. Reset your PC's IP address to 192.168.1.200. Contact your IT department if you are unsure how to do
this.
4. Reset your PC's subnet mask to 255.255.0.0. You may have to reboot your PC to apply your changes.
5. Once the IP address and subnet mask of your computer coincide with the unit, you can access the Site
Dialer G3 via a Telnet session or via Web browser by using the unit's default IP address of 192.168.1.100.
6. Provision the Site Dialer G3 with the appropriate information, then change your computer's IP address
and subnet mask back to their original settings.
Now you're ready to do the rest of your configuration via LAN.
Ethernet port pinout
