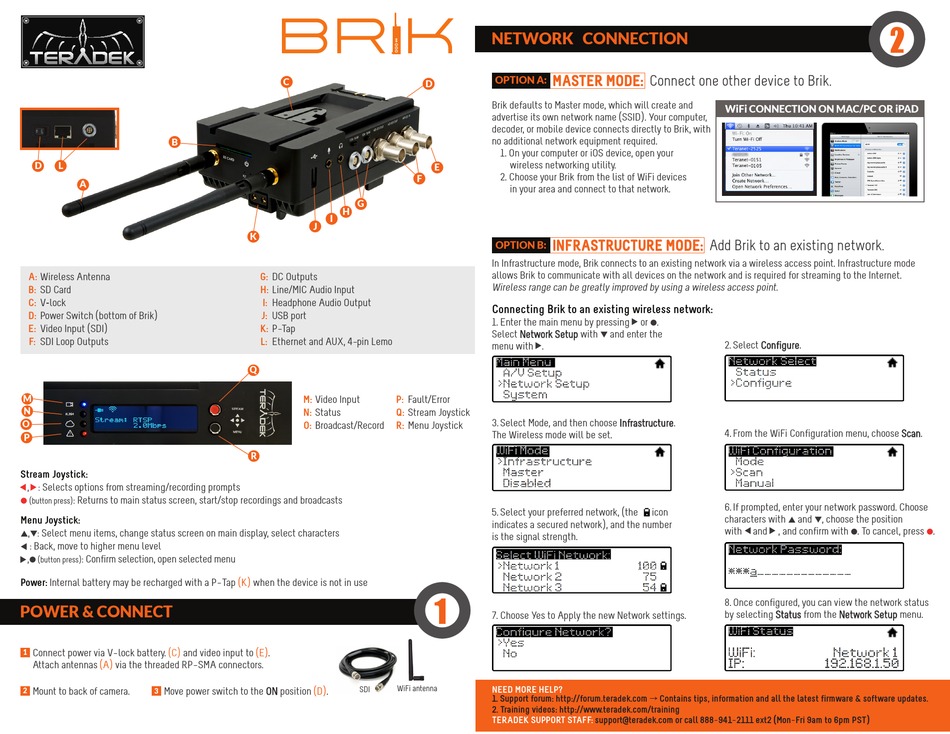

Teradek Brik Quick Start Manual

B
D L
A
A: Wireless Antenna
B: SD Card
C: V-lock
D: Power Switch (bottom of Brik)
E: Video Input (SDI)
f: SDI Loop Outputs
M
N
O
P
Stream Joystick:
, : Selects options from streaming/recording prompts
: Returns to main status screen, start/stop recordings and broadcasts
● (button press)
Menu Joystick:
, : Select menu items, change status screen on main display, select characters
▲ ▼
: Back, move to higher menu level
, : Confirm selection, open selected menu
● (button press)
Power: Internal battery may be recharged with a P−Tap
POWER & CONNECT
Connect power via V−lock battery. (C) and video input to (E).
1
Attach antennas (A) via the threaded RP−SMA connectors.
Mount to back of camera. Move power switch to the
2 3
bR k
bR k
C
F
G
H
I
J
K
G: DC Outputs
H: Line/MIC Audio Input
I: Headphone Audio Output
J: USB port
K: P−Tap
L: Ethernet and AUX, 4−pin Lemo
Q
M: Video Input P: Fault/Error
N: Status Q: Stream Joystick
O: Broadcast/Record R: Menu Joystick
R
(K) when the device is not in use
SDI WiFi antenna
ON position (D).

NETWORK CONNECTION

MASTER MODE:
OPTION A:
D
Brik defaults to Master mode, which will create and
advertise its own network name (SSID). Your computer,
decoder, or mobile device connects directly to Brik, with
no additional network equipment required.
1. On your computer or iOS device, open your
wireless networking utility.
E
2. Choose your Brik from the list of WiFi devices
in your area and connect to that network.
INfRASTRuCTuRE MODE:
OPTION B:
In Infrastructure mode, Brik connects to an existing network via a wireless access point. Infrastructure mode
Pantone 144 (BRIK)
allows Brik to communicate with all devices on the network and is required for streaming to the Internet.
Wireless range can be greatly improved by using a wireless access point.
Connecting Brik to an existing wireless network:
1. Enter the main menu by pressing or
Select Network Setup with
▼
menu with .
3. Select Mode, and then choose Infrastructure.
The Wireless mode will be set.
5. Select your preferred network, (the
indicates a secured network), and the number
is the signal strength.
1
7. Choose Yes to Apply the new Network settings.
NEED MORE HELP?
1. Support forum: http://forum.teradek.com → Contains tips, information and all the latest firmware & software updates.
2. Training videos: http://www.teradek.com/training
TERADEK SuPPORT STAff: support@teradek.com or call 888−941−2111 ext2 (Mon−fri 9am to 6pm PST)
Connect one other device to Brik.
WiFi CONNECTION ON MAC/PC OR iPAD
Add Brik to an existing network.
.
●
and enter the
2. Select Configure.
4. From the WiFi Configuration menu, choose Scan.
6. If prompted, enter your network password. Choose
icon
characters with
▲
with and , and confirm with
8. Once configured, you can view the network status
by selecting Status
2
and , choose the position
▼
. To cancel, press .
● ●
from the Network Setup menu.
