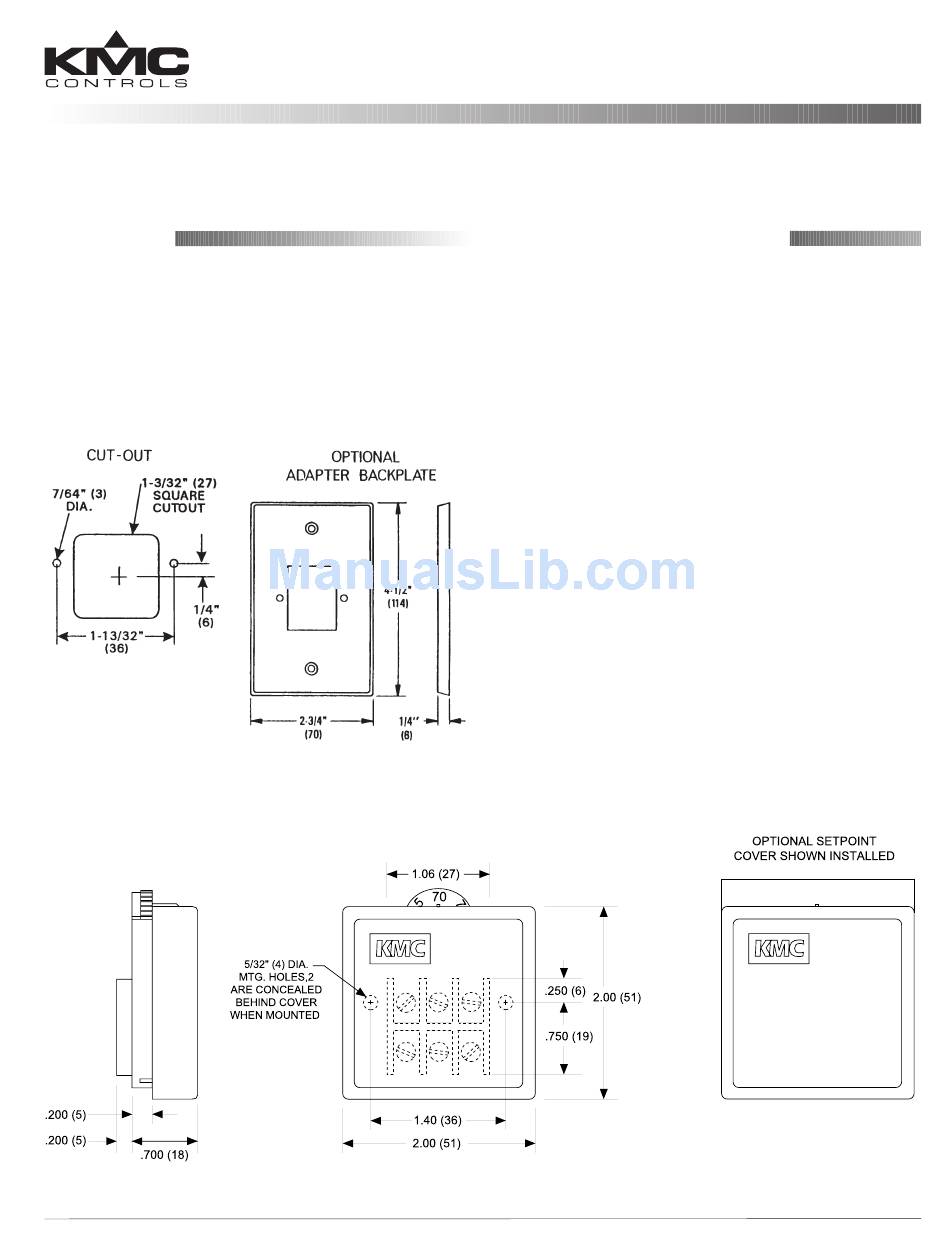

Mounting
•
Attach the optional adapter backplate (see the
Accessories section) to a standard 2" x 4" (51 x 102
mm) handy box or directly to a hollow wall.
• Remove the cover and, u
self-threading screws (included), attach the
thermostat to the backplate.
NOTE: See the data sheet for specifications.
CTE-5001/5011
Room Thermostats, Single Setpoint, DA Cooling or RA Heating
Installation Guide
sing the two 6-20
Connections and Wiring
See the basic instructions below and the diagrams
on the next page. The first sample application on
the next page illustrates basic DA cooling. The sec-
ond sample application illustrates DA cooling with
RA heating changeover.
• Terminal A: For Direct Action, jumper to
terminal B; or for Reverse Action, connect to
terminal 5 of the CEP/CSP-4xxx controller/
actuator.
• Terminal B: Connect to CEP/CSP-4xxx terminal 4.
• Terminal C: For DA, connect to CEP/CSP-4xxx
terminal 5; or for RA, jumper to thermostat
terminal B.
• Terminal D: Connect to the CEP/CSP-4xxx In
terminal 6.
• Terminal E: To override to full close, connect
to CEP/CSP-4xxx terminal 5; or to override full
open, connect to CEP/CSP-4xxx terminal 4.
• Terminal F: For optional flow readout at
thermostat test points, connect to the CEP/CSP-
4xxx Out terminal 7.
1
CTE-5001/5011
Installation Guide
