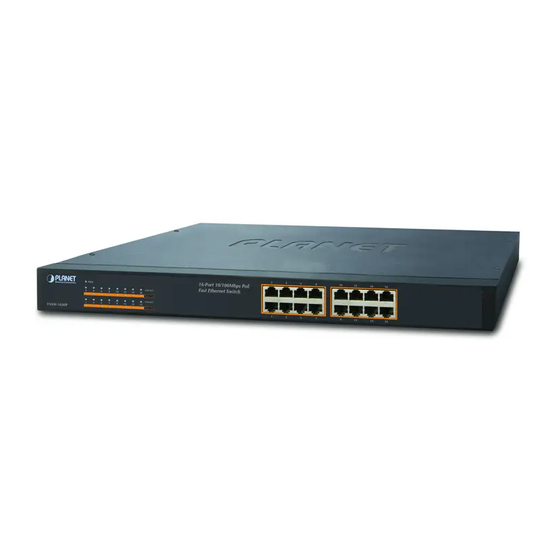

16-Port 10/100BASE-TX 802.3at PoE Switch
FNSW-1600P
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FNSW-1600P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planet FNSW-1600P

Summary of Contents for Planet FNSW-1600P

  • Page 1 16-Port 10/100BASE-TX 802.3at PoE Switch FNSW-1600P User’s Manual...

  • Page 2: Table Of Contents

    Table of Contents 1. Package Contents ..................3 2. Product Features ..................4 3. Product Specifications .................. 5 4. Hardware Description .................. 6 4.1 Front Panel ................... 6 4.2 Rear Panel .................... 6 5. Hardware Installation................... 8 5.1 Desktop Installation ................8 5.2 Rack Mounting ..................

  • Page 3: Package Contents

    1. Package Contents Thank you for purchasing PLANET 16-Port 10/100TX 802.3at PoE Switch, FNSW- 1600P. Open the box of the PoE Switch and carefully unpack it. The box should contain the following items: PoE Switch x 1 User’s Manual x 1...

  • Page 4: Product Features

    2. Product Features  Physical Port „ 16 10/100BASE-TX RJ45 ports with IEEE 802.3at PoE+ injector  Power over Ethernet „ Complies with IEEE 802.3at Power over Ethernet Plus/mid-span PSE „ Supports PoE power up to 30 watts for each PoE port „...

  • Page 5: Product Specifications

    3. Product Specifications Model FNSW-1600P Hardware Specifications Copper Ports 16 10/100BASE-TX RJ45 auto-MDI/MDI-X ports 16 ports with 802.3at/af PoE injector function with PoE Inject Port Port-1 to Port-16 System: Power(Green) LED Indicators Port 1 to Port 16: 10/100 LNK/ACT (Green)

  • Page 6: Hardware Description

    FNSW-1600P PoE In-use Figure 4-1: FNSW-1600P Switch Front Panel 4.2 Rear Panel The rear panel of the FNSW-1600P comes with an AC inlet power socket, which accepts input power from 100 to 240V AC, 50-60Hz. 100~240V AC 50 / 60Hz Figure 4-2: FNSW-1600P Switch Rear Panel 1.
  • Page 7 LED Definition System Color Function Lights to indicate the Switch has power. Green Per 10/100Mbps Port Color Function Lights to indicate the port is providing 52V DC in-line PoE-in-Use Orange power. Lights to indicate the link through that port is successfully established.

  • Page 8: Hardware Installation

    5. Hardware Installation This section describes the functionalities of the PoE switch’s components and guides you to installing it on the desktop and rack mount. Basic knowledge of networking is assumed. Please read this chapter completely before continuing. 5.1 Desktop Installation To install the Switch on the desktop, simply follow the steps below: Step1: Attach the rubber feet to the recessed areas on the bottom of the Switch, as shown in...

  • Page 9: Rack Mounting

    5.2 Rack Mounting To install the Switch in a 19-inch standard rack, follow the instructions described below. Step 1: Place your Switch on a hard flat surface, with the front panel positioned towards your front side. Step 2: Attach a rack-mount bracket to each side of the Switch with supplied screws attached to the package.
  • Page 10 Step 5: After the brackets are attached to the Switch, use suitable screws to securely attach the brackets to the rack, as shown in Figure 5-3. PW R 16 -P or t 10 /1 00 FN SW 80 2. 3a -16 00 P t Po E+ Et he rn...

  • Page 11: Troubleshooting

    Why it cannot be powered on after connecting PoE device to FNSW-1600P Solution: 1. Please check what cable type is used for connecting the FNSW-1600P (port 1 to port 16) to the other end. The cable should be an 8-wire UTP, Category 5 or above, and EIA568 cable within 100 meters.
  • Page 12 What is the power output of each PoE port? Solution: 1. Each PoE port supports 52V DC, 535mA, and a maximum power output of 30 watts, which are detected and injected by the standard of IEEE 802.3at. 2. Each PoE port supports 52V DC, 275mA, and a maximum power output of 15.4 watts, which are detected and injected by the standard of IEEE 802.3af.

  • Page 13: Customer Support

    Thank you for purchasing PLANET products. You can browse our online FAQ resource and user’s manual on PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET switch support team.
  • Page 14 *Model Number: 16-Port 10/100Base-TX PoE Fast Ethernet Switch * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan R.O.C. is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility Directive on (2014/30/EU) and Low Voltage Directive 2014/35/EU.
