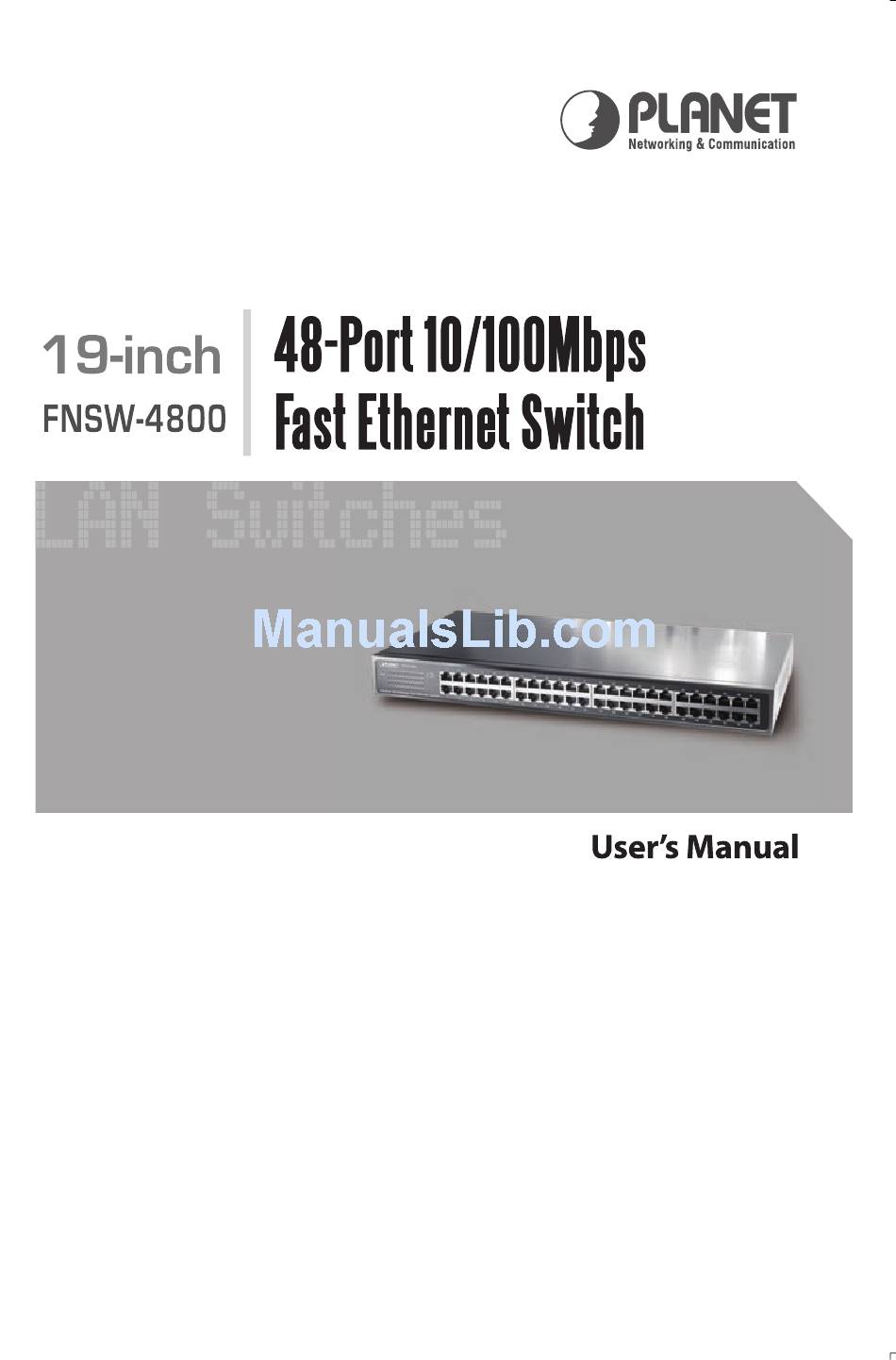

- Page 2 48-Port 10/100Mbps Fast Ethernet Switch FNSW-4800v2 User's Manual...
-
Page 3: Fcc Warning
Trademarks Copyright © PLANET Technology Corp. 2008. Contents subject to revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners. Disclaimer PLANET Technology does not warrant that the hardware will work... -
Page 4: Ce Mark Warning
Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision PLANET 48-Port 10/100Mbps Fast Ethernet Switch User's Manual For Model: FNSW-4800v2 Revision: 1.1 (January 2008) Part No: EM_FNSW48v2 (2011-A50110-001) -
Page 5: Table Of Contents
Table Of Contents 1. Introduction ... 5 1.1 Checklist ... 5 1.2 About the Switch ... 5 1.3 Features ... 6 1.4 Specification ... 7 2. Hardware Description ... 8 2.1 Front Panel ... 8 2.2 Rear Panel ... 9 2.3 Hardware Installation ... -
Page 6: Introduction
In the following section, the term “Switch” means the FNSW-4800; term of “switch” can be any third part switches 1.2 About the Switch... -
Page 7: Features
These LED indicators display the power status for the system, LNK/ACT for each 10/100Mbps port. 1.3 Features ● Comply with IEEE 802.3 and IEEE 802.3u standards for 10/100Base- ● 48-Port 10/100Mbps Fast Ethernet Switch ●... -
Page 8: Specification
1.4 Specification FNSW-4800v2 Product 48-Port 10/100Mbps Fast Ethernet Switch Hardware Specification 48 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X Ports ports Switch Processing Store-and-Forward Scheme Throughput (packet 6.6Mpps per second) Switch fabric 8.8Gbps Address Table 8K entries Share data Buffer 2.5Mbit Back pressure for half duplex, IEEE 802.3x... -
Page 9: Hardware Description
FNSW-4800, read this chapter carefully. 2.1 Front Panel The Front Panel of the FNSW-4800 Fast Ethernet Switch consists of 48x Auto-Sensing 10/100Mbps Ethernet RJ-45 Ports, the LED Indicators are also located on the front panel of the FNSW-4800. -
Page 10: Rear Panel
To install your Switch on a desktop or shelf, simply completed the following steps. 2.3.1 Desktop Installation To install a Switch on a desktop or shelf, simply completed the following steps: Step 1: Attached the rubber feet to the recessed areas on the bottom of the Switch. - Page 11 When the Switch receives power, the Power LED should remain solid Green. 2.3.2 Rack Mounting To install the Switch in a 19-inch standard rack, follow the instructions described below. Step 1: Place your Switch on a hard flat surface, with the front panel positioned towards your front side.
- Page 12 Follow the same steps to attach the second bracket to the opposite side. Step 5: After the brackets are attached to the Switch, use suitable screws to securely attach the brackets to the rack, as shown in Figure 2-4. Figure 2-4 Mounting the Switch in a Rack Step 6: Proceed with the steps 4 and steps 5 of section 2.3.1 Desktop...
-
Page 13: Switch Operation
This information comes from the learning process of Ethernet Switch. 3.2 Learning When one packet comes in from any port. The Switch will record the source address, port no. And the other related information in address table. This information will be used to decide either forwarding or filtering for future packets. -
Page 14: Auto-Negotiation
The Ethernet Switch scans the destination address from the packet- header, searches the routing table provided for the incoming port and forwards the packet, only if required. The fast forwarding makes the switch attractive for connecting servers directly to the network, thereby increasing throughput and availability. -
Page 15: Troubleshooting
4.Troubleshooting This chapter contains information to help you solve issues. If the Switch is not functioning properly, make sure the Ethernet Switch was set up according to instructions in this manual. The Link/Act LED is not lit Check the cable connection of the Switch. -
Page 16: Appendix A Networking Connection
Appendix A Networking Connection A.1 Switch‘s RJ-45 Pin Assignments 10/100Mbps, 10/100Base-TX Contact 4, 5, 7, 8 A.2 RJ-45 cable pin assignment There are 8 wires on a standard UTP/STP cable and each wire is color- coded. The following shows the pin allocation and color of straight cable... - Page 17 This page is intentionally left blank...
