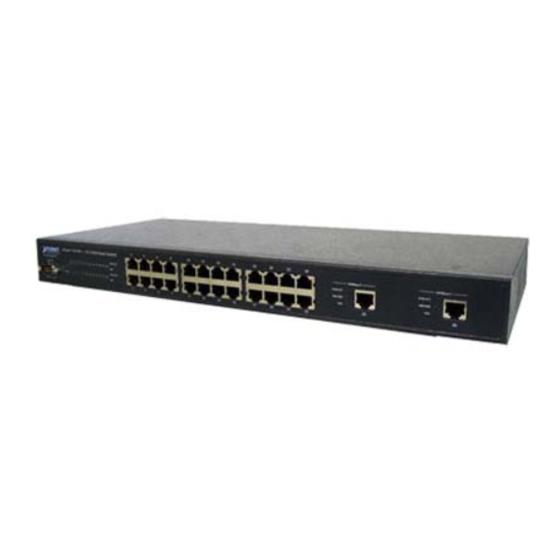

19-inch 24-port 10/100mbps + 2-port gigabit ethernet switch
Hide thumbs Also See for FGSW-2620:

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FGSW-2620 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Planet FGSW-2620

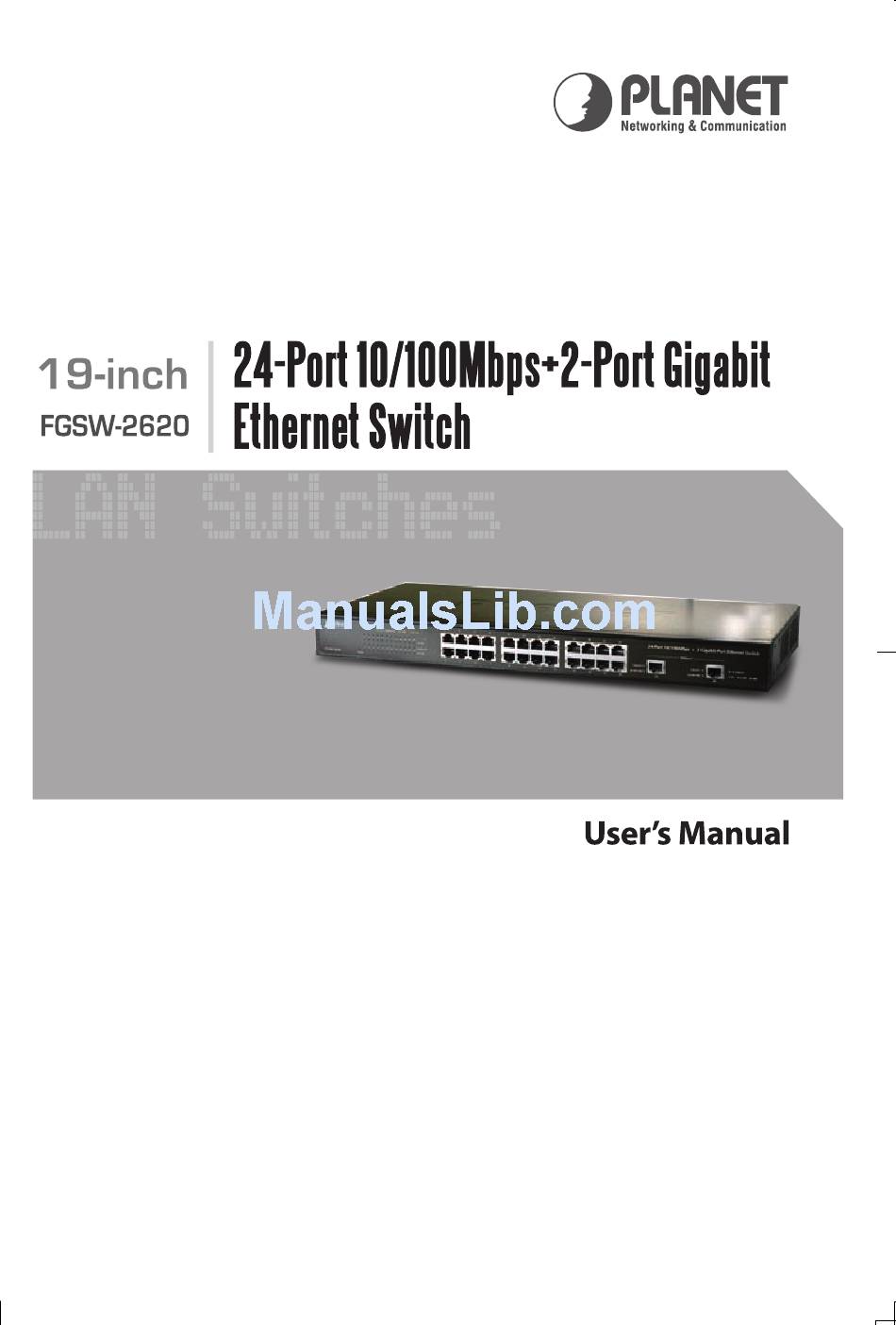

  • Page 2: Gigabit Ethernet Switch

    24-Port 10/100Mbps + 2-Port Gigabit Ethernet Switch FGSW-2620 User’s Manual...
  • Page 3 Trademarks Copyright © PLANET Technology Corp. 2007. Contents subject to revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners. Disclaimer PLANET Technology does not warrant that the hardware will work...
  • Page 4: Fcc Warning

    Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision PLANET 24-Port 10/100Mbps+ 2-Port Gigabit Ethernet Switch User's Manual FOR Model: FGSW-2620 Rev: 3.0 (October, 2007) Part No: 2010-A50060-001...
  • Page 5: Table Of Contents

    1.4 Product Specifications ... 7 2. Installation ... 8 2.1 Product Description ... 8 2.1.1 Product Overview ... 8 2.1.2 FGSW-2620 Front Panel ... 8 2.1.3 LED Indicators ... 9 2.1.4 FGSW-2620 Rear Panel ...10 2.2 Installing a FGSW-2620 ...10 2.2.1 Desktop Installation ...10...
  • Page 6: Introduction

    ● Section 4 Troubleshooting It contains troubleshooting guide of FGSW-2620. ● Appendix A It contains cable information of FGSW-2620. In the following section, the term “Switch” means the Switch, i.e. FGSW-2620; term of “switch” can be any third part switches.
  • Page 7: Product Features

    1.3 Product Features ● Comply with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard ● 24-Port 10/100Mbps Fast Ethernet ports ● 2 10/100/1000Mbps ports ● Each Switching ports support auto-negotiation-10/20, 100/200Mbps, 1000/2000Mbps supported ● Auto-MDI/MDI-X detection on each RJ-45 port ●...
  • Page 8: Product Specifications

    Power Requirement Power Consumption / Dissipation Temperature Humidity Operating: Standards Conformance Regulation Compliance Standards Compliance FGSW-2620 24 10/100Base-TX RJ-45 Auto-MDI/MDI-X ports 2 10/100/1000Mbps ports Store-and-Forward 6.54Mpps 8.8Gbps 4K entries 2.5Mbits Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex 440 x 120 x 44 mm (1U height) 1.57 kg...
  • Page 9: Installation

    Please read this chapter completely before continuing. 2.1 Product Description The PLANET FGSW-2620 provides 24 10/100Mbps Fast Ethernet ports with 2 10/100/1000Mbps ports (port 25/26). The two Gigabit ports can be 1000Base-T for 10/100/1000Mbps; the distance can be extended from 100 meters (TP).
  • Page 10: Led Indicators

    2.1.3 LED Indicators System Color Green Lights to indicate that the Switch is powered on. Per 10/100Mbps port Color Lights: to indicate the link through that port is successfully established. LNK/ACT Green Blink: indicate that the Switch is actively sending or receiving data over that port.
  • Page 11: Fgsw-2620 Rear Panel

    2.1.4 FGSW-2620 Rear Panel The rear panel of the Switch indicates an AC inlet power socket, which accepts input power from 100 to 240VAC, 50-60Hz. Figure 2-2 shows Rear panel of the Switch. Figure 2-2 Rear Panel of FGSW-2620 Power Notice: 1.
  • Page 12: Rack Mounting

    When the Switch receives power, the Power LED should remain solid Green. 2.2.2 Rack Mounting To install the Switch in a 19-inch standard rack, follow the instructions described below. Step1: Place your Switch on a hard flat surface, with the front panel...
  • Page 13 Step2: Attach a rack-mount bracket to each side of the Switch with supplied screws attached to the package. Figure 2-3 shows how to attach brackets to one side of the Switch. Figure 2-3 Attaching the brackets to the Switch Caution: You must use the screws supplied with the mounting brackets.
  • Page 14 Step5: After the brackets are attached to the Switch, use suitable screws to securely attach the brackets to the rack, as shown in figure 2-4. Figure 2-4 Mounting the Switch in a Rack Step6: Proceed with the steps 4 and steps 5 of section 2.2.1 Desk- top Installation to connect the network cabling and supply power to your Switch.
  • Page 15: Switch Operation

    This information comes from the learning process of Ethernet Switch. 3.2 Learning When one packet comes in from any port, the Switch will record the source address, port no. And the other related information in address table. This information will be used to decide either forwarding or filtering for future packets.
  • Page 16: Auto-Negotiation

    Therefore, no error packets occurrence, it is the best choice when a network needs efficiency and stability. The Ethernet Switch scans the destination address from the packet- header, searches the routing table provided for the incoming port and forwards the packet, only if required. The fast forwarding makes the switch attractive for connecting servers directly to the network, thereby increasing throughput and availability.
  • Page 17 If attached device is: • 10Mbps, no auto-negotiation • 10Mbps, with auto-negotiation • 100Mbps, no auto-negotiation • 100Mbps, with auto- negotiation 100Base-TX port will set to: 10Mbps 10/20Mbps (10Base-T/Full-Duplex) 100Mbps 100/200Mbps (100Base-TX/Full- Duplex)
  • Page 18: Troubleshooting

    Solution: Check the cable connection of the FGSW-2620. Performance is bad Solution: Check the speed duplex mode of the partner device. The FGSW-2620 is run at Auto-negotiation mode and if the partner is set to half duplex, then the performance will be poor.
  • Page 19: Appendix A Networking Connection

    Appendix A Networking Connection A.1 Switch's RJ-45 Pin Assignments 1000Mbps, 1000Base T Contact 10/100Mbps, 10/100Base-TX RJ-45 Connector pin assignment Contact Media Dependant Tx + (transmit) Tx - (transmit) Rx + (receive) 4, 5 Rx - (receive) 7, 8 BI_DA+ BI_DA-...
  • Page 20: Cable Pin Assignments

    A.2 RJ-45 cable Pin Assignments The standard RJ-45 receptacle/connector There are 8 wires on a standard UTP/STP cable and each wire is color- coded. The following shows the pin allocation and color of straight cable and crossover cable connection: Figure A-1: Straight-Through and Crossover Cable Please make sure your connected cables are with same pin assignment and color as above picture before deploying the cables into your network.
  • Page 21 This page is intentionally left blank...
