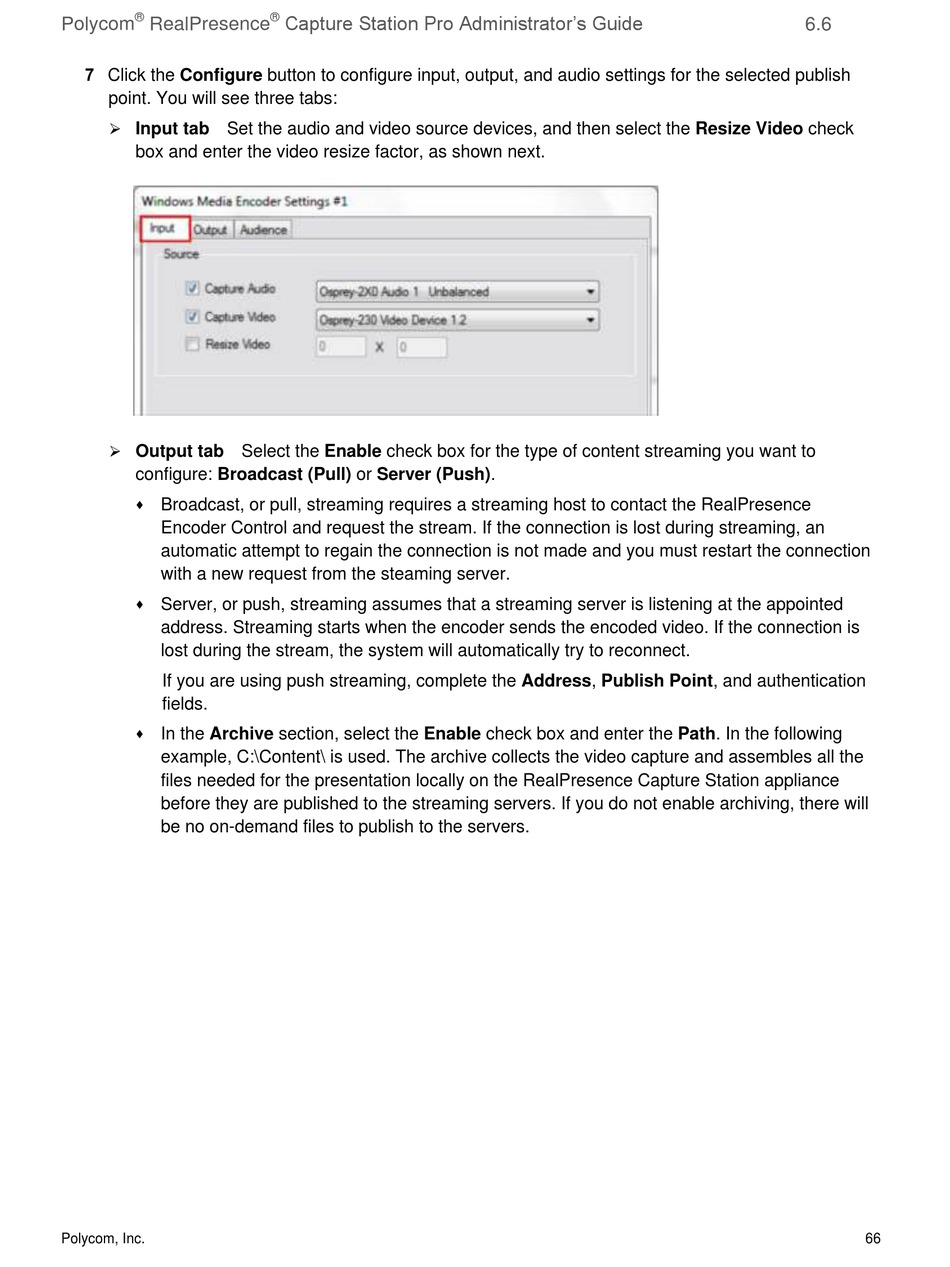

7 Click the Configure button to configure input, output, and audio settings for the selected publish
point. You will see three tabs:

Input tab Set the audio and video source devices, and then select the Resize Video check
box and enter the video resize factor, as shown next.

Output tab Select the Enable check box for the type of content streaming you want to
configure: Broadcast (Pull) or Server (Push).
 Broadcast, or pull, streaming requires a streaming host to contact the RealPresence
Encoder Control and request the stream. If the connection is lost during streaming, an
automatic attempt to regain the connection is not made and you must restart the connection
with a new request from the steaming server.

Server, or push, streaming assumes that a streaming server is listening at the appointed
address. Streaming starts when the encoder sends the encoded video. If the connection is
lost during the stream, the system will automatically try to reconnect.
If you are using push streaming, complete the Address, Publish Point, and authentication
fields.

In the Archive section, select the Enable check box and enter the Path. In the following
example, C:\Content\ is used. The archive collects the video capture and assembles all the
files needed for the presentation locally on the RealPresence Capture Station appliance
before they are published to the streaming servers. If you do not enable archiving, there will
be no on-demand files to publish to the servers.
