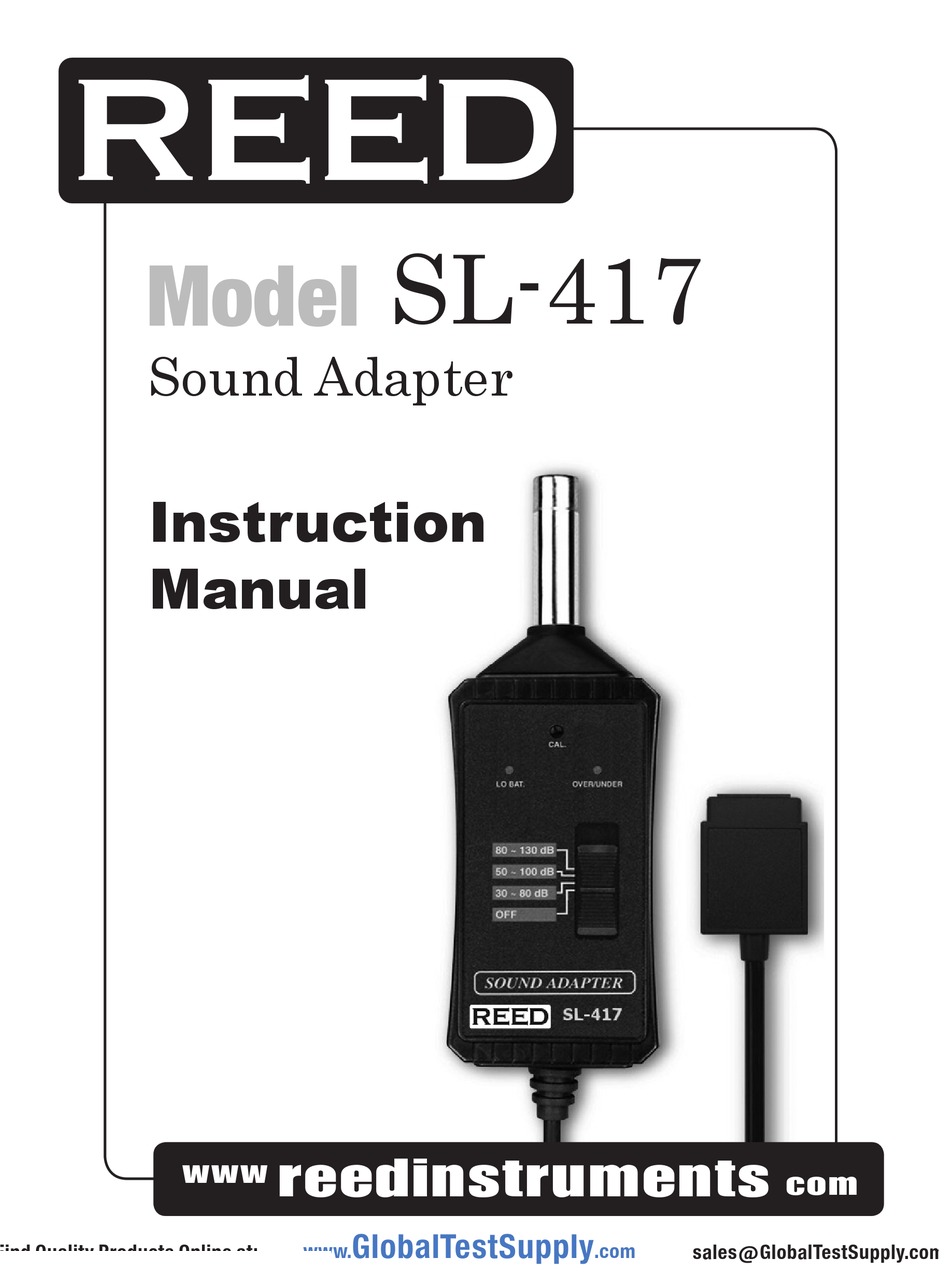

  • Page 1 Black SL-417 Model Pantone 534 Blue - 100/80/30/5 Sound Adapter Pantone 485 Red - 10/100/100/5 Pantone 123 Yellow - 0/27/100/ Instruction Manual reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 2 Table of Contents Features..................2 Specifications................. 3 Instrument.Description..............4 Operating.Instructions..............5 Battery.Replacement..............5 Features •. Works.in.cooperation.with.the.SD-9300.Environment.Meter.to.take. professional.Sound.Level.measurements •. 30.to.130.db,.three.ranges •. Frequency.weighting.networks.meet.IEC.61672.class.2.standards •. Fast.time.weighting.dynamic.characteristic.modes Blue - 100/80/30/5 Pantone 534 Blue •. Condenser.microphone.for.high.accuracy.and.long-term.stability Yellow - 0/27/100/0 Pantone 123 Yellow •.

  • Page 3: Specifications

    Specifications Measuring.Range:. Range.1:.30.to.80db;. Range.2:.50.to.100db;. Range.3:.80.to.130db Output:. 10mV.per.1db Accuracy:. 31.5Hz:.±3.5dB. 63Hz:.±2.5dB. 125Hz:.±2.0dB. 250Hz:.±1.9dB. 500Hz:.±1.9dB. 1KHz:.±1.4dB. 2KHz:.±2.6dB. 4KHz:.±3.6dB. 8KHz:.±5.6dB Frequency:. 31.5Hz.to.8,000Hz Microphone.Type:. Electric.condenser Operating.Temperature:. 0.to.50ºC.(32.to.122ºF) Operating.Humidity:. >80% Power.Supply:. One.DC.9V.battery Dimensions:. Microphone:.12.7.x.58mm.(0.5.x.2.28”). Instrument:.107.x.53.x.29mm.(4.2.x.2.1.x.1.1”) Weight:. 220g.(0.49lb) Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red...

  • Page 4: Instrument Description

    Instrument Description Microphone Calibration.VR Power.Indicator Over/Under.Range.Indicator Range/Power.Off.Switch Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Battery.Cover/Compartment Red - 10/100/100/5 Pantone 485 Red Output.plug Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue reedinstruments Black Rich Black - 20/20/20/100...

  • Page 5: Operating Instructions

    Battery Replacement When.the.Power.Indicator.does.not.light.up.when.you.turn.the.meter.on,. you.need.to.change.the.batteries. Open.the.Battery.Cover.and.remove.the.battery. Replace.the.battery.with.a.new.9V.and.replace.the.cover. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow For.service.on.this.or.any.other.REED.product.or.information.on.other. Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow REED.products,.contact.REED.Instruments.at.info@reedinstruments.com Blue - 100/80/30/5 Pantone 534 Blue reedinstruments Black...
