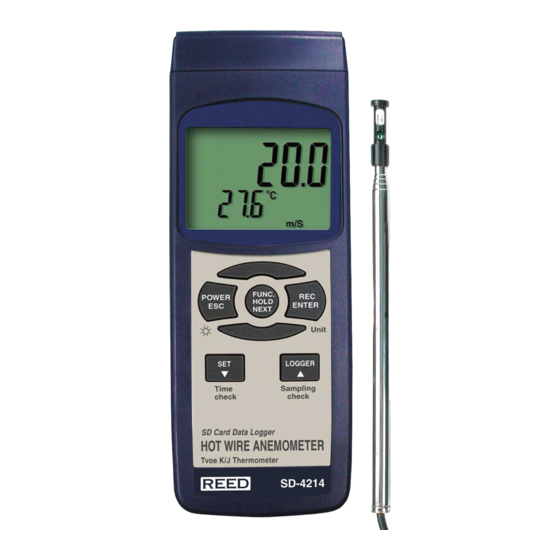

REED SD-4214 Instruction Manual And Users Manual
Thermo-anemometer/
data logger
Hide thumbs
Also See for SD-4214:
- Instruction manual and users manual (20 pages) ,
- Instruction manual (20 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Instruction Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for REED SD-4214
Summary of Contents for REED SD-4214

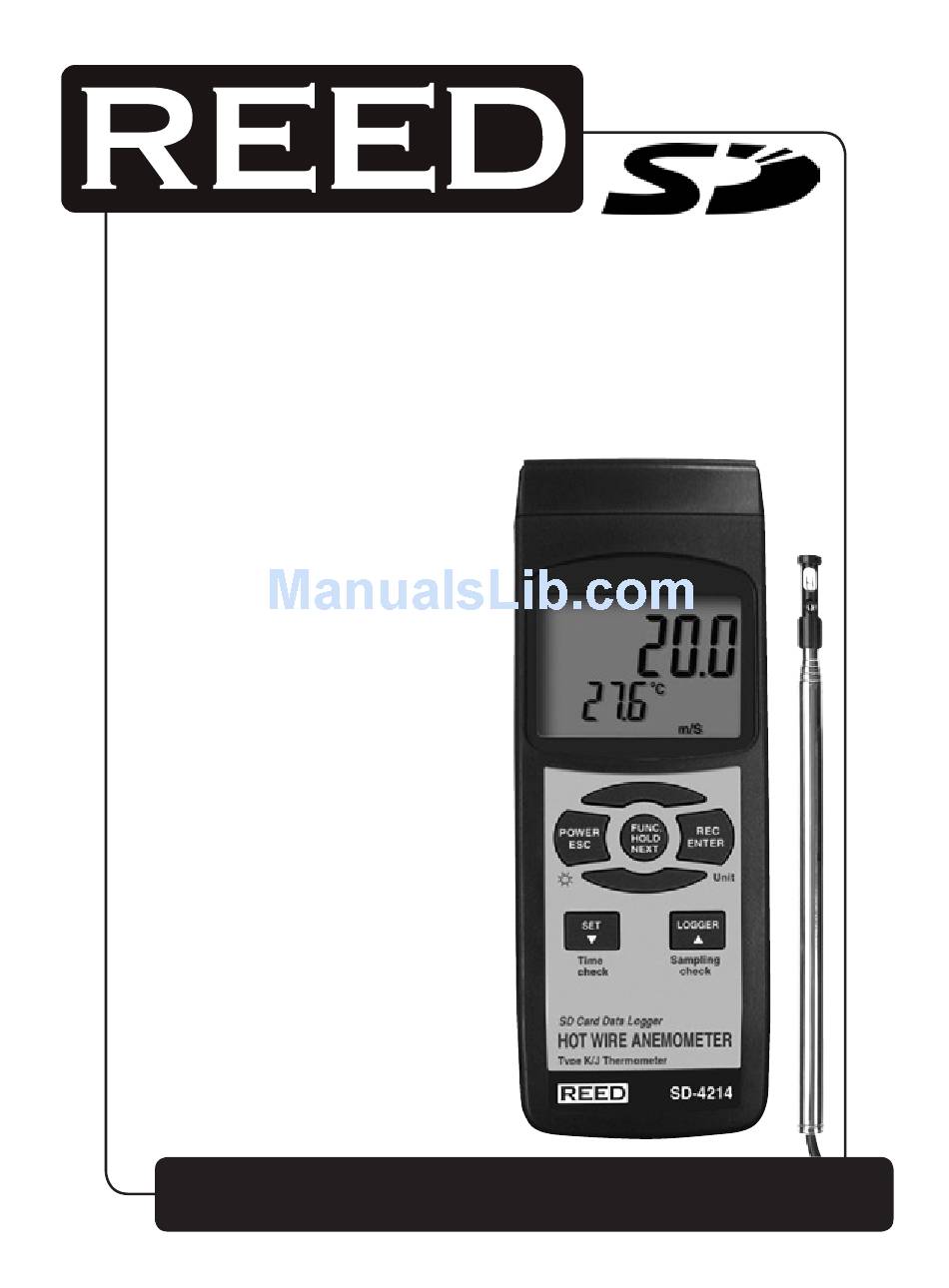

- Page 1 Rich Black - 20/20/20/100 SD-4214 Model Thermo-Anemometer/ Only if you REALLY need them: Data Logger Instruction Manual reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Table of Contents Features .................... 3 Specifications ................4-5 Instrument Description ..............6 Operating Instructions ..............7-11 Function selection ................7 Air velocity/Temperature measurement .......... 7 Changing the Air velocity unit ............7 Type K/J Thermometer measurement ..........8 Data Hold ..................8 Data Record (Max., Min. -
Page 3: Features
Features • Combination of hot wire and standard thermistor, deliver rapid and precise measurements even at low air velocity value • Slim probe, ideal for grilles & diffusers • Air velocity: m/S, FPM, Km/h, Knots, & MPH • Air temperature (°C, °F) •... -
Page 4: Specifications
Specifications Circuit: Custom microprocessor LSI circuit Display: 52mm x 38mm LCD with backlight Air velocity units: m/S, Km/h, FPM, Knots, Mph Temperature units: (°C, °F) Auto Sampling Time: 1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds Memory Card: SD memory card, 1 GB to 16 GB Sampling Time of Display: Approx. -
Page 5: Specifications
Air velocity Measurement Range Resolution Accuracy 0.2 to 5.0m/S 0.01m/s 5.1 to 25.0m/s 0.1m/s Km/h 0.70 to 18.00Km/h 0.01Km/h ±(5% + a) reading 18.0 to 72.0Km/h 0.1Km/h 0.50 to 11.20mph 0.01mph ±(1% + a) 11.2 to 44.7mph 0.1mph full scale Knots 0.40 to 9.70 knots 0.01 Knots... -
Page 6: Instrument Description
Instrument Description 11. Reset Button 1. Display 12. AC/DC 9V Power Adapter Input 2. Power, ESC, & Backlight Button Socket 3. Hold, Function, & Next Button 13. Battery Compartment/Cover 4. REC, Enter, & Unit Button 14. Battery Cover Screws 5. SET, Down, & Time Check Button 15. -
Page 7: Operating Instructions
Operating Instructions Function selection Turn on the meter by pressing the Power Button. To turn the meter off, hold the Power Button for over 2 seconds. The meter has 2 measuring functions to choose from: Air velocity/ Temp or Type K/J Thermometer. When the meter is on, press and hold the Function Button. -
Page 8: Type K/J Thermometer Measurement
Type K/J Thermometer measurement Select the “tP” function (see Function Select). Plug the optional Type K or J Thermocouple Probe into the Type K/J Probe Input Socket. Be sure the Telescopic Probe is not plugged in. The screen will display a “K”, meaning it is configured for a Type K ther- mometer probe. -
Page 9: Backlight On/Off
Backlight ON/OFF After powering the meter ON, the LCD Backlight will turn on automati- cally. While taking measurements, press the Backlight Button and the LCD Backlight will turn off. Press the Backlight Button once again to turn the LCD Backlight back ON. Datalogger Preparation Before Executing the Datalogger Function: Insert the optional SD card into the SD card socket. -
Page 10: Manual Datalogger
Stop Datalogging; while the Datalogger function is paused, press the REC Button for 2 seconds. The “REC” symbol will disappear indicating the Datalogging function has stopped. Manual Datalogger (Set sampling time = 0 seconds) Set sampling time is to 0 second; Press the REC Button, and the “REC”... -
Page 11: Sd Card Data Structure
24h clock), Value, and Unit. Blue - 100/80/30/5 34 Blue Yellow - 0/27/100/0 23 Yellow For service on this or any other REED product or information on other Red - 10/100/100/5 85 Red Yellow - 0/27/100/0 23 Yellow REED products, contact REED Instruments at info@reedinstruments.com... -
Page 12: Advanced Settings
Advanced Settings During normal functions (not Datalogging), press and hold the SET Button for 2 seconds to enter the “Advanced Setting” mode. Press the Next But- ton scroll through eight main functions, shown on the lower display: dAtE Set clock time (Year/Month/Date, Hour/Minute/Second) Set SD card Decimal character PoFF Auto power OFF management bEEP Set beeper sound ON/OFF... -
Page 13: Setting The Decimal Point On The Sd Card
Setting the Decimal point on the SD Card When the lower display shows “dEC”, use the Up or Down But- tons to toggle between “bASIC” (“.” Decimal Point) or “Euro” (“,” Decimal Point). After the Decimal point character has been selected, press the Enter Button to save the setting as the default. -
Page 14: Select The Temperature Unit To °C Or °F
Select the Temperature unit to °C or °F When the lower display shows “t-CF”, use the Up or Down But- tons to select “C” (for °C) or “F” (for °F). After selecting “C” or “F”, press the Enter Button to save the setting as the default. -
Page 15: Pc Serial Interface
PC Serial Interface The instrument features an PC output via 3.5 mm terminal. The connector output is a 16 digit data stream which can be utilized to the user’s specific application. An USB RS232 lead with the following connection will be required to link the instrument with the PC serial input. -
Page 16: System Reset
34 Blue Yellow - 0/27/100/0 23 Yellow Red - 10/100/100/5 85 Red For service on this or any other REED product or information on other Yellow - 0/27/100/0 23 Yellow REED products, contact REED Instruments at info@reedinstruments.com Blue - 100/80/30/5... - Page 17 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 34 Blue Yellow - 0/27/100/0 23 Yellow ________________________________________________ Red - 10/100/100/5 85 Red Yellow - 0/27/100/0 23 Yellow Blue - 100/80/30/5 34 Blue reedinstruments Rich Black -...
