REED SD-9901 Instruction Manual

Air quality datalogger
Hide thumbs Also See for SD-9901:
Table of Contents

Advertisement

Quick Links

Download this manual
www.actoolsupply.com
Model
Air Quality Datalogger
Pantone 534 Blue - 100/80/30/5
Pantone 485 Red - 10/100/100/5
Pantone 123 Yellow - 0/27/100/
Instruction
Manual
www.actoolsupply.com
SD-9901
Black

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD-9901 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for REED SD-9901

Summary of Contents for REED SD-9901

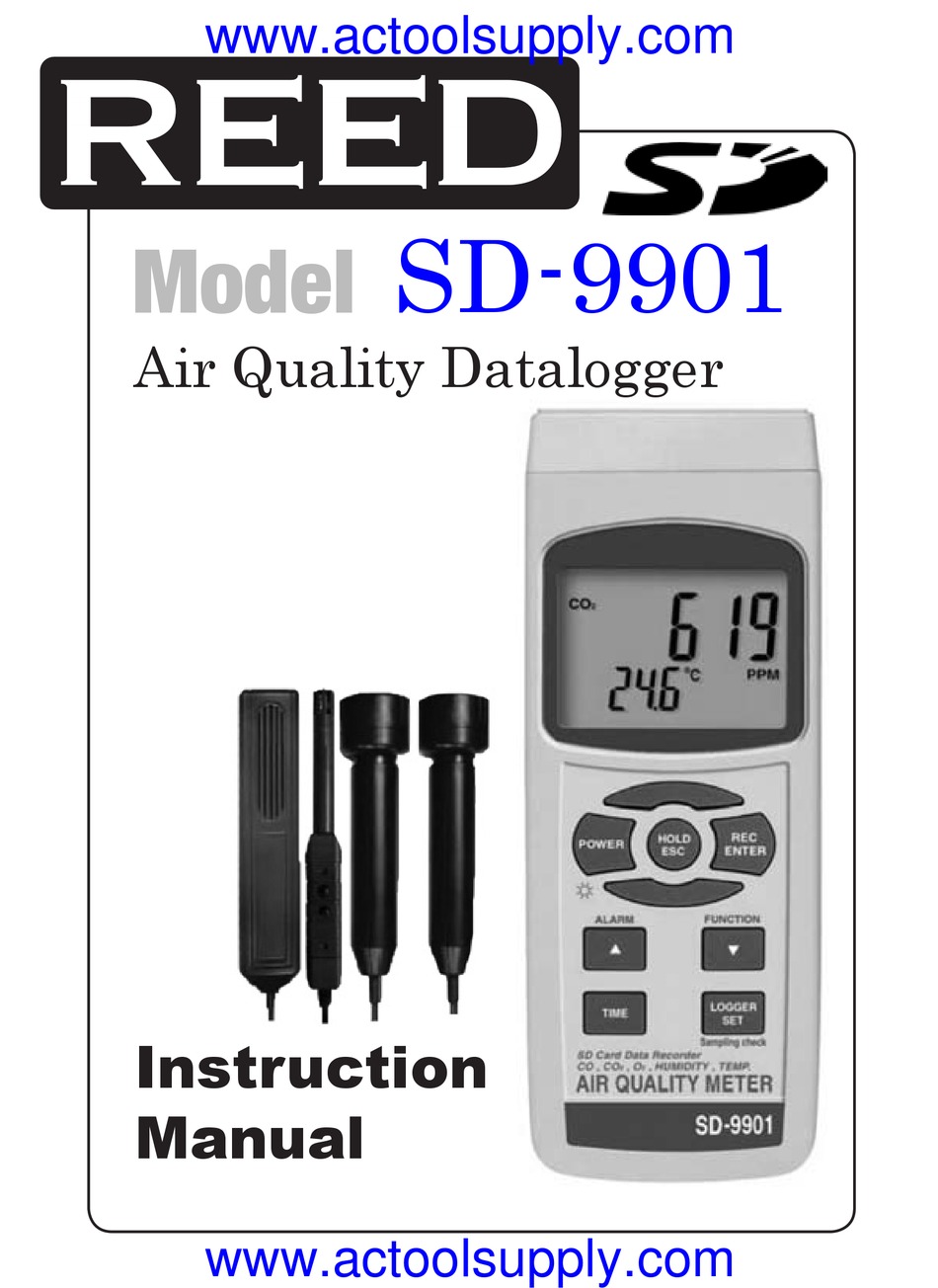

  • Page 1 Black SD-9901 Model Air Quality Datalogger Pantone 534 Blue - 100/80/30/5 Pantone 485 Red - 10/100/100/5 Pantone 123 Yellow - 0/27/100/ Instruction Manual www.actoolsupply.com...

  • Page 2: Table Of Contents

    www.actoolsupply.com Table of Contents Features..................... 3 Specifications.................3-5 Instrument.Description..............6 Operating.Instructions..............7-11 Function selection ................7 Data Hold ..................7 Data Record ................7-8 Backlight ON/OFF ................8 Datalogger ..................8 Auto Datalogger ................9 Manual Datalogger ................. 9 Checking the Time ...............

  • Page 3: Features

    www.actoolsupply.com Features • No.extra.software.needed,.just.plug.the.SD.card.into.the.computer. and.it.downloads.directly.to.EXCEL • Simultaneously.records.data.from.three.probes • Meter.can.switch.to.a.Manual.Datalogging. • Measures.CO ,.CO,.O ,.Humidity,.and.Temperature •. Non-dispersive.infrared.CO .sensor •. Galvanic.cell.CO.and.O .sensors •. Precision.capacitance.Humidity.sensor. •. Real.time.SD.memory.card.datalogger.with.a.built-in.clock.and. calendar •. Sampling.time.set.from.2.seconds.to.8.hours •. Easy.to.read.LCD.with.backlight. •. Auto.power.off.or.manual.power.off •. Data.hold,.record.max..and.min..reading •. Alarm.setting.with.beeper •. High.accuracy.microcomputer.circuit •. Power.by.UM3/AA.(1.5.V).x.6.batteries •. USB/RS232.Computer.interface •.
  • Page 4 www.actoolsupply.com Operating.Humidity:. Less.than.85%.R.H.. Power.Supply:. UM3/AA.(1.5.V).x.6.batteries Weight:.. 350g/0.77lb Dimensions:. Meter:.177.x.68.x.45mm;. Humidity.probe:.197mm.long;. CO.probe:.150.x.38.x.38mm;. .probe:.190.x.38.x.28mm; .probe:.150.x.38.x.38mm Includes:. Humidity.probe,.CO.probe,.CO .probe,. .probe,.and.hard.carrying.case Optional.accessories:. 2G.SD.Card.(SD-2GB).. Type.K.thermocouple.probe.(TP-01). USB.cable.(USB-01). RS232.cable.(UPCB-01). Data.Acquisition.Software.(SW-U801-WIN) Visit.us.at.www.reedinstruments.com.for.more.information.on.our.Optional. Accessories,.or.e-mail.us.at.info@reedinstruments.com (Carbon Dioxide) Range:. 0.-.4,000.ppm. Resolution:. 1.ppm. Accuracy:. ±40.ppm.(<1,000.ppm),.±5%.(>1,000.ppm). Repeatability:. ±20.ppm CO (Carbon Monoxide) Range:. 0.-.1,000.ppm. Resolution:.
  • Page 5 Wet Bulb Temperature Range:. -21.6.–.50°C (-6.9.–.122.1°F). Resolution:. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow For.service.on.this.or.any.other.REED.product.or.information.on.other. Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow REED.products,.contact.REED.Instruments.at.info@reedinstruments.com Blue - 100/80/30/5 Pantone 534 Blue Black Rich Black - www.actoolsupply.com...

  • Page 6: Instrument.description

    www.actoolsupply.com Instrument Description 1.. Display. 15..O /CO.Probe.Socket 2.. Power.&.Backlight.Button 16..AC/DC.9V.Power.Adapter.Input.. 3.. Hold.ESC.Button Socket 4.. REC.&.Enter.Button 17..Reset.Button 5.. Alarm.&.Up.Button 18..USB/RS232.Output 6.. Function.&.Down.Button 19..SD.Card.Slot 7.. Time.Button 20..Humidity.Sensor 8.. Logger,.SET,.&.Sampling.Check.. 21..Humidity.Probe.Plug Button 22..CO .Sensor 9.. Stand 23..CO .Probe.Plug 10..Battery.Compartment/Cover Blue - 100/80/30/5 Pantone 534 Blue 24..O .Sensor Yellow - 0/27/100/0...

  • Page 7: Operating.instructions

    www.actoolsupply.com Operating Instructions Function selection This.meter.can.have.three.probes.plugged.in.at.the.same.time:.the.Hu- midity,.CO ,.and.either.the.O .or.the.CO.Probe..The.meter.will.datalog.all. three.values,.but.will.only.display.one.at.a.time.on.the.LCD.screen. 1). Plug.in.the.Humidity,.CO ,.and.either.the.O .or.the.CO.Probe.into. the.meter. 2). Turn.on.the.meter.by.pressing.the.Power.Button..To.turn.the.meter. off,.hold.the.Power.Button.for.over.2.seconds. 3). Press.the.Function.Button.to.scroll.through.the.measuring.. functions:. Display. Function. rH.. Humidity/Temperature dP.. Dew.point.Temperature _ET. Wet.bulb.Temperature CO/Temperature /Temperature CO2. /Temperature The.selected.measurement.function.will.be.saved.as.the.default. Data Hold While.taking.a.measurement,.press.the.Hold.Button.once.and.the.mea- sured.value.will.hold.on.the.screen,.and.a.HOLD.symbol.will.appear..Press. the.Hold.Button.once.again.will.release.the.data.hold.function.. Data Record (Max., Min. reading) The.data.record.function.records.the.maximum.and.minimum.readings..

  • Page 8: Backlight On/Off

    www.actoolsupply.com To.delete.the.maximum.value,.press.the.Hold.Button.once.and.the. display.will.show.a.“REC.”.symbol.only.and.execute.the.memory. function.continuously.. 2). Press the.REC.Button.again,.and.a.“REC..MIN.”.symbol.along.. with.the.minimum.value.will.appear.on.the.display..To.delete.the. minimum.value,.press.the.Hold.Button.once,.and.the.display.will. show.a.“REC.”.symbol.only.and.execute.the.memory.function. continuously.. 3). To.exit.the.memory.record.function,.press.the.REC.button.for.2. seconds..The.display.will.revert.to.the.current.reading.. Backlight ON/OFF After.powering.the.meter.ON,.the.LCD.Backlight.will.turn.on.automati- cally..While.taking.measurements,.press.the.Backlight.Button.and.the.LCD. Backlight.will.turn.off..Press.the.Backlight.Button.once.again.to.turn.the. LCD.Backlight.back.ON. Datalogger Preparation.Before.Executing.the.Datalogger.Function:. 1). Insert the.optional.SD.card.into.the.SD.card.socket.. 2). Before.you.use.an.SD.card.with.this.meter.for.the.first.time,.it.is. recommend.to.format.the.SD.card..See.Advanced.Settings.section. of.this.manual.for.instructions. 3). If.this.is.the.first.time.the.meter.is.used.you.need.to.adjust.the. clock..See.Advanced.Settings.section.of.this.manual.for.instruc- tions. 4). Now.you.need.to.set.the.decimal.format..The.numerical.data.struc- ture.downloaded.to.the.SD.card.is.defaulted.used.the.“.”.as.the. decimal,.for.example.“20.6”.“1000.53”..But.in.certain.countries.the. “,”.is.used.as.the.decimal.point,.for.example.“20,6”.“1000,53”..See. Advanced.Settings.section.of.this.manual.for.instructions.on.how. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow...

  • Page 9: Auto Datalogger

    www.actoolsupply.com Auto Datalogger (Set sampling time ≥1 second) 1). Start.Datalogging;.press.the.REC.Button,.and.the.“REC”.symbol. will.appear.on.the.LCD.screen,.then.press.the Logger.Button,.the. “REC”.symbol.will.flash.while.the.measuring.data.and.time.informa- tion.is.being.saved.in.memory..To set.the.sampling.time,.and.to. toggle.the.beeper.sound.on.or.off,.refer.to.the.Advanced.Settings. section.of.this.manual. 2). Pause.the.Datalogging;.while.Datalogging,.if.press.the.Logger.But- ton.once..While.paused,.the.“REC”.symbol.will.stop.flashing..Press. the.Logger.Button.again.to.resume.Datalogging,.and.the.“REC”. symbol.will.begin.to.flash.again. 3). Stop.Datalogging;.while.the.Datalogger.function.is.paused,.press. the.REC.Button.for.2.seconds..The.“REC”.symbol.will.disappear. indicating.the.Datalogging.function.has.stopped.. Manual Datalogger (Set sampling time = 0 seconds) 1). Set sampling.time.is.to.0.second;.Press.the.REC.Button,.and.the. “REC”.symbol.will.appear on.the.LCD.screen..Press.the.Logger. Button,.and.the.“REC”.symbol.will.flash.once.and.one.Beep.will. sound,.at.the.same.time.the.measuring.data.along.the.time.infor- mation.will.be.saved.in.memory..The.lower.Display.will.show.the.

  • Page 10: Checking The Time

    www.actoolsupply.com Checking the Time During.normal.functions.(not.Datalogging),.press.the.Time.Check.Button. and.the.lower.LCD.display.will.show.the.Year,.Month/Date,.Hour/Minute. Check Sampling Time Information During.normal.functions.(not.Datalogging),.press.the.Sampling.Button.and. the.lower.LCD.display.will.show.the.Sampling.Time.Information. SD Card Data Structure 1). The.first.time.the.SD.card.is.used.in.the.meter,.the.SD.card.will. generate.a.folder:.AQA01 2). The.first.time.you.use.the.Datalogger,.in.the.folder.AQA01,.a.new. file.name.AQA01001.XLS.will.be.created..The.Datalogger.will.use. this.file.until.the.Data.has.reached.to.30,000.rows..The.meter.will. then.will.generate.a.new.file.with.a.subsequent.number,.for.ex- ample.AQA01002.XLS. 3). The.folder AQA01.can.hold.99.XLS.files..When.that.number.has. been.reached,.the.meter.will.then.will.generate.a.new.folder.with. a.subsequent.number,.for.example.AQA02..Max.number.of.AQA--. folders.is.10. Data Transfer from SD card to Computer (EXCEL Software) 1).

  • Page 11: Advanced.settings

    www.actoolsupply.com 4). The.EXCEL.file.will.have.the.following.column.headers.in.this.order:. Place.(Position.Number),.Date.(Year/Month/Day),.Time.(in.24h. clock),.Value,.and.Unit. Advanced Settings During.normal.functions.(not.Datalogging),.press.and.hold.the.SET.Button. for.2.seconds.to.enter.the.“Advanced.Setting”.mode..Press.the.Next.But- ton.scroll.through.eight.main.functions,.shown.on.the.lower.display: Sd F SD.memory.card.Format dAtE Set clock.time.(Year/Month/Date,.Hour/Minute/Second) SP-t Set sampling.time.(Hour/Minute/Second). PoFF Auto.power.OFF.management. bEEP Set beeper.sound.ON/OFF. Set SD.card.Decimal.character. t-CF Select.the.temperature.unit.to.°C.or.°F Set Alarm.value Exit.Advanced.Settings HIgh- Set CO .height.compensation.value.in.Meters HIghf Set.CO .height.compensation.value.in.Feet While.in.the.“Advanced.Setting”.function,.press.the.Esc.Button.to.exit.and. to.return.to.normal.functioning.. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0...

  • Page 12: Sd Memory Card Format

    www.actoolsupply.com SD memory card Format Please Note:.Formatting.the.SD.card.erases.all.data.from.that.SD.card. 1). When.the.lower.display.shows.“Sd.F”,.use.the.Up.or.Down.Buttons. to.select.“yES”.(format.the.SD.card).or.“no”.(do.not.format.the.SD. card). 2). To.format.your.SD.card,.select.“yES”.and.press.the.Enter.Button.. The.Display.will.show.“yES.Enter”,.to.confirm..Press.the.Enter.But- ton.to.confirm. Set Clock Time 1). When.the.lower.display.shows.“dAtE”,.press.the.Enter.Button.. Use.the.Up.and.Down.Buttons.to.adjust.the.Year..After.the.desired. value.is.set,.press.the.Enter.Button.to.adjust.the.Month,.Date,.Hour,. Minute,.and.Second.values.. 2). After.all.the.time.values.have.been.set.the.screen.will.jump.to.“SD. card.Decimal.character”.setting.screen..To.exit.“Advanced.Set- tings”,.press.the.Esc.Button. Note:.After.the.time.value.is.set,.the.internal.clock.will.run.even.when.the. power.is.off,.if.the.battery.is.under.normal.conditions.. Set sampling time 1). When.the.lower.display.shows.“SP-t”,.use.the.Up.or.Down.Buttons. to.adjust.the.sampling.time.value. 2). After.the.Sampling.value.is.selected,.press.the.press.the.Enter.But- ton.to.save.the.setting.as.the.default..To exit.“Advanced.Settings”,. press.the.Esc.Button. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0...

  • Page 13: Auto Power Off Management

    www.actoolsupply.com Auto power OFF management 1). When.the.lower.display.shows.“PoFF”,.use.the.Up.or.Down.But- tons.to.select.the.value.“yES”.(Enable.Auto.Power.Off).or.“no”. (Disable.Auto.Power.Off. 2). After.selecting.“yES”.or.“no”,.press.the.Enter.Button.to.save.the. setting.as.the.default..To.exit.“Advanced.Settings”,.press.the.Esc. Button. Set Beeper Sound ON/OFF 1). When.the.lower.display.shows.“bEEP”,.use.the.Up.or.Down.But- tons.to.select.“yES”.(Beeper.Sound.is.ON).or.“no”.(Beeper.Sound. is.OFF).. 2). After.selecting.“yES”.or.“no”,.press.the.Enter.Button.to.save.the. setting.as.the.default..To.exit.“Advanced.Settings”,.press.the.Esc. Button. Setting the Decimal point on the SD Card 1). When.the.lower.display.shows.“dEC”,.use.the.Up.or.Down.Buttons. to.toggle.between.“bASIC”.(“.”.Decimal.Point).or.“Euro”.(“,”.Deci- mal.Point).. 2). After.the.Decimal.point.character.has.been.selected,.press.the. Enter.Button.to.save.the.setting.as.the.default..To.exit.“Advanced. Settings”,.press.the.Esc.Button.

  • Page 14: Set Alarm Value

    www.actoolsupply.com Set Alarm value 1). When.the.lower.display.shows.“AL”,.use.the.Up.or.Down.Buttons. to.adjust.the.Alarm.value. 2). After.the.Alarm.value.is.selected,.press.the.press.the.Enter.Button. to.save.the.setting.as.the.default..To.exit.“Advanced.Settings”,. press.the.Esc.Button. When.the.lower.display.shows.“ESC”,.press.the.Enter.Button.to.finish. the.Advanced.Settings.procedures.and.return.to.the.normal.measuring. screen. Setting the CO Height Compensation Value in Meters 1). When.the.lower.display.shows.“HIgh-”,.use.the.Up.or.Down.But- tons.to.adjust.the.CO .Height.Compensation.Value.in.Meters. 2). After.the.value.is.selected,.press.the.press.the.Enter.Button.to.save. the.setting.as.the.default..To.exit.“Advanced.Settings”,.press.the. Esc.Button. Setting the CO Height Compensation Value in Feet 1). When.the.lower.display.shows.“HIghf”,.use.the.Up.or.Down.But- tons.to.adjust.the.CO .Height.Compensation.Value.in.Feet.

  • Page 15: Pc.serial.interface

    www.actoolsupply.com PC Serial Interface The.instrument.features.an.PC.output.via.3.5.mm.terminal..The.connector. output.is.a.16.digit.data.stream.which.can.be.utilized.to.the.user’s.specific. application..An.USB.RS232.lead.with.the.following.connection.will.be. required.to.link.the.instrument.with.the.PC.serial.input. Meter.(3.5mm.Jack.Plug) PC.(9W.“D”.Connector) Center.Pin Pin.2 Ground/Shield Pin.5 The.16.digit.data.stream.will.be.displayed.in.the.following.format: D15.D14.D13.D12.D11.D10.D9.D8.D7.D6.D5.D4.D3.D2.D1.D0 End.Word D1.to.D4 Upper.Display.reading,.D1=.LSD,.D4=.MSB D5.to.D8 D5=?.D6=?.D7=?.D8=? Decimal.Point.(.DP).for.display. 0.=.No.DP,.1.=.1.DP,.2.=.2.DP,.3.=.3.DP D10.= 0 D11.= 0 D12.= 0 D13.= 0 D14.= 0 Start.Word Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5...

  • Page 16: System.reset

    www.actoolsupply.com System Reset If.an.error.occurs,.press.the.Reset.Button.with.a.Pin..If.the.Reset.Button. does.not.fix.the.error,.please.send.in.the.unit.to.our.Calibration.Lab.for. repair..E-mail.info@reedinstruments.com.for.more.information. Battery Replacement 1). When.the.left.corner.of.LCD.display.shows. ,.it.is.necessary.to. replace.the.battery 2). Loosen.the.screws.of.the.Battery.Cover.and.remove 3). Remove.the.batteries.and.replace.with.Six.DC.1.5.V.batteries. (UM3,.AA,.Alkaline/heavy.duty) 4). Make.sure.the.battery.cover.is.properly.secured.after.changing.the. battery. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
