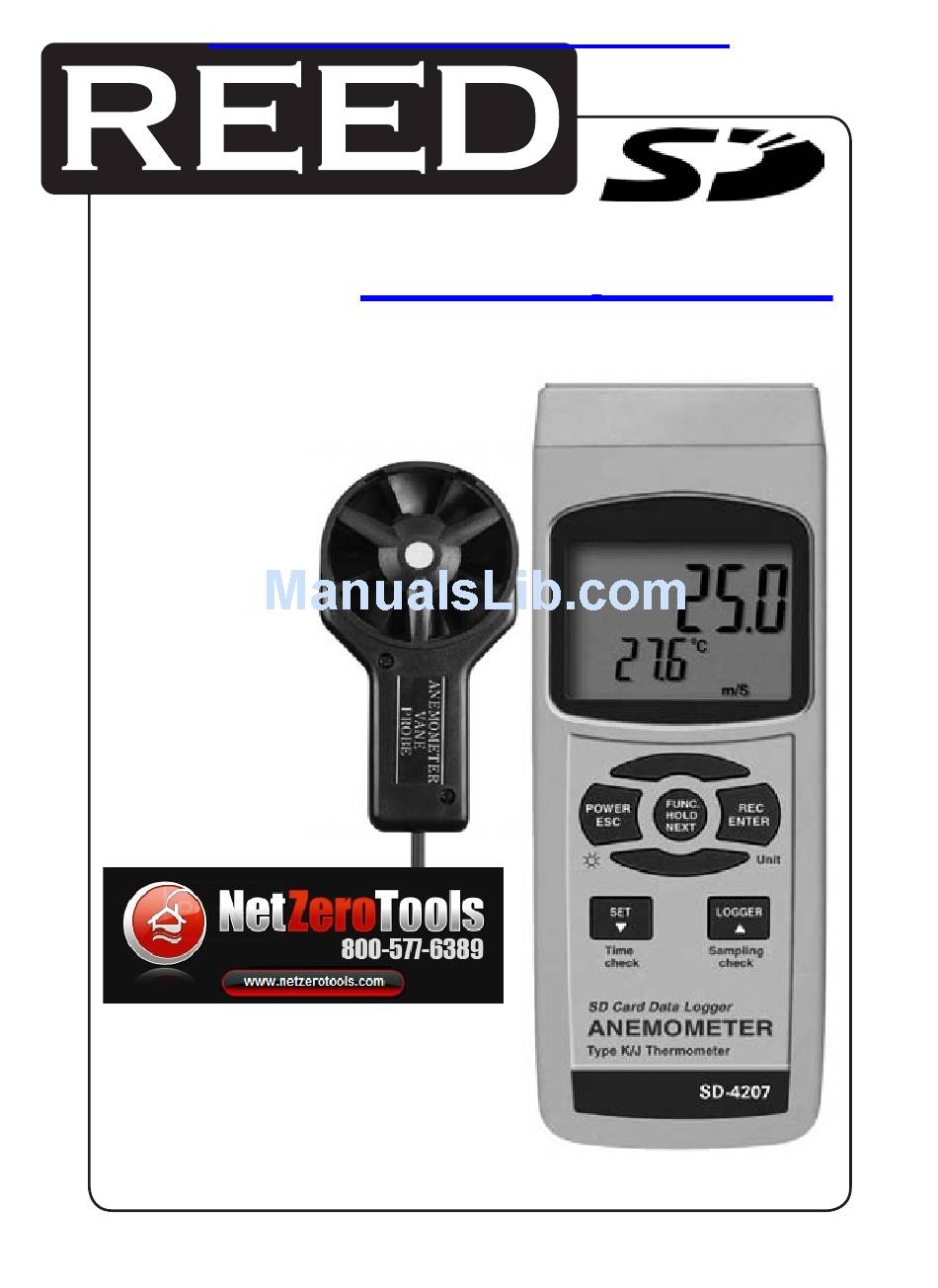

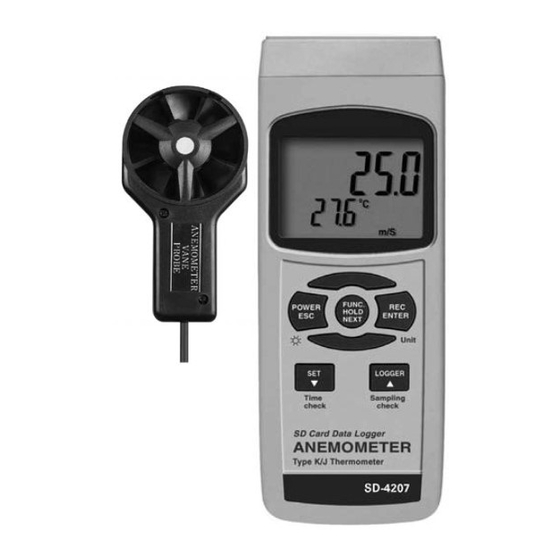

  • Page 1 Black Model SD-4207/SD-4214 Anemometer/Thermometer Datalogger Instruction Manual www.netzerotools.com...

  • Page 2: Table Of Contents

    www.netzerotools.com Table of Contents Features..................... 3 Specifications.................4-5 Instrument.Description..............6 Operating.Instructions..............7-11 Function selection ................7 Air velocity/Temperature measurement ........... 7 Changing the Air velocity unit ............7 Type K/J Thermometer measurement ..........8 Data Hold ..................8 Data Record (Max., Min.

  • Page 3: Features

    www.netzerotools.com Features • Air.velocity:.m/S,.FPM,.Km/h,.Knots,.&.MPH • Air.temperature.(°C,.°F) • Low-friction.ball.vane.wheels.ensures.high.accuracy.in.high.&.low. velocities • Type.K.and.Type.J.thermocouple.thermometer • Air.Temperature.uses.a.thermistor.sensor.for.fast.response.time • Real.time.SD.memory.card.datalogger.with.a.built-in clock.and. calendar • Sampling.time.set.from.1.second.to.3600.seconds • Meter.can.switch.to.a.Manual.Datalogging. • No.extra.software.needed,.just.plug.the.SD.card.into.the.computer. and.it.downloads.directly.to.EXCEL • SD.card.capacity:.1.GB.to.16.GB • Easy.to.read.LCD.with.backlight. • Auto.power.off.or.manual.power.off • Data.hold,.record.max..and.min..reading • High.accuracy.microcomputer.circuit • Power.by.UM3/AA.(1.5.V).x.6.batteries • USB/RS232.Computer.interface • Separated.probe.for.easy.measurements.of multiple.environments •...

  • Page 4: Specifications

    www.netzerotools.com Specifications Circuit:. Custom.microprocessor.LSI.circuit Display:. 52mm.x.38mm.LCD.with.backlight Air.velocity.units:. m/S,.Km/h,.FPM,.Knots,.Mph Temperature.units:. (°C,.°F) Auto.Sampling.Time:. 1,.2,.5,.10,.30,.60,.120,.300,.600,.1800,.. 3600.seconds Memory.Card:. SD.memory.card,.1.GB.to.16.GB Sampling.Time.of.Display:. Approx..1.second Data.Output:. USB/RS232.PC.computer.interface Temperature.Range:. 0-50°C.(0-122°F) Resolution:. 0.1°C/0.1°F Accuracy:. ±.0.8°C/1.5°F Operating.Temperature:. 0-50°C.(0-122°F) Operating.Humidity:. Less.than.85%.R.H.. Power.Supply:. UM3/AA.(1.5.V).x.6.batteries. Weight:.. 515g/1.13lb Dimensions:. Main.instrument.:203.x.76.x.38mm. Anemometer.Sensor.Head:.72mm.Dia.. Includes:. Anemometer.probe.and.a.hard.carrying.case Optional.accessories:. 2G.SD.Card.(SD-2GB).. Type.K.thermocouple.probe.(TP-01).
  • Page 5 www.netzerotools.com Air velocity Measurement Range Resolution Accuracy 0.4-30.0m/S 0.1m/S ±(2%+0.2.m/S) Km/h 1.4-126.0Km/h 0.1Km/h ±(2%+0.8.Km/h) 0.9-78.3mph 0.1mph ±(2%+0.4.mph) Knots 0.8-68.0.knots 0.1.Knots ±(2%+0.4.Knots) 79-6890.FPM 1.FPM ±(2%+40.FPM) Type K/J thermometer Sensor.Type Resolution Range Accuracy -50.0.to.1300.0°C ±.(0.4%.+.0.5°C) 0.1°C -50.1.to.-100.0°C ±.(0.4%.+.1°C) Type.K -58.0.to.2372.0°F ±.(0.4%.+.1°F) 0.1°F -58.1.to.-148.0°F ±.(0.4%.+.1.8°F) -50.0.to.1200.0°C...

  • Page 6: Instrument.description

    www.netzerotools.com Instrument Description 11..Reset.Button 1.. Display. 12..AC/DC.9V.Power.Adapter.Input.. 2.. Power,.ESC,.&.Backlight.Button Socket. 3.. Hold,.Function,.&.Next.Button 13..Battery.Compartment/Cover 4.. REC,.Enter,.&.Unit.Button 14..Battery.Cover.Screws 5.. SET, Down,.&.Time.Check.Button 15..Stand 6.. Logger,.Up,.&.Sampling.Time.. 16..Tripod.Fix.Nut Check.Button 17..Probe.Plug 7.. Probe.input.socket 18..Probe.Handle 8.. Type.K/J.thermometer.socket Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow 19..Air.velocity/Temp..Probe.head 9..

  • Page 7: Operating.instructions

    www.netzerotools.com Operating Instructions Function selection 1). Turn.on.the.meter.by.pressing.the.Power.Button..To.turn.the.meter. off,.hold.the.Power.Button.for.over.2.seconds. 2). The.meter.has.2.measuring.functions.to.choose.from:.Air.velocity/ Temp.or.Type.K/J.Thermometer. When.the.meter.is.on,.press.and.hold.the.Function.Button..The.display.will. flash.“Air”,.for.Air.velocity/Temperature.measurement,.and.“tP”.for.Type. K/J.Thermometer.measurement..Release.the.Function.Button.to.choose. the.displayed.function. Air velocity/Temperature measurement 1). When.the.meter.is.off,.plug.the.Air.Velocity.Probe.Plug.into.the. Probe.Input.Socket,.then.power.on.the.meter.by.pressing.the. Power.Button. 2). Select.the.“Air”.function.(see.Function.Select). 3). Hold.the.Probe.Handle.and.face.the.Probe.Head.against.the.mea- suring.airflow.source..The.yellow.dot.on.the.sensor.head.indicates. the.direction.that.needs.to.face.against.the.airflow..The.top.part. of.the.Display.will.show.the.air.velocity,.and.the.lower.part.of.the. Display.will.show.the.air.temperature.value.. Changing the Air velocity unit To.change.the.Air.velocity.unit,.press.and.hold.the.Unit.Button..The.dis- play.will.flash.the.units.m/S,.Km/h,.mph,.Knot,.&.FPM..Release.the.Unit. Button.to.select.the.displayed.unit..The.select.unit.will.be.saved.as.the. default. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow...

  • Page 8: Type K/J Thermometer Measurement

    www.netzerotools.com Type K/J Thermometer measurement 1). Select.the.“tP”.function.(see.Function.Select). 2). Plug the.optional.Type.K.or.J.Thermocouple.Probe.into.the.Type. K/J.Probe.Input.Socket..Be.sure.the.Air.Velocity.Probe.is.not. plugged.in. 3). The.screen.will.display.a.“K”,.meaning.it.is.configured.for.a.Type. K.thermometer.probe..The.measured.temperature.will.now.be.dis- played.on.the.display.screen..To.change.the.meter.to.accept.a.Type. J.Probe,.please.see.the.Advanced.Settings.section. Data Hold While.taking.a.measurement,.press.the.Hold.Button.once.and.the.mea- sured.value.will.hold.on.the.screen,.and.a.HOLD.symbol.will.appear... Press the.Hold.Button.once.again.will.release.the.data.hold.function.. Data Record (Max., Min. reading) The.data.record.function.records.the.maximum.and.minimum.readings.. Press the.REC.Button.once.to.start.the.Data.Record.function.and.a.“REC”. symbol.will.appear.on.the.display..With.the.“REC”.symbol.on.the.display:. 1). Press the.REC.Button.once,.and.a.”REC..MAX.”.symbol.along.with. the.maximum.value.will.appear.on.the.display..To.delete.the.maxi- mum.value,.press.the.Hold.Button.once.and.the.display.will.show. a.“REC.”.symbol.only.and.execute.the.memory.function.continu- ously.. 2). Press the.REC.Button.again,.and.a.“REC..MIN.”.symbol.along.. with.the.minimum.value.will.appear.on.the.display..To.delete.the.

  • Page 9: Backlight On/Off

    www.netzerotools.com Backlight ON/OFF After.powering.the.meter.ON,.the.LCD.Backlight.will.turn.on.automati- cally..While.taking.measurements,.press.the.Backlight.Button.and.the.LCD. Backlight.will.turn.off..Press.the.Backlight.Button.once.again.to.turn.the. LCD.Backlight.back.ON. Datalogger Preparation.Before.Executing.the.Datalogger.Function:. 1). Insert the.optional.SD.card.into.the.SD.card.socket.. 2). Before.you.use.an.SD.card.with.this.meter.for.the.first.time,.it.is. recommend.to.format.the.SD.card..See.Advanced.Settings.section. of.this.manual.for.instructions. 3). If.this.is.the.first.time.the.meter.is.used.you.need.to.adjust.the. clock..See.Advanced.Settings.section.of.this.manual.for.instruc- tions. 4). Now.you.need.to.set.the.decimal.format..The.numerical.data.struc- ture.downloaded.to.the.SD.card.is.defaulted.used.the.“.”.as.the. decimal,.for.example.“20.6”.“1000.53”..But.in.certain.countries.the. “,”.is.used.as.the.decimal.point,.for.example.“20,6”.“1000,53”..See. Advanced.Settings.section.of.this.manual.for.instructions.on.how. to.change.the.Decimal.Character.. Auto Datalogger (Set sampling time ≥1 second) 1). Start.Datalogging;.press.the.REC.Button,.and.the.“REC”.symbol. will.appear.on.the.LCD.screen,.then.press.the Logger.Button,.the. “REC”.symbol.will.flash.while.the.measuring.data.and.time.informa- tion.is.being.saved.in.memory..To set.the.sampling.time,.and.to. toggle.the.beeper.sound.on.or.off,.refer.to.the.Advanced.Settings.

  • Page 10: Manual Datalogger

    www.netzerotools.com 3). Stop.Datalogging;.while.the.Datalogger.function.is.paused,.press. the.REC.Button.for.2.seconds..The.“REC”.symbol.will.disappear. indicating.the.Datalogging.function.has.stopped.. Manual Datalogger (Set sampling time = 0 seconds) 1). Set sampling.time.is.to.0.second;.Press.the.REC.Button,.and.the. “REC”.symbol.will.appear on.the.LCD.screen..Press.the.Logger. Button,.and.the.“REC”.symbol.will.flash.once.and.one.Beep.will. sound,.at.the.same.time.the.measuring.data.along.the.time.infor- mation.will.be.saved.in.memory..The.lower.Display.will.show.the. Position.(record).number,.which.is.saved.as.well.. 2). To.Change.the.Position.Number;.press.the.Down.Button.and.the. lower.position.number.will.flash.on.the.display..Press.the.Up.or. Down.Buttons.to.set.the.Position.Number.(1.to 99).to.help.identify. the.measurement.location. The.lower.Display.will.show.P.x.(x.=.1.to. 99)..After.the.position.number.is.selected,.press.the.Enter.Button.to. confirm. 3). Stop.Datalogging;.press.the.REC.Button.for.2.seconds,.and.the. “REC”.symbol.will.disappear.indicating.the.Datalogging.function. has.stopped.. Checking the Time During.normal.functions.(not.Datalogging),.press.the.Time.Check.Button. and.the.lower.LCD.display.will.show.the.Year,.Month/Date,.Hour/Minute. Check Sampling Time Information During.normal.functions.(not.Datalogging),.press.the.Sampling.Button.and.

  • Page 11: Sd Card Data Structure

    www.netzerotools.com SD Card Data Structure 1). The.first.time.the.SD.card.is.used.in.the.meter,.the.SD.card.will. generate.a.folder:.AMA01 2). The.first.time.you.use.the.Datalogger,.in.the.folder.AMA01,.a.new. file.name.AMA01001.XLS.will.be.created..The.Datalogger.will.use. this.file.until.the.Data.has.reached.to.30,000.rows..The.meter.will. then.will.generate.a.new.file.with.a.subsequent.number,.for.ex- ample.AMA01002.XLS. 3). The.folder AMA01.can.hold.99.XLS.files..When.that.number.has. been.reached,.the.meter.will.then.will.generate.a.new.folder.with.a. subsequent.number,.for.example.AMA02..Max.number.of.AMA--. folders.is.10. Data Transfer from SD card to Computer (EXCEL Software) 1). After.Datalogging,.remove.the.SD.card.from.the.SD.card.slot. 2). Plug in.the.SD.card.into.the.Computer’s.SD.card.slot.or.insert.the. SD.card.into.the.optional.SD.card.adapter.and.connect.to.your. Computer..Tur n.your.computer.on.and.a.folder.will.appear.on.your. desktop.representing.you.SD.card. 3). Open.“Microsoft.EXCEL”..Download.the.EXCEL.files.from.the SD. Card.to.the.computer.by.opening.up.the.SD.folder.and.selecting.

  • Page 12: Advanced.settings

    www.netzerotools.com Advanced Settings During.normal.functions.(not.Datalogging),.press.and.hold.the.SET.Button. for.2.seconds.to.enter.the.“Advanced.Setting”.mode..Press.the.Next.But- ton.scroll.through.eight.main.functions,.shown.on.the.lower.display: dAtE.. Set clock.time.(Year/Month/Date,.Hour/Minute/Second) Set SD.card.Decimal.character. PoFF. Auto.power.OFF.management. bEEP. Set beeper.sound.ON/OFF. tYPE. Select.the.Thermometer.to.Type.K.or.Type.J. t-CF. Select.the.temperature.unit.to.°C.or.°F SP-t. Set sampling.time.(Hour/Minute/Second). Sd F. SD.memory.card.Format While.in.the.“Advanced.Setting”.function,.press.the.Esc.Button.to.exit.and. to.return.to.normal.functioning.. Set Clock Time 1). When.the.lower.display.shows.“dAtE”,.press.the.Enter.Button.. Use.the.Up.and.Down.Buttons.to.adjust.the.Year..After.the.desired. value.is.set,.press.the.Enter.Button.to.adjust.the.Month,.Date,.Hour,. Minute,.and.Second.values.. 2). After.all.the.time.values.have.been.set.the.screen.will.jump.to.“SD. card.Decimal.character”.setting.screen..To.exit.“Advanced.Set- tings”,.press.the.Esc.Button. Note:.

  • Page 13: Setting The Decimal Point On The Sd Card

    www.netzerotools.com Setting the Decimal point on the SD Card 1). When.the.lower.display.shows.“dEC”,.use.the.Up.or.Down.Buttons. to.toggle.between.“bASIC”.(“.”.Decimal.Point).or.“Euro”.(“,”.Deci- mal.Point).. 2). After.the.Decimal.point.character.has.been.selected,.press.the. Enter.Button.to.save.the.setting.as.the.default..To.exit.“Advanced. Settings”,.press.the.Esc.Button. Auto power OFF management 1). When.the.lower.display.shows.“PoFF”,.use.the.Up.or.Down.But- tons.to.select.the.value.“yES”.(Enable.Auto.Power.Off).or.“no”. (Disable.Auto.Power.Off. 2). After.selecting.“yES”.or.“no”,.press.the.Enter.Button.to.save.the. setting.as.the.default..To.exit.“Advanced.Settings”,.press.the.Esc. Button. Set Beeper Sound ON/OFF 1). When.the.lower.display.shows.“bEEP”,.use.the.Up.or.Down.But- tons.to.select.“yES”.(Beeper.Sound.is.ON).or..“no”.(Beeper.Sound. is.OFF).. 2). After.selecting.“yES”.or.“no”,.press.the.Enter.Button.to.save.the. setting.as.the.default..To.exit.“Advanced.Settings”,.press.the.Esc. Button.

  • Page 14: Select The Temperature Unit To °C Or °F

    www.netzerotools.com Select the Temperature unit to °C or °F 1). When.the.lower.display.shows.“t-CF”,.use.the.Up.or.Down.Buttons. to.select.“C”.(for.°C).or.“F”.(for.°F). 2). After.selecting.“C”.or.“F”,.press.the.Enter.Button.to.save.the.set- ting.as.the.default..To.exit.“Advanced.Settings”,.press.the.Esc. Button. Set sampling time 1). When.the.lower.display.shows.“SP-t”,.use.the.Up.or.Down.Buttons. to.adjust.the.value.to.either.0,.1, 2,.5,.10,.30,60,.120,.300,.600,. 1800,.or.3600.seconds. 2). After.the.Sampling.value.is.selected,.press.the.press.the.Enter.But- ton.to.save.the.setting.as.the.default..To exit.“Advanced.Settings”,. press.the.Esc.Button. SD memory card Format Please Note:.Formatting.the.SD.card.erases.all.data.from.that.SD.card. 1). When.the.lower.display.shows.“Sd.F”,.use.the.Up.or.Down.Buttons. to.select.“yES”.(format.the.SD.card).or..“no”.(do.not.format.the.SD. card). 2). To.format.your.SD.card,.select.“yES”.and.press.the.Enter.Button.. The.Display.will.show.“yES.Enter”,.to.confirm..Press.the.Enter.But- ton.to.confirm.

  • Page 15: Pc.serial.interface

    www.netzerotools.com PC Serial Interface The.instrument.features.an.PC.output.via.3.5.mm.terminal..The.connector. output.is.a.16.digit.data.stream.which.can.be.utilized.to.the.user’s.specific. application..An.USB.RS232.lead.with.the.following.connection.will.be. required.to.link.the.instrument.with.the.PC.serial.input. Meter.(3.5mm.Jack.Plug) PC.(9W.“D”.Connector) Center.Pin Pin.2 Ground/Shield Pin.5 The.16.digit.data.stream.will.be.displayed.in.the.following.format: D15.D14.D13.D12.D11.D10.D9.D8.D7.D6.D5.D4.D3.D2.D1.D0 End.Word D1.to.D4 Upper.Display.reading,.D1=.LSD,.D4=.MSB D5.to.D8 D5=?.D6=?..D7=?..D8=? Decimal.Point.(.DP).for.display. 0.=.No.DP,.1.=.1.DP,.2.=.2.DP,.3.=.3.DP D10.= 0 D11.= 0 D12.= 0 D13.= 0 D14.= 0 Start.Word Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5...

  • Page 16: System.reset

    www.netzerotools.com System Reset If.an.error.occurs,.press.the.Reset.Button.with.a.Pin..If.the.Reset.Button. does.not.fix.the.error,.please.send.in.the.unit.to.our.Calibration.Lab.for. repair..E-mail.info@reedinstruments.com.for.more.information. Battery Replacement 1). When.the.left.corner.of.LCD.display.shows. ,.it.is.necessary.to. replace.the.battery 2). Loosen.the.screws.of.the.Battery.Cover.and.remove 3). Remove.the.batteries.and.replace.with.Six.DC.1.5.V.batteries. (UM3,.AA,.Alkaline/heavy.duty) 4). Make.sure.the.battery.cover.is.properly.secured.after.changing.the. battery. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
  • Page 17 www.netzerotools.com Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red ________________________________________________ Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
  • Page 18 www.netzerotools.com Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red ________________________________________________ Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
  • Page 19 www.netzerotools.com Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red ________________________________________________ Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
  • Page 20 www.netzerotools.com Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red ________________________________________________ Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
