Harmonic MIP-7100 Installation Manual

11
Connect AC Power
1. If you are connecting to an automation system, make sure the power switch on the automation
system is off. Attach an AC cord to the AC connector on the automation system.
2. MediaDecks do not have any power switches. To take full advantage of the dual redundant
power supplies on the MediaDeck, ensure that separate, isolated power sources are
available. Connect AC cords to the two AC connectors on the MediaDeck.
MediaDeck Rear Panel
Important: Do not plug the AC cords into AC
power sources yet. Connecting to an AC power
source will turn on the MediaDeck.
12
Power Up the System
1. Apply power to the Ethernet hub or switch.
2. Apply power to the SystemManager Platform and Keyboard/Monitor Tray, or client PC.
3. From the SystemManager Platform, log on to Microsoft Windows with the user name:
Administrator, and the password: omneon. Both entries are case sensitive.
Note: If an error message appears indicating that a network connection is missing,
click OK and continue with the power-up sequence.
If you have installed SystemManager on a client PC, log on to your client PC.
4. Apply power to the MediaDeck by connecting the AC cords to the separate power sources.
5. Check the port status display on the MediaDeck front panel and verify there are no problems.
Refer to "Reading the Port Status Display."
6. Apply power to the (optional) automation system.
Replacing Components
To replace components for your MediaDeck, refer to the Spectrum™
System Component Replacement Guide in your MediaDeck kit.
The Component Replacement Guide includes the following sections:
• Replacing the Bezel
• Replacing a Disk Drive
• Replacing a Power Supply
• Replacing a MediaPort or ChannelPort Module
• Replacing the Chassis
MediaPort and ChannelPort Options
MediaPort 7000 and ChannelPort Module Options
The table to the right shows available MediaPort 7000 and ChannelPort
module options. Note that ChannelPort modules also support
Emergency Alert Systems. For more details on the MediaPort 7000 Module,
refer to "MediaPort 7000 Module Orientation" in the Spectrum MediaDeck
7000 User Guide. For more details on the ChannelPort Module, refer
to "ChannelPort Module Orientation" in the Spectrum MediaDeck
7000 User Guide.
®
NOTE: Spectrum supports AVC/H.264 playout at at PitchBlue operating
points only.
License Options
The table to the right shows product IDs for licensed features for MediaPort
7000 and ChannelPort modules. Note that ChannelPort supports Play only.
Note that for ChannelPorts with 4 graphics layers enabled (4GL), U/D/X
conversion is not included with the DMH, DVH, and M2H licenses
unless explicitly upgraded for that capability. For ChannelPorts with 8
graphics layers enabled and MediaPorts, U/D/X conversion is included with
the DMH, DVH, and M2H licenses unless you are upgrading from a 4GL version.
*Upgrading to this license requires that an HD license is already present
on the ChannelPort or MediaPort module.
Additional License Options
The table to the right shows additional licensed features available for
MediaPort 7000 and ChannelPort modules. Note that the IDs beginning with
"CPL" are available for ChannelPort modules only.
3. Make sure that the power switch for the SystemManager Platform or client PC is off, and that the
power switch for the Keyboard/Monitor Tray is off as well. Attach an AC cord to the AC connector on
your SystemManager Platform or client PC as well as your SystemManager Keyboard/Monitor Tray.
SystemManager Platform Rear Panel
Gb 1 Gb 2
SystemManager Platform Rear Panel
4. Connect an AC cord to the AC connector on the Ethernet switch (or hub). Do not plug the AC cord
into an AC power source yet.
8 7 6 5 4 3 2 1
Gigabit Ethernet Switch
13
Run SystemManager
To run SystemManager and begin using your MediaDeck, and for an overview of ChannelPort
configuration, refer to "Getting Started with SystemManager" in the Spectrum MediaDeck 7000
User Guide.
Reading the Port Status Display
The following illustration identifies the types of information available on the port
status display on the front panel.
Port Status Display
Status
Health Summary and MediaPort ID
of
Channel 0: Player name, Player state, and timecode
Module A
Channel 1: Player name, Player state, and timecode
IP address and environmental alarms, if any
Status
Health Summary and MediaPort ID
of
Channel 0: Player name, Player state, and timecode
Module B
Channel 1: Player name, Player state, and timecode
IP address and environmental alarms, if any
NOTE: Alarms will cause the display to flash. To stop the flashing, resolve the alarm
or touch the display.
The Port Status Display allows you to enable the display of a static color bar pattern on any
or all of the SDI Output connectors, which can be used to verify connectivity. For more details,
refer to "Port Status Display" in the Spectrum MediaDeck 7000 User Guide.
MPEG-2 DV/DVCPRO AVC-Intra VC-3 ProRes Graphics AVC/H.264
Model H.264
Layers
Number Proxy
Rec Play Rec Play Rec Play Rec Play Play Play
MIP-7100 X X X X X X X
MIP-7101 X X X X X X X X
MIP-7300 X X X X X X X
MIP-7301 X X X X X X X X
MIP-7600 X X X X X X X X X
MIP-7601 X X X X X X X X X X
CPT-8100 X X X X X X X
CPT-8200 X X X X X X X
Up /Down/
MPEG-2 DV/DVCPRO AVC-Intra VC-3 ProRes
Cross
Product ID SD HD Conversion
and HD/SD
Rec Play Rec/Play Rec Play Rec Play Play
Simulcast
APR X X X X X X X
DMH X X X X X
DMS X X X X
DVH X X X X
DVS X X
M2H X X X X
M2S X X
M2R X X
UVP X X X X X X
VC3* X X X X X X
VC3P* X X X X
VC3R* X X X X
SPL-PRORES X
Product ID Description
MPU-7000-M2R License upgrade to add MPEG-2 Record to any MediaPort 7000
SPL-OPC Onboard playout control for one channel of Spectrum ChannelPort or MediaPort 7000
SPL-OMF Onboard Media Fetch for one channel of Spectrum ChannelPort or MediaPort 7000
SPL-STL Onboard subtitle insertion license for one channel of Spectrum ChannelPort or MediaPort 7000
SPL-OCC Onboard closed caption insertion license for one channel of Spectrum ChannelPort or MediaPort 7000
CPL-MCS Master Control (Live Input) license upgrade for one ChannelPort module (2 ch)
CPL-DVE License upgrade to enable capability for a single DVE for one ChannelPort module (2 ch)
CPL-HD HD license upgrade (no U/D/X Conversion) for one ChannelPort module (2 ch)
CPL-H264-PLAY License upgrade for PitchBlue ® TS demux and H.264 decode for PitchBlue operating points only (2 ch)
CPL-UDX* U/D/X Converter license upgrade (HD option is also required) for one ChannelPort module (2 ch)
CPL-AVC-INTRA-PLAY* Decode of AVC-Intra for one ChannelPort module (2 ch)
CPL-MAX-GRAPHIC-LAYERS License upgrade to enable the maximum number of graphics layers on a ChannelPort module (2 ch)
CPL-ENHANCED-CHANNEL License upgrade to enable Spectrum Enhanced Channel mode on a ChannelPort module
CPL-INDEP-BRANDING License upgrade to enable Independent SD/HD Branding on a ChannelPort module (2 ch)
CPL-DUAL-DVE License upgrade to enable Dual DVE functionality on a ChannelPort module (2 ch)

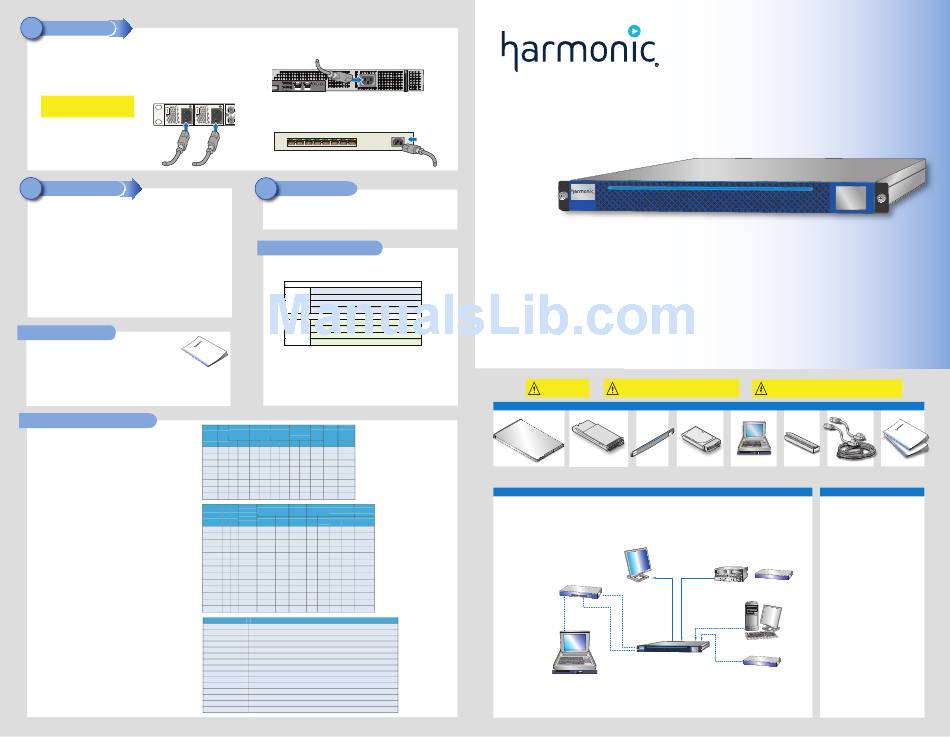

Spectrum™ MediaDeck 7000 Installation Guide
To access the Spectrum MediaDeck 7000 and ChannelPort documentation, go to:
To access the Harmonic SystemManager software and documentation, go to:
Refer to the Spectum MediaDeck 7000 Read Me First in your MediaDeck kit for the password to download the documentation and
software files for the Spectrum MediaDeck 7000 and SystemManager.
Reference Input
Reference Input
Warning: Safe handling
of this system requires
TWO people.
Locate the following items in your Spectrum MediaDeck 7000 kit:

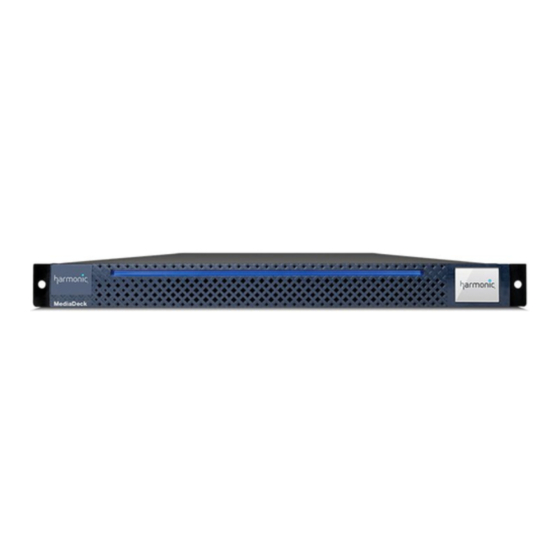

Spectrum MediaDeck 7000 Chassis MediaPort 7000 or ChannelPort
Modules
Sample System Diagram
A sample system is shown below. Customer-supplied components include the following:
• Digital VTR (if an Analog VTR is used, external A-D converters are required)
• Video Monitors
• RS-422 interconnection cables (DB-9 Male to DB-9 Male)
• Audio/Video interconnection cables suitable for SDI and AES signal transmission, and monitoring equipment
• Gigabit Ethernet hub or Gigabit Ethernet switch
• Automation System (optional)
• Emergency Alert System (optional)
• Video router (optional)
Ethernet
SystemManager Platform
or Client PC
* For ChannelPort only.
Note: For complete environmental, power, racking, and cable requirements, refer to the Spectrum MediaDeck 7000 User Guide.
ftp.omneon.com/updates/omneon/current/MediaDeck/
ftp.omneon.com/updates/omneon/current/SystemManager/
Caution: Unpack and place your MediaDeck system on a flat
anti-static surface to perform the following installation procedures
contained in this document.
Bezel Four 2-TB or 4-TB SATA SystemManager Platform
Disk Drives or four 480-GB or Client PC
Solid-State Drives
Ethernet
Switch or Hub
Video Out
Digital VTR or
A/V Out A/V In
GPIO/RS-422
Automation System (optional)
Host
Spectrum MediaDeck 7000
Connections
GPIO/
Emergency Alert
RS-422
System (optional)*
Caution: Electrostatic discharge can damage components. Make sure to wear
an antistatic wrist strap and attach it to a metal part of the MediaDeck chassis
when performing the procedures in this guide.
R a
c k
M o
u n t
K it
Rack Mount Kit Interconnection Cables Documentation Suite
Technical Support
Harmonic Technical Support can be contacted as follows:
For support in the Americas:
Telephone (Toll Free): +1 888 673 4896
Telephone (Local) +1 408 490 6477
Email: omneon.support@harmonicinc.com
For support in Europe, Middle East, and Africa:
Telephone: +44 1252 555 450
Email: omneonemeasupport@harmonicinc.com
For support in Russia and CIS
Telephone: +7 495 926 4608
Email: RUsupport@harmonicinc.com
For support in Japan:
Telephone: +81 3 5565 6737
Email: japansupport@harmonicinc.com
Video Router (optional)* For support in China (mainland):
Telephone: +86 10 8391 3313
Email: chinasupport@harmonicinc.com
For support in Asia Pacific (other territories):
Telephone: +65 6542 0050
Email: apacsupport@harmonicinc.com
For the support page on the Harmonic website:
http://www.harmonicinc.com/services-support
For the support server:
ftp://ftp.omneon.com/Updates/Omneon/Current/
Part Number 28-0357, Revision F.
