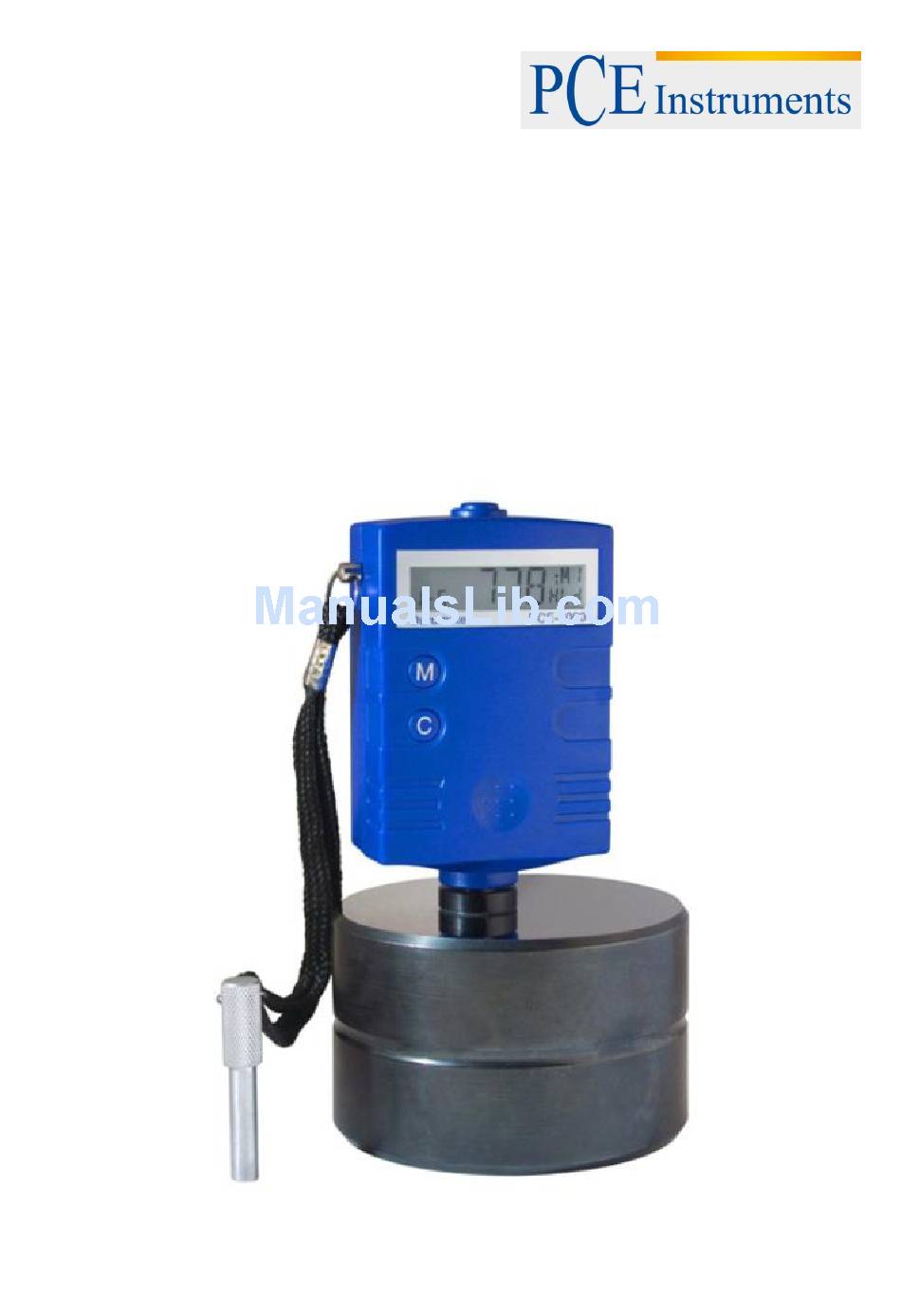

Manual
Durometer PCE-1000
Version 1.0
Date of creation: 07.09.2015
Date of last change: 12.04.2016
PCE Americas Inc.
711 Commerce Way
Suite 8
Jupiter
FL-33458
USA
From outside US: +1
Tel: (561) 320-9162
Fax: (561) 320-9176
info@pce-americas.com
www.pce-instruments.com/english
www.pce-instruments.com
PCE Instruments UK Ltd.
Units 12/13
Southpoint Business Park
Ensign way
Hampshire / Southampton
United Kingdom, SO31 4RF
From outside UK: +44
Tel: (0) 2380 98703 0
Fax: (0) 2380 98703 9
info@pce-instruments.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PCE Instruments PCE-1000
Summary of Contents for PCE Instruments PCE-1000
- Page 1 PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Units 12/13 Suite 8 Southpoint Business Park Jupiter Ensign way FL-33458 Hampshire / Southampton United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0...
-
Page 2: Table Of Contents
Restore factory settings ....................... 11 6.4.9 Return to measurement mode ..................... 11 Measurement ..........................11 Show statistical values ......................12 Calibration..........................12 How to charge the battery ......................12 Disposal ......................... 13 Contact ........................13 PCE Instruments UK ........................ 13 PCE Americas .......................... 13... -
Page 3: Introduction

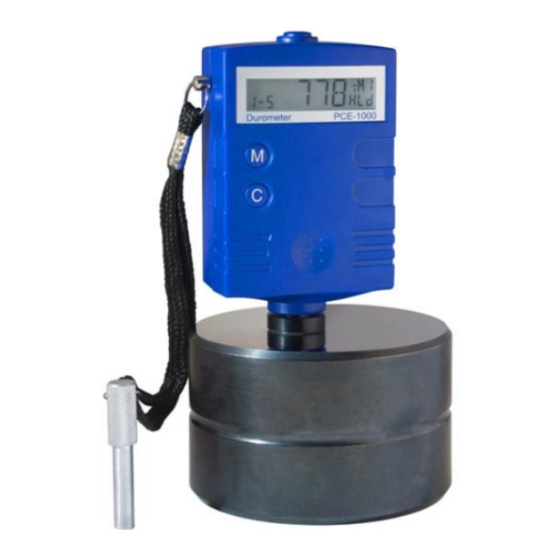

Introduction General Thank you for purchasing a durometer PCE-1000 from PCE Instruments. The PCE-1000 portable hardness tester is ideal for testing the surface hardness of metallic surfaces quickly. In metallurgy, it’s very important to know the hardness of the materials being used and this device allows for the materials to be tested in the factory. -
Page 4: Safety Notes
Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. There is no warranty of damages or injuries caused by non-observance of the manual. -
Page 5: Specifications
Manual Specifications Display LCD with backlight display Accuracy ±3 HL @ HL = 800 (0,4 %) Measurement range 170...960 HL HL, HRC, HRB, HB, HV, HS, HRA, σb Measured units Materials 9 different usable materials Storage 99 records Hydraulic impactor Power Automatically Power supply... -
Page 6: Display
Manual Display Explanations Symbol Meaning Leeb hardness value with a hydraulic impactor D Brinell hardness value Rockwell B hardness value Rockwell C hardness value Shore hardness value Vickers hardness value σb Tensile strength Hydraulic impactor D HLD: 170-960 20,0 – 67,9 59,6 –... -
Page 7: Operation
Manual Operation Preparations before the measurement 6.1.1 Sample Type of hydraulic impactor Classification of samples in weight classes Heavy Medium-weight Light 2 … 5 kg 0,05 … 2 kg >5 kg Please note that the hydraulic impactor is shortly subjected to a relatively high impact force, considering his low mass and his impact energy, when it impinges on the surface. -
Page 8: Coupling
Manual 6.1.2 Coupling The coupling surface between test object and base plate should be flat, levelled and straight. Apply a thin and evenly layer of coupling compound to the contact surface of the test object. Press the test object tightly onto the subsurface by turning it. The direction of impact should be vertical to the coupled surface. -
Page 9: Switch On
Manual Switch on Press the release button on top of the device and it will switch to measuring mode. Menu Press the “M”—button and hold it. Eventually the word “MENU” blinks. This is how you get to the point where the direction of impact can be set (“DIRE”). Keep pressing “M” until you get to the point where you can set the material attributes (“MATE”), hardness scale (“CONV”) and the mean time (“AVER”). -
Page 10: Mean Time
Manual 6.4.4 Mean time After you got to the point “AVER”, press C until the desired mean time (0, 3, 4, 5) is reached. By choosing 0 no mean time is set. 6.4.5 Storage After you got to the point “SAVE”, press C once or twice, depending on if you want switch on or switch off the storage function. -
Page 11: Restore Factory Settings
Manual 6.4.8 Restore factory settings After you got to the point “DSET”, press C to choose between “ESC” to abort and “rdS” to restore the factory settings. By pressing “C” you confirm your selection. 6.4.9 Return to measurement mode Press “M” once again to return to the measurement mode. The durometer will display “000”. Measurement 1. -
Page 12: Show Statistical Values
Manual Show statistical values After measuring with certain mean times, press „M“ several times, if needed. By pressing it once the display will indicate the average value, by pressing it twice it will display the maximum value and by pressing it three times, the minimum value will be shown. Note: In case there is a value during the measurement which is unrealistic, you have to press “C”... -
Page 13: Disposal
In order to comply with the EU directive 2012/19/EU we take our devices back. We either re-use them or give them to a recycling company which disposes of the devices in line with law. If you have any questions, please contact PCE Instruments Contact If you have any questions about our range of products or measuring instruments please contact PCE Instruments.
