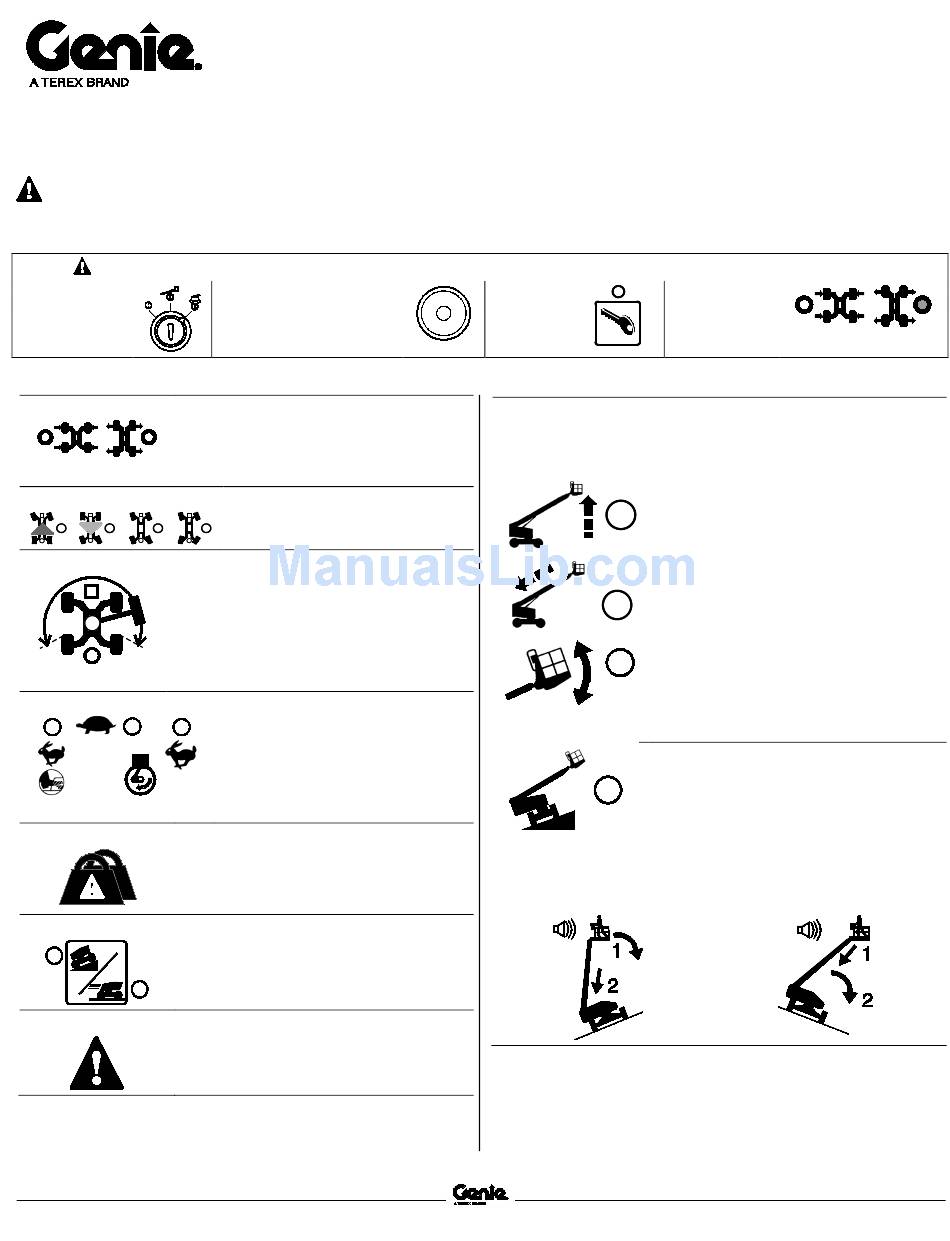

Genie S-100 Quick Reference Manual

S-100 from SN 15D-1001
S-105 from SN 15D-983
This Quick Reference Guide is intended for operators who are properly trained to safely operate the machine.

Getting Started:

Step 1: Read the Operators Manual and Perform the pre-operation inspections and tests.
Step 2
Turn to platform
position.

Controls and Indicators:

Axle Extend

Axle extend and retract indicator lights will
flash while the axles are moving. Axle extend
indicator light will stay on when the axles are
fully extended. Axle retract indicator light will
stay on when the axles are fully retracted.

Steer Mode

Drive Enable

Light on indicates that the boom has moved
past a circle-end tire and the drive function has
been interrupted. To drive, push the drive
enable button and slowly move the drive/steer
control handle off center. Use the color-coded
direction arrows on the platform box and drive
chassis to identify the direction the machine
will travel.

Engine idle select

Platform Overload

Light flashing indicates the platform is
overloaded. The engine will stop and no
functions will operate. Remove weight from
the platform until the light goes off and then
restart the engine.

Drive Select

Machine on incline symbol: Low range
operation for inclines.
Machine on level surface symbol: High
range operation for maximum drive speed.

Fault Indicator Light

Light on indicates the machine has one or
more faults. Faults are abnormal conditions
that exist due to component failure or system
misuse. See the appropriate service manual.
Quick Reference Guide
Genie S-100 • Genie S-105 • Genie S-120
Genie S-125 • Genie S-100HD • Genie S-120HD
S-120 from SN 15D-1012
S-125 from SN 15D-984
Step 3
Pull out Red Emergency
Stop buttons.
The indicator light next to the current
steer mode will be on.
Rabbit and foot switch symbol light on
indicates foot switch activated high idle
is selected.
Rabbit symbol light on indicates high
idle is selected.
Turtle symbol light on indicates low idle
is selected.
S-100 • S-105 • S-120 • S-125 • S-100HD • S-120HD
S-100HD from SN S100HD15D-212
S-120HD from SN S120HD15D-208
Step 4
Start
Engine.

Operating Envelope Indicator Lights

The operating envelope indicator lights will come on to notify the
operator that a function has been interrupted and/or an action is
required by the operator.
Raise Boom light flashing: To continue
extending the boom, raise the boom until the
indicator light is off.
Retract Boom light flashing: To continue
lowering the boom, retract the boom until the
indicator light is off.
Platform Not Level light flashing: The tilt
alarm will be sounding when this light is
flashing. The Platform Level toggle switch
will only work in the direction that will level
the platform. Level the platform until the
indicator light is off.
Machine Not Level Light Flashing: If the tilt
alarm sounds when the platform is raised, the
Not Level indicator light will come on and the
drive function in one or both directions will not
operate.
Follow the correct boom lowering sequence
below based on the platform position. Do not
rotate the boom while lowering.

Uphill Position

S-100 • S- 105 • S- 120 • S-125 • S-100HD • S-120HD Quick Refer enc e Gui de Janu ar y 2017
January 2017
Step 5
Verify axles
are extended.

Downhill Position

Genie S- 100 • Geni e S- 105 • Geni e S-120 Genie S-125 • Genie S- 100HD • Geni e Rev A
S-120HD
Rev A
