I n d u s t r i a l M o t h e r b o a r d

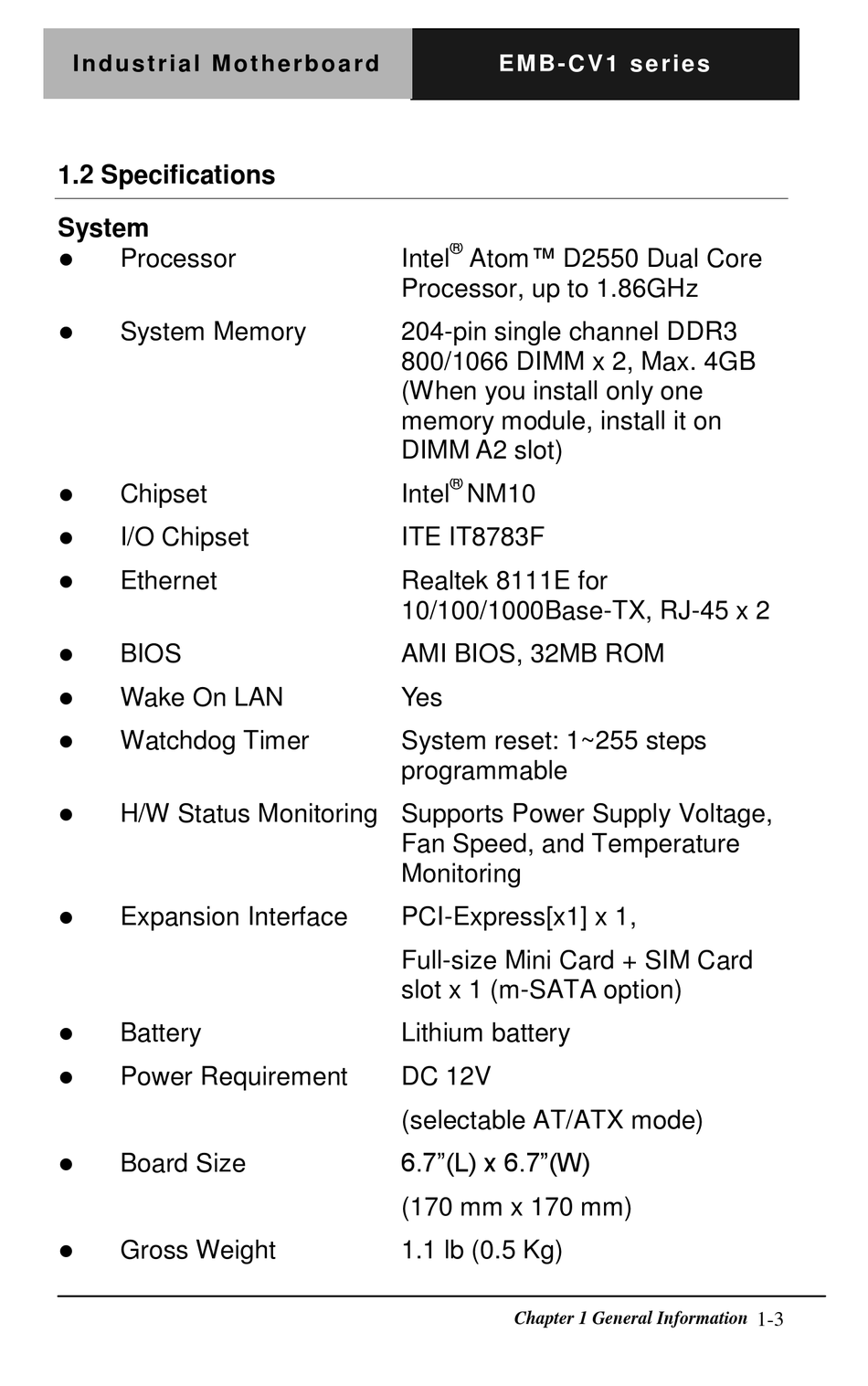

1.2 Specifications
System
Processor
System Memory
Chipset
I/O Chipset
Ethernet
BIOS
Wake On LAN
Watchdog Timer
H/W Status Monitoring Supports Power Supply Voltage,
Expansion Interface
Battery
Power Requirement
Board Size
Gross Weight
E M B - C V 1 s e r i e s
®
Intel
Atom™ D2550 Dual Core
Processor, up to 1.86GHz
204-pin single channel DDR3
800/1066 DIMM x 2, Max. 4GB
(When you install only one
memory module, install it on
DIMM A2 slot)
®
Intel
NM10
ITE IT8783F
Realtek 8111E for
10/100/1000Base-TX, RJ-45 x 2
AMI BIOS, 32MB ROM
Yes
System reset: 1~255 steps
programmable
Fan Speed, and Temperature
Monitoring
PCI-Express[x1] x 1,
Full-size Mini Card + SIM Card
slot x 1 (m-SATA option)
Lithium battery
DC 12V
(selectable AT/ATX mode)
6.7"(L) x 6.7"(W)
(170 mm x 170 mm)
1.1 lb (0.5 Kg)
Chapter 1 General Information
1-3
