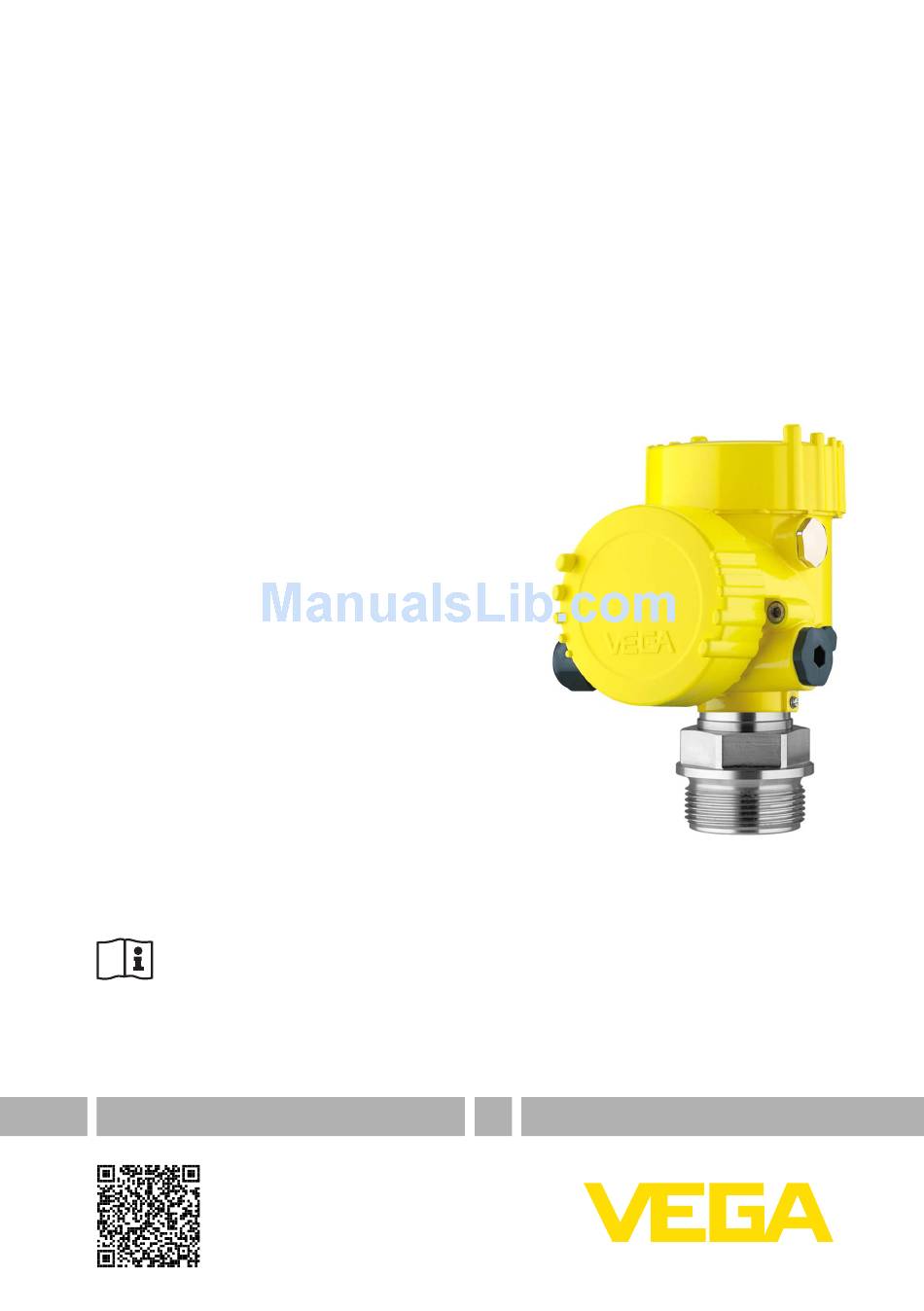

Quick setup guide
Pressure transmitter with ceramic
measuring cell
VEGABAR 82
Modbus and Levelmaster protocol
Document ID: 46311

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGABAR 82 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vega VEGABAR 82

  • Page 1 Quick setup guide Pressure transmitter with ceramic measuring cell VEGABAR 82 Modbus and Levelmaster protocol Document ID: 46311...
  • Page 2: Table Of Contents

    You can find supplementary information in the corresponding, more detailed Operating Instructions Manual as well as the Safety Manual that comes with instruments with SIL qualification. These manuals are available on the supplied DVD or in the download area of "www.vega. com". Operating instructions VEGABAR 82 - Modbus and Levelmaster protocol: Document-ID 46294 Editing status of the quick setup guide: 2016-02-04...
  • Page 3: For Your Safety

    During work on and with the device the required personal protective equipment must always be worn. Appropriate use The VEGABAR 82 is a pressure transmitter for process pressure and hydrostatic level measurement. You can find detailed information about the area of application in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.
  • Page 4: Permissible Process Pressure

    That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfill this obligation by observing the environmental instructions in this manual: • Chapter "Packaging, transport and storage" • Chapter "Disposal" VEGABAR 82 • Modbus and Levelmaster protocol...
  • Page 5: Product Description

    Go to www.vega.com "VEGA Tools" and "Instrument search". Enter the serial number. Alternatively, you can access the data via your smartphone: • Download the smartphone app "VEGA Tools" from the "Apple App Store" or the "Google Play Store" • Scan the Data Matrix code on the type label of the instrument or •...
  • Page 6: Mounting

    Fig. 2: Position of the filter element - non-Ex, Ex-ia and Ex-d-ia version Single chamber housing plastic, stainless steel (precision casting) Single chamber housing Aluminium Single chamber housing, stainless steel electropolished Double chamber housing plastic Double chamber housing Aluminium Filter element VEGABAR 82 • Modbus and Levelmaster protocol...
  • Page 7 3 Mounting With the following instruments a blind plug is installed instead of the filter element: • Instruments in protection IP 66/IP 68 (1 bar) - ventilation via capil- laries in non-detachable cable • Instruments with absolute pressure VEGABAR 82 • Modbus and Levelmaster protocol...
  • Page 8: Connecting To Power Supply And Bus System

    4. Insert the cable into the sensor through the cable entry Fig. 3: Connection steps 5 and 6 5. Insert the wire ends into the terminals according to the wiring plan Information: Solid cores as well as flexible cores with wire end sleeves are insert- ed directly into the terminal openings. In case of flexible cores without end sleeves, press the terminal from above with a small screwdriver, the terminal opening is then free. When the screwdriver is released, the terminal closes again. VEGABAR 82 • Modbus and Levelmaster protocol...
  • Page 9: Wiring Plan

    (sensor electronics) Terminal compartment Electronics compartment Terminal compartment MODBUS power supply off on Fig. 5: Terminal compartment USB interface Slide switch for integrated termination resistor (120 Ω) Modbus signal Voltage supply VEGABAR 82 • Modbus and Levelmaster protocol...
  • Page 10 4 Connecting to power supply and bus system Terminal Function Polarity Voltage supply Voltage supply Modbus signal D0 Modbus signal D1 Functional ground with instal- lation according to CSA VEGABAR 82 • Modbus and Levelmaster protocol...
  • Page 11: Set Up The Sensor With The Display And Adjustment Module

    Parameter adjustment - Quick setup To quickly and easily adapt the sensor to the application, select the menu item "Quick setup" in the start graphic on the display and adjustment module. Carry out the following steps in the below sequence. VEGABAR 82 • Modbus and Levelmaster protocol...
  • Page 12 In this menu item you carry out the max. adjustment for level Enter the percentage value and the corresponding value for the max. level. 6. Min. adjustment In this menu item you carry out the min. adjustment for level VEGABAR 82 • Modbus and Levelmaster protocol...
  • Page 13: Parameter Adjustment - Extended Adjustment

    "Setup" should be selected one after the other and provided with the correct parameters. If possible, go through the items in the given sequence. The procedure is described below. The following submenu points are available: The submenu points described below. VEGABAR 82 • Modbus and Levelmaster protocol...
  • Page 14 Current output in % Displayed value 2 Ceramic measuring cell: Measuring cell tempera- ture in °C Metallic measuring cell: Electronics temperature in °C Display format 1 and 2 Number of positions after the decimal point, auto- matically Backlight Switched on VEGABAR 82 • Modbus and Levelmaster protocol...
  • Page 15 0 … 100 °C correspond to 4 … 20 mA HART mode Address 0 Menu - Info Menu item Parameter Device name VEGABAR 8. Instrument version Hardware and software version Factory calibration Date date Sensor characteristics Order-specific characteristics VEGABAR 82 • Modbus and Levelmaster protocol...
  • Page 16: Supplement

    0.2 … 2.5 mm² (AWG 24 … 14) Ʋ Stranded wire with end sleeve 0.2 … 1.5 mm² (AWG 24 … 16) Voltage supply Operating voltage 8 … 30 V DC Power consumption < 500 mW Reverse voltage protection Integrated VEGABAR 82 • Modbus and Levelmaster protocol...
  • Page 17 Notes VEGABAR 82 • Modbus and Levelmaster protocol...
  • Page 18 Notes VEGABAR 82 • Modbus and Levelmaster protocol...
  • Page 19 Notes VEGABAR 82 • Modbus and Levelmaster protocol...
  • Page 20 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2016 VEGA Grieshaber KG Phone +49 7836 50-0 Am Hohenstein 113...
