Vega VEGABAR 82 Operating Instructions Manual

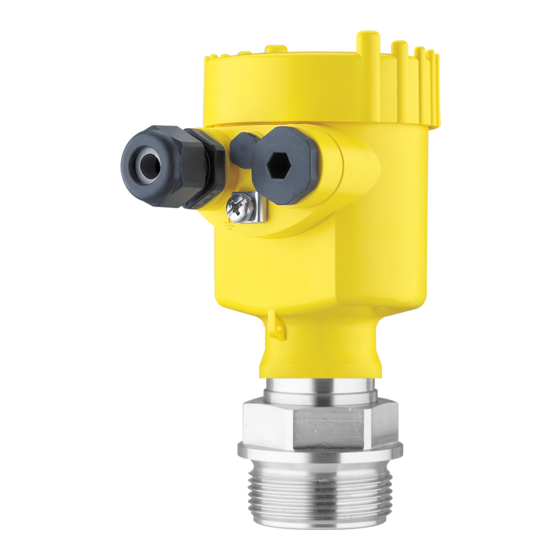

Pressure transmitter with ceramic measuring cell
Hide thumbs Also See for VEGABAR 82:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Instructions Manual

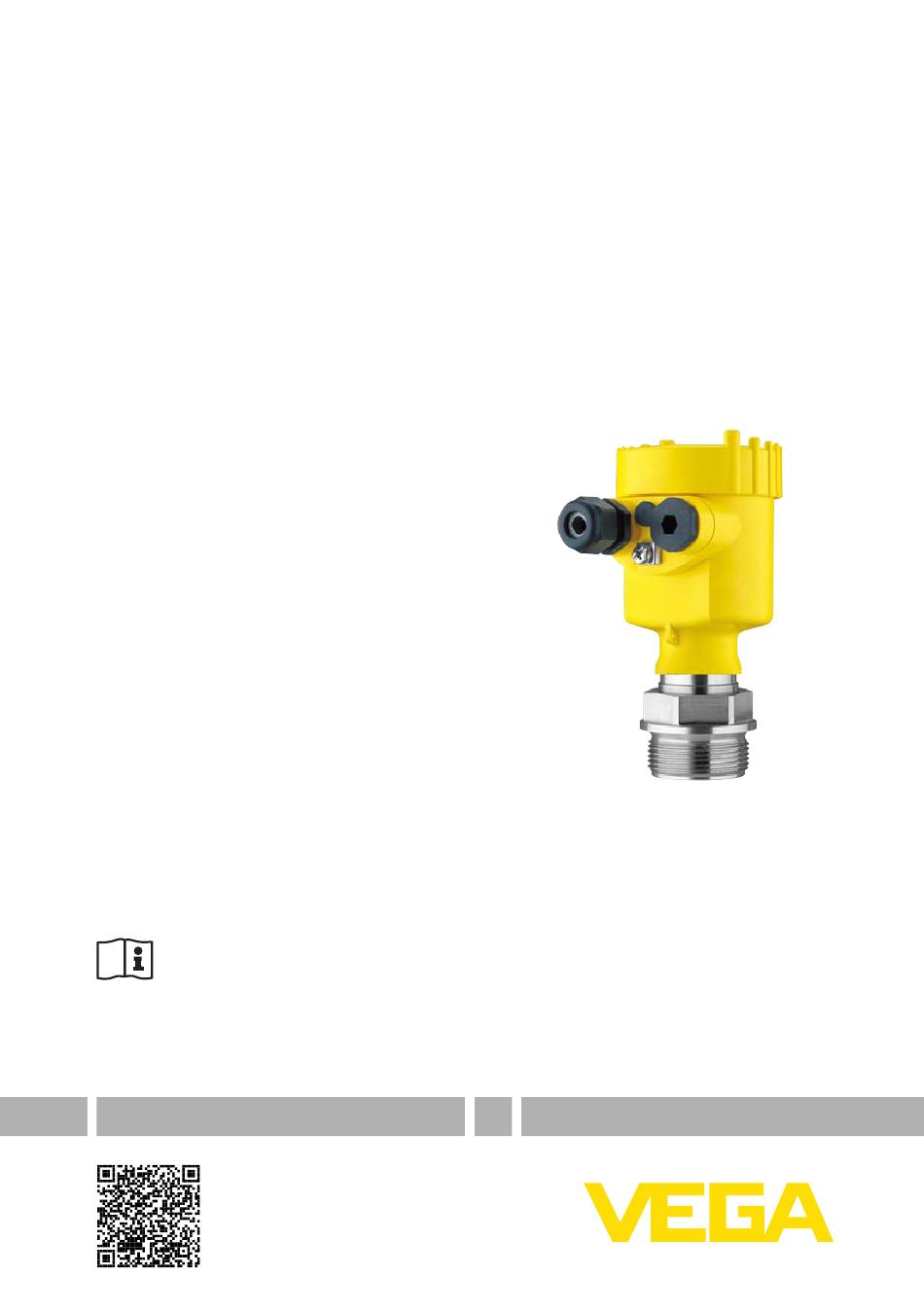

Operating Instructions
Pressure transmitter with ceramic
measuring cell
VEGABAR 82
4 ... 20 mA
Document ID: 45027

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGABAR 82 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vega VEGABAR 82

Summary of Contents for Vega VEGABAR 82

  • Page 1 Operating Instructions Pressure transmitter with ceramic measuring cell VEGABAR 82 4 … 20 mA Document ID: 45027...

  • Page 2: Table Of Contents

    Parameter adjustment - Extended adjustment..............32 Saving the parameterisation data ................... 45 Setup with PACTware ......................46 Connect the PC ......................46 Parameter adjustment with PACTware ................46 Saving the parameterisation data ................... 47 VEGABAR 82 • 4 … 20 mA...
  • Page 3 10.5 Industrial property rights ....................81 10.6 Trademark ........................81 Safety instructions for Ex areas Take note of the Ex specific safety instructions for Ex applications. These instructions are attached as documents to each instrument with Ex approval and are part of the operating instructions. Editing status: 2019-03-11 VEGABAR 82 • 4 … 20 mA...

  • Page 4: About This Document

    Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, tip, note This symbol indicates helpful additional information.

  • Page 5: For Your Safety

    During work on and with the device, the required personal protective equipment must always be worn. Appropriate use The VEGABAR 82 is a pressure transmitter for process pressure and hydrostatic level measurement. You can find detailed information about the area of application in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.

  • Page 6: Eu Conformity

    For further information see www.namur.de. Installation and operation in the USA and Canada This information is only valid for USA and Canada. Hence the follow- ing text is only available in the English language. VEGABAR 82 • 4 … 20 mA...

  • Page 7: Environmental Instructions

    That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: • Chapter "Packaging, transport and storage" • Chapter "Disposal" VEGABAR 82 • 4 … 20 mA...

  • Page 8: Product Description

    Power supply and signal output, electronics Technical data Order number Serial number of the instrument QR code Symbol of the device protection class ID numbers, instrument documentation 10 Reminder to observe the instrument documentation VEGABAR 82 • 4 … 20 mA...

  • Page 9: Principle Of Operation

    Scan the Data Matrix code on the type label of the instrument or • Enter the serial number manually in the app Principle of operation Application area VEGABAR 82 is suitable for applications in virtually all industries. It is used for the measurement of the following pressure types. • Gauge pressure •...
  • Page 10 The ambient pressure is detected through a reference sensor in the electronics and compensated. It thus has no influence on the measured value. Seal concepts The following presentations show examples for the installation of the ceramic measuring cell into the process fitting and the different seal concepts. VEGABAR 82 • 4 … 20 mA...
  • Page 11 Fig. 5: Front-flush installation of the measuring cell (example: thread G1½) Seal for the process fitting Measuring cell Seal for the measuring cell Process fitting Diaphragm Completely front-flush The completely front-flush mounting is particularly suitable for ap- mounting with single seal plications in the paper industry. The diaphragm is in the pulp flow, is hence cleaned and protected against buildup. VEGABAR 82 • 4 … 20 mA...
  • Page 12 The form seal of the measuring cell protects also the glass joint. Fig. 8: Hygienic installation of the measuring cell (example: hygienic fitting with compression nut) Measuring cell Form seal for the measuring cell Gap-free seal for process fitting Process fitting Diaphragm VEGABAR 82 • 4 … 20 mA...

  • Page 13: Supplementary Cleaning Procedures

    Caution: The VEGABAR 82 in this version may not be used in oxygen ap- plications. For this purpose, instruments are available in the special version "Oil and grease-free for oxygen applications".

  • Page 14: Accessories And Replacement Parts

    DIN 2501, EN 1092-1, BS 10, ASME B 16.5, JIS B 2210-1984, GOST 12821-80. Welded sockets and Welded sockets are used to connect the sensors to the process, adapters threaded adapters for adaptation of the sensor with threaded fitting G¾ or G1½ to existing welded sockets. VEGABAR 82 • 4 … 20 mA...

  • Page 15: Mounting

    Tightening can cause damage, e. g. to the rotation mechanism of the housing. Vibrations If there is strong vibration at the mounting location, the instrument version with external housing should be used. See chapter "External housing". VEGABAR 82 • 4 … 20 mA...

  • Page 16: Ventilation And Pressure Compensation

    When quickly opening/closing the housing cover, the measured value can change for approx. 5 s by up to 15 mbar. For an effective ventilation, the filter element must be always free from buildup. In case of horizontal mounting, turn the housing so that the filter element points downward after the instrument is installed. This provides better protection against buildup. Caution: Do not use a high-pressure cleaner. The filter element could be dam- aged, which would allow moisture into the housing. The following paragraphs describe how the filter element is arranged in the different instrument versions. VEGABAR 82 • 4 … 20 mA...
  • Page 17 This provides better protection against buildup. Fig. 12: Position of the filter element - Ex-d version Rotatable metal ring Filter element Instruments with absolute pressure have a blind plug mounted instead of the filter element. VEGABAR 82 • 4 … 20 mA...

  • Page 18: Process Pressure Measurement

    Instruments with absolute pressure have a blind plug mounted instead of the filter element. Process pressure measurement Measurement setup in Keep the following in mind when setting up the measuring system: gases • Mount the instrument above the measuring point Possible condensation can then drain off into the process line. VEGABAR 82 • 4 … 20 mA...
  • Page 19 Siphon in U or circular form Pipeline A protective accumulation of water is formed through condensation in the pipe bends. Even in applications with hot steam, a medium temperature < 100 °C on the transmitter is ensured. VEGABAR 82 • 4 … 20 mA...

  • Page 20: Level Measurement

    • Mount the instrument below the min. level • Do not mount the instrument close to the filling stream or emptying area • Mount the instrument so that it is protected against pressure shocks from the stirrer Fig. 18: Measurement setup for level measurement VEGABAR 82 • 4 … 20 mA...

  • Page 21: External Housing

    4 Mounting External housing Configuration Fig. 19: Configuration, process module, external housing Pipeline Process module Connection cable process assembly - External housing External housing Signal cable VEGABAR 82 • 4 … 20 mA...

  • Page 22: Connecting To Power Supply

    In electroplating plants as well as plants for cathodic corrosion protec- tion it must be taken into account that significant potential differences exist. This can lead to unacceptably high currents in the cable screen if it is grounded at both ends. VEGABAR 82 • 4 … 20 mA...

  • Page 23: Connecting

    4. Remove approx. 10 cm (4 in) of the cable mantle, strip approx. 1 cm (0.4 in) of insulation from the ends of the individual wires 5. Insert the cable into the sensor through the cable entry VEGABAR 82 • 4 … 20 mA...
  • Page 24 9. Tighten the compression nut of the cable entry gland. The seal ring must completely encircle the cable 10. Reinsert the display and adjustment module, if one was installed 11. Screw the housing lid back on The electrical connection is finished. VEGABAR 82 • 4 … 20 mA...

  • Page 25: Ex-D-Ia Double Chamber Housing

    Fig. 22: Connection compartment - Ex-d-ia double chamber housing Voltage supply, signal output Ground terminal for connection of the cable screening Single chamber housing The following illustration applies to the non-Ex as well as to the Ex-ia version. VEGABAR 82 • 4 … 20 mA...

  • Page 26: Housing Ip 66/Ip 68 (1 Bar)

    Brown (+) and blue (-) to power supply or to the processing system Shielding External housing with version IP 68 (25 bar) Overview Fig. 25: VEGABAR 82 in IP 68 version 25 bar with axial cable outlet, external housing Transmitter Connection cable External housing VEGABAR 82 •...
  • Page 27 Cable gland for voltage supply Cable gland for connection cable, transmitter Terminal compartment, housing socket 1 2 3 4 Fig. 27: Connection of the process component in the housing base Yellow White Black Shielding Breather capillaries VEGABAR 82 • 4 … 20 mA...

  • Page 28: Switch-On Phase

    Output signal at instruments with current output jumps to the set fault current Then the actual measured value is output to the signal cable. The value takes into account settings that have already been carried out, e.g. default setting. VEGABAR 82 • 4 … 20 mA...

  • Page 29: Set Up With The Display And Adjustment Module

    Fig. 29: Installing the display and adjustment module in the electronics compart- ment of the single chamber housing Note: If you intend to retrofit the instrument with a display and adjustment module for continuous measured value indication, a higher lid with an inspection glass is required. VEGABAR 82 • 4 … 20 mA...

  • Page 30: Adjustment System

    The pen oper- ates the four keys of the display and adjustment module right through the closed lid (with inspection window) of the sensor housing. VEGABAR 82 • 4 … 20 mA...

  • Page 31: Measured Value Indication

    With the "OK" key you move (during the initial setup of the instrument) to the selection menu "Language". Selection language In this menu item, you can select the national language for further parameterization. VEGABAR 82 • 4 … 20 mA...

  • Page 32: Parameter Adjustment - Quick Setup

    Setup: Settings, e.g., for measurement loop name, application, units, position correction, adjustment, signal output Display: Settings, e.g., for language, measured value display, lighting Diagnosis: Information, e.g. on instrument status, pointer, measure- ment reliability, simulation VEGABAR 82 • 4 … 20 mA...
  • Page 33 In this menu item you activate/deactivate the slave sensor for elec- tronic differential pressure and select the application. VEGABAR 82 can be used for process pressure and level measure- ment. The setting in the delivery status is process pressure measure- ment. The mode can be changed in this adjustment menu.
  • Page 34 Setup - Adjustment VEGABAR 82 always measures pressure independently of the pro- cess variable selected in the menu item "Application". To output the selected process variable correctly, an allocation of the output signal to 0 % and 100 % must be carried out (adjustment).
  • Page 35 1. Select the menu item "Setup" with [->] and confirm with [OK]. Now select with [->] the menu item "Zero adjustment" and confirm with [OK]. 2. Edit the mbar value with [OK] and set the cursor to the requested position with [->]. VEGABAR 82 • 4 … 20 mA...
  • Page 36 [OK]. The span adjustment is finished. Setup - Min. adjustment Proceed as follows: Level 1. Select the menu item "Setup" with [->] and confirm with [OK]. Now select with [->] the menu item "Adjustment", then "Min. adjustment" and confirm with [OK]. VEGABAR 82 • 4 … 20 mA...
  • Page 37 - and the indication or output of the volume is required. Corresponding linearization curves are preprogrammed for these vessels. They represent the correlation between the level per- centage and vessel volume. The linearization applies to the measured value indication and the current output. VEGABAR 82 • 4 … 20 mA...
  • Page 38 In the menu item "Lock/unlock adjustment" you safeguard the sensor justment parameters against unauthorized or unintentional modifications. With active PIN, only the following adjustment functions are possible without entering a PIN: The device assumes an approximately constant temperature and static pressure and converts the differential pressure into the flow rate via the characteristic curve extracted by root. VEGABAR 82 • 4 … 20 mA...
  • Page 39 Polish • Czech • Turkish In delivery status, the VEGABAR 82 is set to English. Display - Displayed value In this menu item, you define which measured value is displayed. 1 and 2 The setting in the delivery status for the display value is "Lin. percent". Display - Display format...
  • Page 40 In this menu item you can simulate measured values. This allows the signal path to be tested, e.g. through downstream indicating instru- ments or the input card of the control system. Select the requested simulation variable and set the requested value. VEGABAR 82 • 4 … 20 mA...
  • Page 41 Unit of measurement mbar (with nominal measuring range ≤ 400 mbar) bar (with nominal measuring ranges ≥ 1 bar) Temperature unit °C Position correction 0.00 bar Zero/Min. adjustment 0.00 bar Adjustment 0.00 % Span/Max. adjustment Nominal measuring range in bar 100.00 % Damping Integration time Linearization Linear VEGABAR 82 • 4 … 20 mA...
  • Page 42 0 % corresponds to 0 l 100 % corresponds to 0 l Current output Current output - Meas. Lin. percent - Level variable Current output - Adjust- 0 … 100 % correspond to 4 … 20 mA ment VEGABAR 82 • 4 … 20 mA...
  • Page 43 0 % and 100 %. Additional settings - Cur- In menu item "Current output, variable" you specify which measured rent output (size) variable is output via the current output. VEGABAR 82 • 4 … 20 mA...
  • Page 44 In this menu item, the date of factory calibration of the sensor as well date as the date of the last change of sensor parameters are displayed via the display and adjustment module or via the PC. VEGABAR 82 • 4 … 20 mA...

  • Page 45: Saving The Parameterisation Data

    In the display and adjust- If the instrument is equipped with a display and adjustment module, ment module the parameter adjustment data can be saved therein. The procedure is described in menu item "Copy device settings". VEGABAR 82 • 4 … 20 mA...

  • Page 46: Setup With Pactware

    Further setup steps are described in the operating instructions manu- al "DTM Collection/PACTware" attached to each DTM Collection and which can also be downloaded from the Internet. Detailed descrip- tions are available in the online help of PACTware and the DTMs. VEGABAR 82 • 4 … 20 mA...

  • Page 47: Saving The Parameterisation Data

    The standard version is available as a download under www.vega.com/downloads and "Software". The full version is avail- able on CD from the agency serving you. Saving the parameterisation data We recommend documenting or saving the parameterisation data via PACTware.

  • Page 48: Diagnostics And Servicing

    Overview The hygienic connection with compression nut can be disassembled and the diaphragm cleaned. The following graphic shows the structure: Fig. 35: VEGABAR 82, structure of the hygienic connection with compression Hexagon Compression nut Process fitting Process module...

  • Page 49: Diagnosis Function

    Send instrument for repair Communication error • • F260 Error in the calibration carried out in the Exchanging the electronics • factory Send instrument for repair Error in the calibration • Error in the EEPROM VEGABAR 82 • 4 … 20 mA...
  • Page 50 Tab. 7: Error codes and text messages, information on causes as well as corrective measures Maintenance Code Cause Rectification Text message • • M500 The data could not be restored during Repeat reset • the reset to delivery status Load XML file with sensor data into the Error in the delivery sta- sensor VEGABAR 82 • 4 … 20 mA...

  • Page 51: Rectify Faults

    • Checking the output signal • Treatment of measurement errors A smartphone/tablet with the VEGA Tools app or a PC/notebook with the software PACTware and the suitable DTM offer you further com- prehensive diagnostic possibilities. In many cases, the causes can be determined in this way and the faults eliminated.

  • Page 52: Exchange Process Module On Version Ip 68 (25 Bar)

    Proceed as follows when carrying out the exchange: 1. Losen the fixing screw with the hexagon key wrench 2. Carefully detach the cable assembly from the process module Fig. 36: VEGABAR 82 in IP 68 version, 25 bar and lateral cable outlet, external housing Process module Plug connector...

  • Page 53: Exchanging The Electronics Module

    You can find an instrument return form as well as detailed informa- tion about the procedure in the download area of our homepage: www.vega.com. By doing this you help us carry out the repair quickly and without having to call back for needed information. In case of repair, proceed as follows: •...
  • Page 54 • Attach the completed form and, if need be, also a safety data sheet outside on the packaging • Ask the agency serving you to get the address for the return ship- ment. You can find the agency on our home page www.vega.com. VEGABAR 82 • 4 … 20 mA...

  • Page 55: Dismount

    Pass the instrument directly on to a specialised recycling company and do not use the municipal collecting points. If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. VEGABAR 82 • 4 … 20 mA...

  • Page 56: Supplement

    Polycarbonate (UL-746-C listed), glass Ʋ Ground terminal 316L External housing - deviating materials Ʋ Housing and socket Plastic PBT (Polyester), 316L Ʋ Socket seal EPDM Glass with Aluminium and stainless steel precision casting housing VEGABAR 82 • 4 … 20 mA...
  • Page 57 (only for measuring cell ø 28 mm) 0 … +0.1 bar/0 … +10 kPa +15 bar/+1500 kPa -0.2 bar/-20 kPa Only for 316L with 3A approval Between transmitter and external electronics housing. Fix connected to the sensor. VEGABAR 82 • 4 … 20 mA...
  • Page 58 Nominal range Overload capability Maximum pressure Minimum pressure Gauge pressure 0 … +0.4 psig (only for measuring cell ø 28 mm) +75 psig -0.7 psig 0 … +1.5 psig +225 psig -3 psig VEGABAR 82 • 4 … 20 mA...
  • Page 59 Adjustment ranges Specifications refer to the nominal measuring range, pressure values lower than -1 bar cannot be Min./Max. adjustment: Ʋ Percentage value -10 … 110 % Ʋ Pressure value -20 … 120 % Zero/Span adjustment: Ʋ Zero -20 … +95 % Ʋ Span -120 … +120 % VEGABAR 82 • 4 … 20 mA...
  • Page 60 : dead time; t : rise time; t : jump response time Process variable Output signal VEGABAR 82 VEGABAR 82 - IP 68 (25 bar) Dead time ≤ 25 ms ≤ 50 ms Rise time (10 … 90 %) ≤ 55 ms ≤ 150 ms Step response time (ti: 0 s, 10 … 90 %) ≤ 80 ms...
  • Page 61 4 … 20 mA and refers to the set span. Turn down (TD) is the ratio "nominal measuring range/set span". The thermal change of the zero signal and output span corresponds to the temperature error F chapter "Calculation of the total deviation (according to DIN 16086)". VEGABAR 82 • 4 … 20 mA...
  • Page 62 < 0.05 %/10 K, max. < 0.15 %, each with -40 … +80 °C (-40 … +176 °F) The thermal change of the current output corresponds to the value F in chapter "Calculation of the total deviation (according to DIN 16086)". VEGABAR 82 • 4 … 20 mA...
  • Page 63 -1 … 10 bar/-100 … 1000 kPa -15 … 150 psig -1 … 25 bar/-100 … 2500 kPa -15 … 350 psig -1 … 60 bar/-100 … 6000 kPa -15 … 900 psig VEGABAR 82 • 4 … 20 mA...
  • Page 64 -15 … +130 °C (-4 … +266 °F) -15 … +150 °C (5 … +302 °F) Chemraz 535 -30 … +130 °C (-22 … +266 °F) Temperature derating With process fitting PVDF, process temperature max. 100 °C (212 °F). Measuring cell ø 28 mm VEGABAR 82 • 4 … 20 mA...
  • Page 65 100 °C -40 °C (212 °F) (266 °F) (-104 °F) -40 °C (-104 °F) Fig. 40: Temperature derating VEGABAR 82, version up to +130 °C (+266 °F) Process temperature Ambient temperature 80 °C (176 °F) 50 °C (122 °F) 0 °C (32 °F)
  • Page 66 25 mm (0.985 in) Ʋ Diameter approx. 8 mm (0.315 in) Ʋ Material PE, PUR Ʋ Colour Black, blue IP 66/IP 68 (0.2 bar), only with absolute pressure. Breather capillaries not with Ex-d version. VEGABAR 82 • 4 … 20 mA...
  • Page 67 Ʋ Ex-ia instrument 9.6 … 30 V DC Operating voltage U with lighting switched on Ʋ Non-Ex instrument 16 … 35 V DC Ʋ Ex-ia instrument 16 … 30 V DC Reverse voltage protection Integrated VEGABAR 82 • 4 … 20 mA...

  • Page 68: Calculation Of The Total Deviation

    Instruments with approvals can have different technical specifications depending on the version. For that reason the associated approval documents of these instruments have to be carefully noted. They are part of the delivery or can be downloaded under www.vega.com, "Instrument search (serial number)" as well as in the download area. 10.2 Calculation of the total deviation The total deviation of a pressure transmitter indicates the maximum measurement error to be ex- pected in practice.

  • Page 69: Calculation Of The Total Deviation - Practical Example

    Pressure measurement in the pipeline 4 bar (400 KPa) Product temperature up to 50 °C VEGABAR 82 with measuring range 10 bar, deviation < 0.2 %, process fitting G1½ (measuring cell ø 28 mm) 1. Calculation of the Turn down TD = 10 bar/4 bar, TD = 2.5 : 1 VEGABAR 82 • 4 … 20 mA...
  • Page 70 < 0.01 % x TD 0.1 % < 0.1 % < 0.02 % x TD 0.2 % < 0.2 % < 0.04 % x TD Tab. 25: Determination of the deviation from table: F = 0.2 % VEGABAR 82 • 4 … 20 mA...

  • Page 71: Dimensions

    The example shows that the measurement error in practice can be considerably higher than the basic deviation. Reasons are temperature influence and Turn down. 10.4 Dimensions The following dimensional drawings represent only an extract of the possible versions. Detailed dimensional drawings can be downloaded at www.vega.com under "Downloads" and "Drawings". VEGABAR 82 • 4 … 20 mA...
  • Page 72 9 mm/0.35 in or 18 mm/0.71 in higher) Plastic single chamber (IP 66/IP 67) Aluminium - single chamber Stainless steel single chamber (electropolished) Stainless steel single chamber (precision casting) Stainless steel single chamber (electropolished) IP 69K VEGABAR 82 • 4 … 20 mA...
  • Page 73 8 mm (0.12") (0.32") 110 mm x 90 mm (4.33" x 3.54") Fig. 44: VEGABAR 82, IP 68 version with external housing Lateral cable outlet Axial cable outlet Plastic single chamber Stainless steel single chamber Seal 2 mm (0.079 in), (only with 3A approval)
  • Page 74 ø 6 mm ø 6 mm ( 0.24 ") ( 0.24 ") Fig. 45: VEGABAR 82, threaded fitting not front-flush DU G½, EN 837; manometer connection DI G½, inside G¼, ISO 228-1 DQ G½, inside G¼ A, ISO 228-1, PVDF DD G½, EN 837;...
  • Page 75 ø 55 mm ø 55 mm ø 60 mm (2.17") (2.17") (2.36") Fig. 46: VEGABAR 82, threaded fitting front-flush C3 G½, ISO 228-1; front-flush N9 G¾, DIN 3852-E C5 G1, ISO 228-1 DA G1½, DIN 3852-A DV G1½, DIN 3852-A-B, PVDF C9 1½...
  • Page 76 EZ Collar socket DN 40 PN 40, DIN 11851 NB Collar socket DN 50 PN 25, DIN 11851 E3 Collar socket DN 50 acc. to DIN, Form A, DIN 11864-1; for tube 53 x 1.5 VEGABAR 82 • 4 … 20 mA...
  • Page 77 150 lbs 7.5 " 0.94 " 6 " 8xø 0.75 " 5” 0.13 " 2.01 " Fig. 48: VEGABAR 82, flange connection Flange connection according to DIN 2501 Flange connection according to ASME B16.5 VEGABAR 82 • 4 … 20 mA...
  • Page 78 AF M44 x 1.25 DIN 13; pressure screw: Aluminium AG M44 x 1.25 DIN 13; pressure screw: 316L F9 G1, ISO 228-1 suitable for PASVE EW PMC 1" front-flush PN 6 BS DN 48 with tension flange VEGABAR 82 • 4 … 20 mA...
  • Page 79 ø 48 mm (1.89") 50 mm 50 mm (1.97") (1.97") Fig. 50: VEGABAR 82, flange connection for the paper industry: CL = absolutely front-flush for headbox, BR = absolutely front-flush for headbox (flange 2-times flattened) VEGABAR 82 • 4 … 20 mA...
  • Page 80 41 mm (1.63") 65 mm (2.56") Fig. 51: VEGABAR 82, connection acc. to IEC 61518 SJ Oval flange adapter SK Top flange For the version with temperature range up to 150 °C/302 °F, the measure of length increases by 28 mm (1.1 in).
