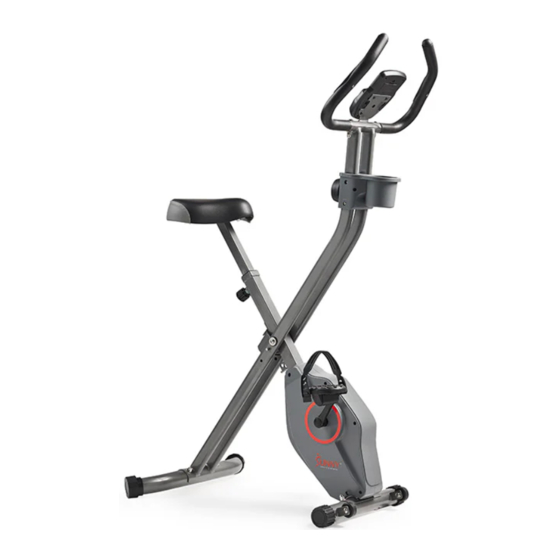

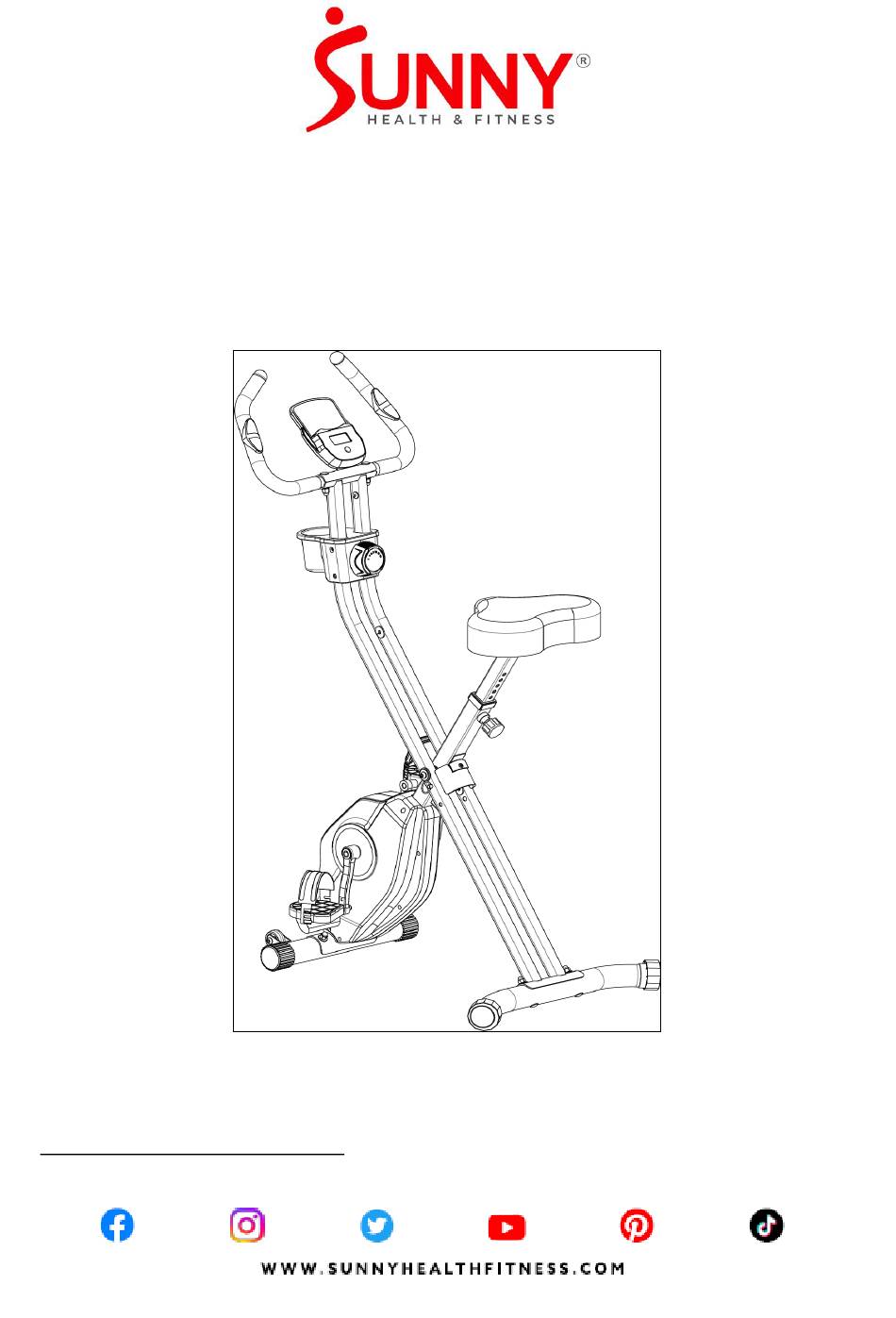

- Page 1 FOLDABLE MAGNETIC X-BIKE PRO SF-B223011 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 3: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included Description Spec. Qty. Description Spec. Qty. Front Main Frame Post Left Bottle Cover Rear Support Frame Right Bottle Cover Front Stabilizer Left Pedal Rear Stabilizer Right Pedal Seat Support Post Seat... -
Page 4: Hardware Package
HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓ The model number (found on cover of manual) ✓ The product name (found on cover of manual) ✓... - Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Pull the Ring Spring Pin (No.53) out and open the Rear Support Frame (No.2) and the Front Main Frame Post (No.1) as the...
- Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Remove 6 Bolts (No. 17), 4 Curve Washers (No. 18) and 2 Washers (No.19) from the Handlebar Connect Post (No.
- Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: Attach the Front Handlebar Post (No. 7) to the Handlebar Connect Post (No. 6) with 2 Square Neck Bolts (No.
- Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 7: Keep Left Pedal (No. 28) and Left Crank (No. 87) at 90° and then gently insert Left Pedal (No.
-
Page 9: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION 1. Take out 2 AAA batteries from computer box. 2. Press the buckle of battery cover on the Computer (No. 12), then remove battery cover. 3. Install 2 AAA batteries into the battery case on the back of the Computer (No. 12). Pay attention to the battery + and –... -
Page 10: Storage Guide
STORAGE GUIDE Pull the Ring Spring Pin (No.53) out and fold the Rear Support Frame (No.2) to the Front Main Frame Post (No.1) as the direction of the arrow shown in Figure. Turn the Ring Spring Pin (No.53) into the hole A in the steel plate of the Front Main Frame Post (No.1). - Page 11 ADJUSTMENTS GUIDE MOVING THE RECUMBENT BIKE Hold the Front Handlebar Post (No. 7) and tilt the bike until the 2 Transportation Wheels (No. 36) touch the ground. Now you can transport the bike to the desired location with ease. ADJUSTING THE BALANCE In order to achieve a smooth and comfortable ride, you must ensure that the bike is stable and secured.
-
Page 12: Exercise Computer
EXERCISE COMPUTER KEY FUNTION: ⚫ This key lets you to select and lock on to a particular function you want. ⚫ SCAN→TIME→SPD →DIST →CAL→ ODO →RPM →PULSE ⚫ Pressing and hold with 3 seconds to reset the value to zero (without ODO). SLEEP MODE ⚫... -
Page 13: App Connection
APP CONNECTION: 1. Scan the QR code below to download the SunnyFit app onto your mobile device. 2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in. 3. -
Page 14: Exploded Diagram
EXPLODED DIAGRAM 1... - Page 15 EXPLODED DIAGRAM 2...
-
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION Remove the computer and verify that the wire from the computer is properly connected to the wire that comes from the front post. Check if the batteries are correctly There is no display on the computer. positioned and battery springs are in proper contact with batteries. -
Page 17: Parts List
PARTS LIST Description Spec. Description Spec. Front Main Frame Post Rear Support Frame Bolt M8*40 Ф8*Ф16*1.5 Front Stabilizer Transportation Wheel Rear Stabilizer Rear Stabilizer End Cap Seat Support Post Seat Post Handlebar Connect Post Bushing φ30*φ22*L12 Front Handlebar Post Plastic Shaft Sleeve Front Handlebar Foam PC Pad Grip... - Page 18 PARTS LIST Description Spec. Description Spec. Belt 240 PJ4 M10*1.0 Belt 230 PJ3 Shaft Circlip Screw M5*10 M10*1*3 Φ20*Φ8*2.0 Big Flat Washer Screw ST4.2*25 φ35*φ15*15 Bearing Left Cover Φ17*33 Pulley Shaft Right Cover Left crank Sensor Wire Right crank L=250MM Screw M4*10 M10*1.25...
