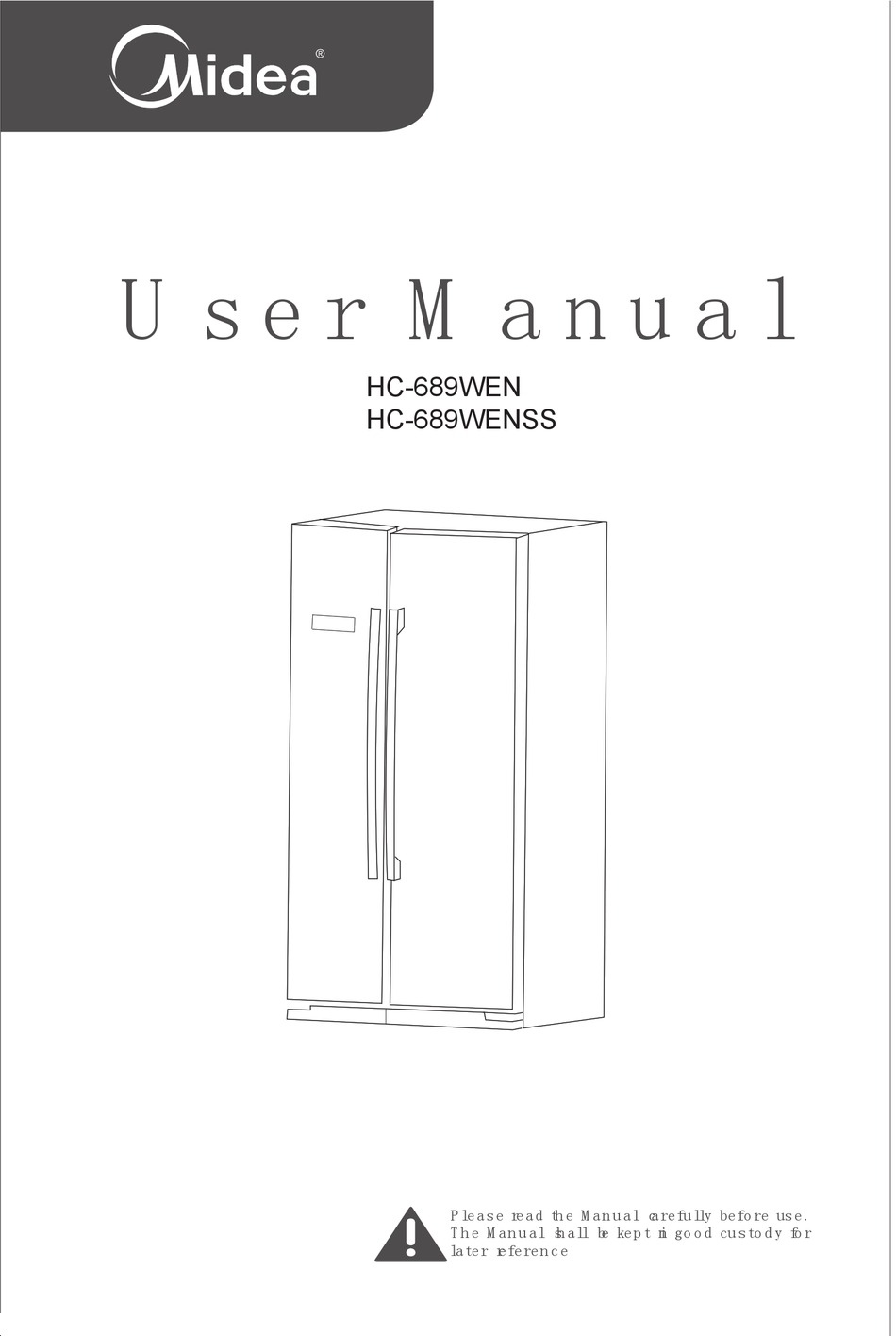

- Page 1 U s e r M a n u a l HC-689WEN HC-689WENSS P le a s e r e a d t h e M a n u a l c a re fu lly be fo re us e .
-
Page 2: Safety Warnings
6 1 Technical parametersc c c c c c c c c c c c c c c c c c c c c c c c c c c c c c 15 16 Dear users, thank you for choosing Midea refrigerator! - Page 3 1 Safety warnings 1.1 Warning Warning risk of fire / flammable materials RECOMMENDATIONS his appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments;...
- Page 4 Meaning of safety warning symbols This is a prohibition symbol. Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user. Prohibition symbol This is a warning symbol. It is required to operate in strict observance of instructions marked with this symbol;...
- Page 5 1 4 Warnings for using Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.
- Page 6 Do not store beer, beverage or other fluid contained in bottles or Freezing chamber enclosed containers in the freezing chamber of the refrigerator; otherwise the bottles or enclosed containers may crack due to freezing to cause damages. 1.6 War nings for energy 1)Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
- Page 7 2 Proper use of refrigerators 2 1 Placement Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body. Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.
- Page 8 2 2 Levelling feet 1) Precautions before operation: Before operation of accessories, it shall be ensured that the refrigerator is disconnected from power. Before adjusting the leveling feet, precautions shall be taken to prevent any personal injury. 2) Schematic diagram of the levelling feet The picture above is only for reference.
- Page 9 2 3 Levelling door Precautions before o peration Before operation of accessories, it shall be ensured that the refrigerator is disconnected from power. Before adjusting the door , precautions shall be taken to prevent any personal injury. 2 Schematic diagram of levelling the door body List of tools to be provided by the user wrench Adjusting nut...
-
Page 10: Changing The Light
Changing the Light Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. 2 5 Starting Before initial start, keep the refrigerator still for half an hour before connecting it to power supply. - Page 11 Key components （Freezing chamber） （Refrigerating chamber） LED lighting LED lighting Door tray Glass shelf Glass shelf Door tray Fruits and vegetables box Drawer The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor Refrigerating chamber Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and...
- Page 12 3 2 Functions The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor 1.Display 4.Quick Freezing icon 1.Freezer compartment temperature 5.Quick Refrigerating icon 2.Refrigerating compartment temperature 6.Lock/unlock icon 3.Vacation icon 2.Button A.Freezer compartment temperature adjustment Refrigerating...
- Page 13 5 Temperature setting of refrigerating chamber Press temperature adjusting button of the refrigerating chamber , cold storage region will make flashing indication. Then press the button again to set the temperature, and will hear one beep. Setting scope is between 2°C and 8°C.Every time you press the button, the temperature will change 1°C.
- Page 14 4. Maintenance and care of the appliance 4.1 Overall cleaning Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. The interior of the refrigerator should be cleaned regularly to avoid odor. Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning.
- Page 15 Cleaning of Glass shelf As the innermost part of the refrigerator liner where contacting the shelves has a backstop, you shall raise the shelves upward, then you can be able to take it out. Adjust or clean the shelves according to your requirement. The picture above is only for reference.
- Page 16 5 Trouble shooting 5 1You may try to solve the following simple problems by yourself. If them cannot be solved, please contact the after-sales department. Check whether the appliance is connected to power or whether the plug is in well contact Failed operation Check whether the voltage is too low Check whether there is a power failure or partial circuits have tripped...
