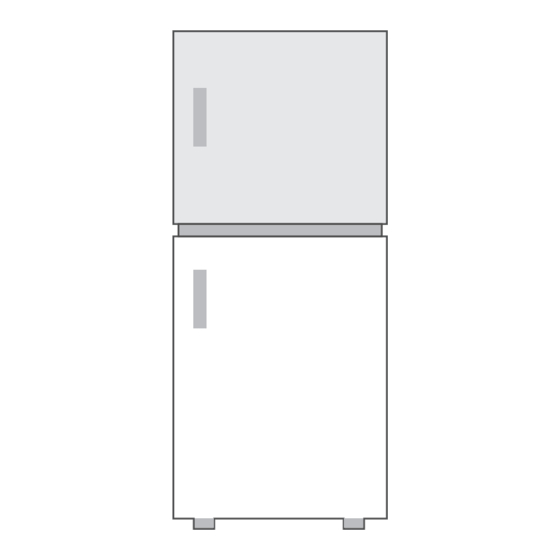

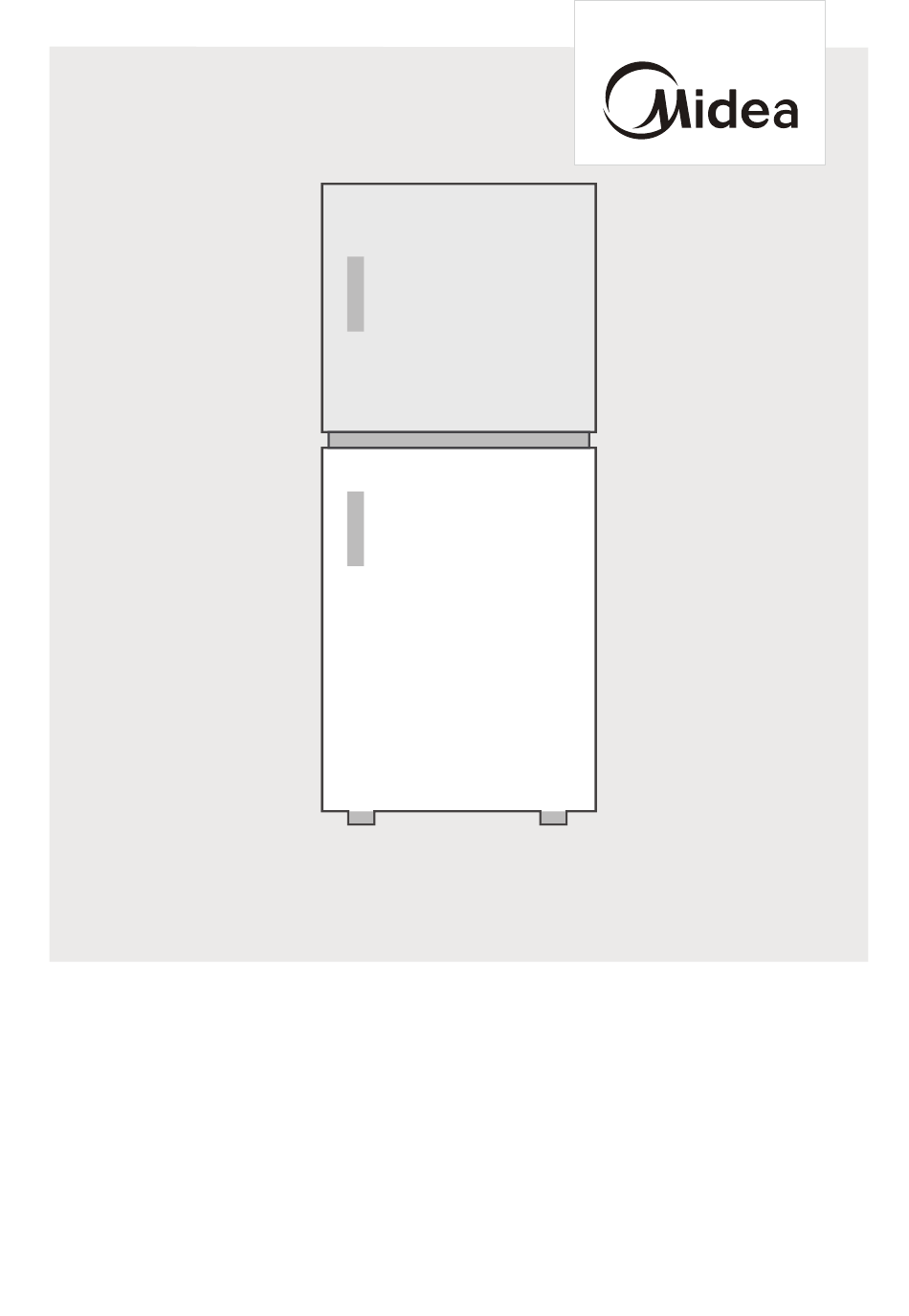

Refrigerator
TOP MOUNTED FREEZER SERIES
USER MANUAL
HD-113FN
SERIES
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.
Advertisement
Related Manuals for Midea HD-113FN Series
Summary of Contents for Midea HD-113FN Series
- Page 1 Refrigerator TOP MOUNTED FREEZER SERIES USER MANUAL HD-113FN SERIES Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.
- Page 3 English LANGUAGES Arabic...
-
Page 4: Table Of Contents
THANK YOU LETTER Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way. -
Page 5: Specifications
SPECIFICATIONS Product model HD-113FN Fresh Food Storage Compartment Volume Frozen Food Storage Volume Rated Voltage 220V-240V~ Frequency 50Hz Rated Current 0.6A Overall Dimension (H x W x D) 837x470x492mm... -
Page 6: Product Overview
PRODUCT OVERVIEW Names of components Temperature-control assembly Fruits and vegetables box Shelf Fence ATTENTION The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor... -
Page 7: Product Installation
PRODUCT INSTALLATION Install Instruction For refrigerating appliances with climate class • Depending on the climate class, This refrigerating appliance is intended to be • The climate class can be found on the rating plate. The product may not • Effective temperature range •... - Page 8 Space requirement diagram (when the door is open and when the door is closed) 145 ° Width Depth Overall Width Depth doors open doors open Height Notice: All dimensions in mm...
- Page 9 Door right-left change List of tools to be provided by the user Cross screwdriver Putty knife Thin-blade screwdriver 5/16″ socket spanner Masking tape 1. Remove all food from the inner door liner.Fix the door by tapes. 2. Dismantle top hinge cover, top hinge and hole cap of the other side. 3.
- Page 10 Leveling feet To avoid vibration, the unit must be leveled. If required, adjust the leveling screws to compensate for the uneven floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws counterclockwise to raise the unit, clockwise lower it.
-
Page 11: Operation Instructions
OPERATION INSTRUCTIONS Control panal • Turn the temperature control knob to MAX, the internal temperature of the refrigerator becomes lower. • Turn the temperature control knob to MIN, the internal temperature of the refrigerator becomes higher. • NOTE: Please adjusting and using between “MAX” and “MIN”. •... - Page 12 Tips on storing food Freezer compartment • The freezer is designated for the storage of food frozen at very low temperature, long-term storage of frozen food, and for the production of ice. • Only use the shelves in the door of the freezer to store frozen food, not for storing hot food designated for freezing.
