Summary of Contents for Midea HC-702WE

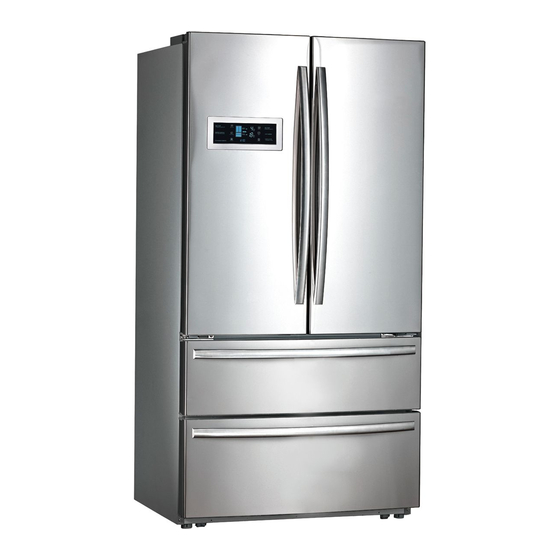

- Page 1 Technical Service Manual French Door Refrigerator HC-702WE...
-
Page 2: Table Of Contents
Content Chapter 1: Functions and Characteristics Chapter 2: Technical Parameters Chapter 3: Cycle Diagram of the System Chapter 4: Electric Schematic Diagram and Circuit Wiring Diagram Chapter 5: Guide for Maintenance of R134a Refrigerator Chapter 6: Failure Predication Flow Chart Chapter 7: Exploded View of the Product and Parts List... -
Page 3: Chapter 1: Functions And Characteristics
Chapter 1: Functions and Characteristics Midea Brand ● DC frequency conversion technology; ● Double evaporator system, chill and refrigerate food separately, so as to prevent from tainting by odor; ● High moisture system, with moisture rate up to 80%, so as to increase the freshness retaining of fruits and vegetables;... -
Page 4: Chapter 2: Technical Parameters
Chapter 2: Technical Parameters Specifications and main parameters of Midea Brand Power Effective Refrigerat Energy Product consump Refrigerant/in /refrigera Climate consum Temp. Model weight size tion Compressor jection rate tion type capacity ption control (kg) (mm) (kW·h/24h (kg/24h) grading 911×728. -
Page 5: Chapter 3: Cycle Diagram Of The System
Chapter 3: Cycle Diagram of the System Dry Filter Solenoid valve Chilling capillary Chilling evaporator Dew eliminating tube Freezing capillary Freezing evaporator Compresso Condenser Applicable for: HC-702WE (economic development zone) The size on the drawing is a theoretical size, and it is different from full size. -
Page 6: Chapter 4: Electric Schematic Diagram And Circuit
UV-LIGHT WAVE PRESERVING LAMP brown/ white blue temperature-variable /white chamber motorized yellow /green operated damper brown blue black compressor yellow-green yellow-green yellow-green yellow-green filter yellow-green This wiring diagram is applicable for: the Midea Brand refrigerator produced in the economic development zone... -
Page 7: Chapter 5: Guide For Maintenance Of R134A Refrigerator
Chapter 5: Guide for Maintenance of R134a Refrigerator I. Property of the R134a refrigerant R134a, also named as tetrafluoroethane, is one of the hydrofluorocarbon (HFC for short), The molecular weight of it is 102, and its structural formula is CH . -
Page 8: Chapter 6: Failure Predication Flow Chart
Chapter 6: Flow Chart of Refrigerator Failure Predication abnormal operation of refrigerator check the electroless plug and socket fuse check the power supply and voltage too low voltage check indoor power circuit normal The compressor can be started and compressor fails to start operated normally display and light... - Page 9 Figure -2 Check that whether voltage is output here Figure -3 Figure -4 Sensor failure Failure code Remarks Chilling chamber Incasement sensor failure Refrigerating chamber Temperature-variable chamber Defrost sensor failure Chilling defrost sensor Refrigerating defrost sensor Ambient temperature sensor Ambient temperature failure sensor...
-
Page 10: Chapter 7: Exploded View Of The Product And Parts List
Chapter 7: Exploded View of the Product and Parts List Exploded view of product: Parts list: Name Material /specification Qty. Display panel decorative part IMD technology /ABS Rubber keying of display panel Silicon rubber PCB dead plate of display panel Display panel Component Cross recessed pan head tapping screw... - Page 11 Torsional spring 1Cr9Ni18Ti Rollover beam upper-pivot Rollover beam pivot upper housing Rollover beam foam Rollover beam slide reinforcement Cross recessed pan head tapping screw Q235A Rollover beam body Cross recessed pan head tapping screw Q215 Foldaway of grease box Transparent PS Left grease box body HIPS Left gallon bottle pedestal...
- Page 12 Rack glass of fruit vegetable box Glass Cover plate decorative part of cold storage air duct PS, spraying with dull silver Screw cap of cold storage Cross recessed pan head tapping screw Q235A Middle support iron of cantilever rack t2/Cold-rolled plate Chilling chamber temperature sensor Component Cover plate of cold storage air duct...
- Page 13 Cross recessed pan head tapping screw Q215 Cross recessed hexagon bordered screw 1022, galvanization Right top hinge Hot rolling pickled plate Q235 Box assembly Component Frequency conversion plate Component Mains filter Component Main control panel Component Main control panel cover t0.4/ aluminizing zinc plate Foam seal PE foam...
- Page 14 Refrigeration lamp base Refrigeration LED lamp Component Refrigeration lamp shade Transparent GPPS Cross recessed pan head tapping screw Q215 Left support of refrigeration slide Right support of temperature-variable drawer HIPS Left support of temperature-variable drawer HIPS Cross recessed pan head tapping screw Q235A Temperature-variable chamber control panel Component...
- Page 15 Feed water pump box Outlet pipe of water pump Silicon rubber Built-in water pump for ice maker Component Feed water pump box cover Inlet of water pump Silicon rubber Water tank limit buckle Ice exploration rod of ice maker Ice maker spacing Ice maker hanger Ice maker hanging button Cross recessed pan head tapping screw...
- Page 16 Right door-open arresting device Q215A This detail is compiled referring to the Midea Brand HC-702WE product, and there is some difference with other products. For the electric parts, please refer to the Electric Schematic Diagram and Circuit Wiring Diagram in Chapter 4.
