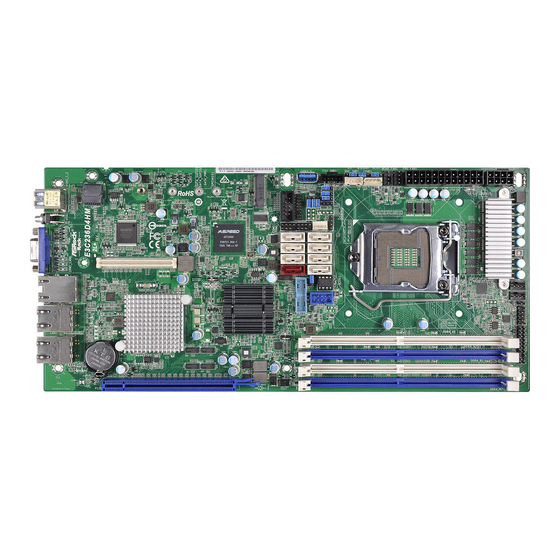

ASROCK Rack E3C236D4HM-2L+ Quick Installation Manual

*15G065089100AK*
P/N: 15G065089100AK V1.0
Quick Installation Guide
E3C236D4HM-2L+ / E3C236D4HM-2T
The server board User's Manual is available for download from the ASRock Rack's official website
at http://www.asrockrack.com.
Take note of the following precautions before you install server board components or change any
server board settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the server board's components due to static electricity, NEVER place your
server board directly on the carpet or the like. Also remember to use a grounded wrist strap or
touch a safety grounded object before you handle the components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti-static pad or in the bag
that comes with the component.
5. When placing screws into the screw holes to secure the server board to the chassis, please do
not over-tighten the screws! Doing so may damage the server board.
Motherboard Layout
2
15.14cm (5.96 in)
IPMI_
LAN1
LAN2
LAN1
Note:
CMOS
E3C236D4HM-2T:
Battery
Intel X540
E3C236D4HM-2L+:
Intel I350
46
Intel
LAN
X540
(See Note)
45
Intel
C236
44
43
42
41
40
USB3_3_4
39
1
1
SATAPWR1
38
BIOS
ROM
USB_1_2
37
36
35
34
33
32
FRNT_FAN1 FRNT_FAN2
NMI_BTN1
31
PANEL1
AUX_PANEL1
PLED PWRBTN
1 1
1 1
HDLED RESET
30 29 28 27 26
3 I/O Panel
3
1 2
E3C236D4HM-2L+
No. Description No. Description
1 USB 3.0 Ports (USB3_1_2) 4
2 UID Switch (UID1) 5
3 VGA Port (VGA1) 6
E3C236D4HM-2T
No. Description No. Description
1 USB 3.0 Ports (USB3_1_2) 4
2 UID Switch (UID1) 5
3 VGA Port (VGA1) 6
VGA1
USB 3.0
T: USB2
B: USB1
E3C236D4HM-2T
BMC
ROM
Super
I/O
BMC
M2_1
SATA_SGPIO1
1
COM1
PMBUS_SEL_DAT1
PMBUS_SEL_CLK1
1
1
TPM1
SATA_SGPIO2
1
1
SEC_OR1 1
1 1
1 PMBUS_SEL_ALT1
1 1 1 1 1 1 1 1
SATA_PWR1
1 1
SPEAKER1
1
1
1
1 1
1
REAR_FAN1
CPU_FAN1
ATX12V1
25 24 23 22 21
4 5 6
LAN RJ-45 Port (IPMI_LAN)
1G LAN RJ-45 Port (LAN1)
1G LAN RJ-45 Port (LAN2)
LAN RJ-45 Port (IPMI_LAN)
10G LAN RJ-45 Port (LAN1)
10G LAN RJ-45 Port (LAN2)
1 Install the Server Board
1
Insert the server board into the chassis.
2
A f f i x t he screws clock w ise into t he
mounting holes in all of the corners of
the server board.
Do not over-tighten the screws
No. Description
1 SATA SGPIO Connector (SATA_SGPIO1)
M.2 Socket (M2_1) (Supports type
2
2230/2242/2260/2280 M.2 module)*
3 SATA SGPIO Connector (SATA_SGPIO2)
4 COM Port Header (COM1)
5 TPM Header (TPM1)
6 PMBUS Mode Jumper (PMBUS_SEL_DAT1)
7 PMBUS Mode Jumper (PMBUS_SEL_CLK1)
8 Vertical Type A USB 3.0 (USB3_5)
9 PMBUS Mode Jumper (PMBUS_SEL_ALT1)
10 PSU SMBus (PSU_SMB1)
1
11 Chassis ID1 Jumper (CHASSIS_ID1)
2
3
12 BMC SMBus Header (BMC_SMB1)
4
5
6
7
13 CPU PECI Mode Selection Jumper (PECI1)
8
14 ME Recovery Jumper (ME_RECOVERY1)
9
PCI Express Graphics Configuration Jumper
10
15
(PEG_CFG1)
11
12
Intelligent Platform Management Bus Header
13
16
(IPMB1)
14
15
17 Rear Fan Connector (REAR_FAN1)
16
17
18 CPU Fan Connector (CPU_FAN1)
18
19 ATX Power Connector (ATXPWR1)
20 ATX 12V Power Connector (ATX12V1)
19
21 Chassis ID2 Jumper (CHASSIS_ID2)
22 Chassis ID3 Jumper (CHASSIS_ID3)
20
23 Thermal Sensor Header (TR1)
*The M.2 slot (M2_1) is shared with the SATA connector (SATA_0). When M2_1 is populated with a M.2 SATA module, SATA_0 is disabled.
**The mezzanine card slot (MEZZ1) is shared with the PCIE7 slot. When MEZZ1 is populated with a storage mazzanine card, PCIE7 will operate at
up to x8 mode.
4 Jumper Cap On/Off
When the jumper cap is placed on the pins, the
jumper is "Short". If no jumper cap is placed on the
pins, the jumper is "Open".
The illustration shows a 3-pin jumper whose pin1
and pin2 are "Short" when a jumper cap is placed on
these 2 pins.
www.asrockrack.com
No. Description
Descriptor Security Override Jumper
24
(SEC_OR1)
25 Speaker Header (SPEAKER1)
26 Front Fan Connector (FRNT_FAN2)
27 Front Fan Connector (FRNT_FAN1)
28 Non Maskable Interrupt Button (NMI_BTN1)
29 System Panel Header (PANEL1)
30 Auxiliary Panel Header (AUX_PANEL1)
2 x 288-pin DDR4 DIMM Slots
31
(DDR4_A1, DDR4_B1, White)
2 x 288-pin DDR4 DIMM Slots
32
(DDR4_A2, DDR4_B2, Blue)
33 SATA DOM Power Header (SATA_PWR1)
34 SATA3 Connector (SATA_7)
35 SATA3 Connector (SATA_5)
36 SATA3 Connector (SATA_3)
37 SATA3 Connector (SATA_1)
38 USB 2.0 Header (USB_1_2)
39 SATA DOM Power Jumper (SATAPWR1)
40 USB 3.0 Header (USB3_3_4)
41 SATA3 DOM Connector (SATA_0), Red*
42 SATA3 Connector (SATA_2)
43 SATA3 Connector (SATA_4)
44 SATA3 Connector (SATA_6)
45 PCI Express 3.0 x16 Slot (PCIE7)**
46 SAS Mezzanine Card Slot (MEZZ1)**
5 Headers
System Panel Header
PLED+
PLED-
PWRBTN#
GND
1
GND
RESET#
GND
HDLED-
HDLED+
Auxiliary Panel Header
A B
1
C D E
