iCOMPEL EDS Quick Start Guide

System Maintenance

From the System Maintenance tab, you can select
Windows Reboot Settings, Hibernate and Wake-up
Values, Disk Space Usage, Player Settings, and Ethernet
Settings.
Playback
From the Playback tab, you can select how the content
looks to the user.
Wizard
From the Wizard tab, you can enable or disable the
composer management and video presets.
Optimization and Expert Settings
Optimization settings include Merge Video, Merge
Composer, Merge Queued Playlist, and Playlist Cache
Options.
Expert Settings include Video Settings, Composer
Settings, and Miscellaneous Settings.
NOTE: The default settings are available at
http://eds.blackbox.com/mediawiki/index.php/
EDS-S11_Defaults.

Specifications

Chipset — Intel NM10
Cooling — (1) system fan
Graphics — Enhanced NVIDIA HD (CUDA)
Memory — 2 GB DDR3
Processor — Intel Atom D525
® ™
Operating System — Genuine Windows 7
Embedded
Special Features — VESA mount bracket, vertical
chassis stand, card reader
Storage — 320 GB
724-746-5500 | blackbox.com
iCOMPEL EDS Quick Start Guide
Specifications (Continued)
Wired Communications — 10/100 LAN
Wireless Communications — Wireless B/G +
Bluetooth
®
Connectors — Rear I/O: (5) USB (1 front, 4 back),
(1) VGA, (1) HDMI, (1) Audio out/Mic. in;
Front I/O: (1) USB/eSATA combo port
Size — 0.98"H x 7.46"W x 5.9"D (2.5 x 19 x 15 cm)
Power Supply — 60 watts
Great tech support is just 30 seconds
away at 724-746-5500 or blackbox.com.
Customer
Order toll-free in the U.S.:
Call 877-877-BBOX
Support
(outside U.S. call 1-724-746-5500)
Information
FREE technical support
24 hours a day, 7 days a week:
Call 724-746-5500 or
fax 724-746-0746
Mailing address:
Black Box Corporation
1000 Park Drive
Lawrence, PA 15055-1018
Web site: www.blackbox.com
E-mail: info@blackbox.com
© Copyright 2012. Black Box Corporation. All rights reserved.
Black Box and the Double Diamond logo are registered trademarks,
and iCOMPEL is a trademark, of BB Technologies, Inc. Bluetooth is a
registered trademark of Bluetooth SIG. Intel is a registered trademark,
and Atom is a trademark, of Intel Corporation. Microsoft and Windows
are registered trademarks of Microsoft Corporation. Any other
trademarks mentioned in this manual are acknowledged to be the
property of the trademark owners.
EDS-S11 Quick Start Guide, version 1
724-746-5500 | blackbox.com
Page 5
iCOMPEL EDS Quick Start Guide
Get your company's
message out for less than
the cost of traditional print
or broadcast advertising.
Your digital signage will be up and running
in no time at all.
Setting Up iCOMPEL EDS
The iCOMPEL EDS connects a display to your network
™
and, via your broadband connection, enables you to
control your displays from anywhere in the world
using the Internet.
What's Included
Your package should include the following items.
If anything is missing or damaged, contact Black Box
Technical Support at 724-746-5500 or
info@blackbox.com.

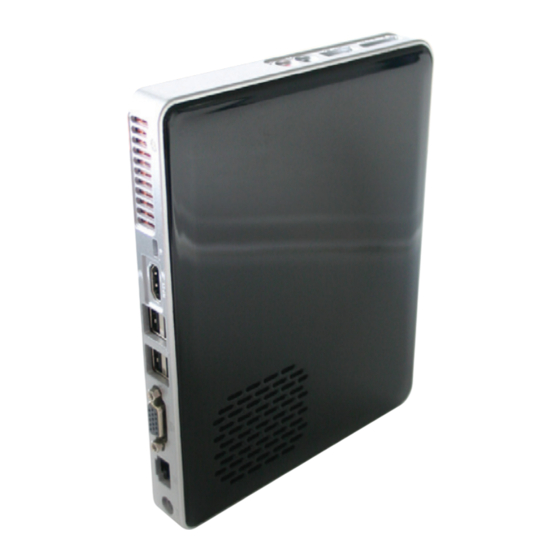

• iCOMPEL EDS Subscriber Unit
• HDMI cable
• Ethernet patch cable
724-746-5500 | blackbox.com
Page 6
EDS-S11
EDS-SS10
