iNels IDRT3-1 Manual

IDRT3-1
Digital room thermo-controller
EN
Characteristics
- IDRT3-1 is a digital wall temperature controller used to regulate the temperature in a room.
- Using the IDRT3-1, it is possible to correct the given heating / cooling circuit within a range of ±3, ±4
or ±5 °C (optional in SW iDM3).
- The temperature controller is equipped with an integrated heat sensor used to measure the room
temperature. It is also equipped with two analog digital inputs (AIN/DIN), which can be used
to connect two potential free contacts or a single external temperature sensor TC/TZ (e.g. for
measuring the fl oor temperature).
- The display shows the current temperature and after pressing one of two buttons under the display,
you can control the desired temperature.
- Readability improves after pressing one of the buttons to activate the backlight.
- Heating / cooling circuit is assigned with a thermo-regulator using iDM3.
- In the case of temperature correction within ±3, ±4 or ± 5 °C, this change is valid until the next time
mark within the time schedule established in iDM3.
- IDRT3 -1 in design LOGUS 90 is intended for mounting into an installation box.
General instrucions
EXAMPLE MODEL OF CONTROL, ALL FUNCTIONS ARE FULLY PROGRAMMABLE
HOW TO CONTROL THE DEVICE
^
Buttons ^ can be set to required temperature in a room (of the given temperature circuit)
within the framework of the set correction range of ±3, ±4 or ±5 °C.
Activity of the heating circuit is indicated on the display by the ON symbol. In case red LED in a right
upper corner shines, the assigned heating circuit is active and the heating source is in operation. Each
heating circuit operate according to a temperature set in the iDM3 program (day and night, weekend
program, etc) in the software iDM3. If the display is symbol MAN, the heating circuit constantly heats
at a manually corrected temperature (correction is valid until the next time mark of the set program).
CONNECTION INTO THE SYSTEM
Connect the product to the system according to the connection diagram listed with each product.
The wires of data BUS of iNELS system are connected to the terminals BUS+ (standard red wire for
single-pair wiring, red and yellow for two-pair wiring) and BUS- (standard black wire for single-
pair wiring, black and white for two-pair wiring), and it is not possible to change the terminals. A
twisted pair of wires must be used for the data BUS with a wire diameter at least 0.8 mm. Data
communications and power supply to the units are led in a single pair of wires, and you must observe
the power cable size with regard to voltage loss on the wire and the maximum power draw.
CAPACITY AND CENTRAL UNIT
It is possible to connect to the central unit CU3-01M or CU3-02M two independent BUSes by means
of terminals BUS1+, BUS1- and BUS2+, BUS2-. It is possible to connect to each BUS up to 32 units, so
it is possible to connect directly to the central unit a total of 64 units. It is necessary to comply with
the requirement of a maximum load of one BUS line - maximum up to 1000 mA current. It is the sum
of the rated currents of the units connected to the BUS line, other units can be connected using the
units MI3-02M, which generate further BUSes. These are connected to the CU3 unit via the system
BUS EBM and you can connect a total of 8 units via EBM BUS to the central unit MI3-02M.
COMMUNICATION BUS OF THE SYSTEM
The BUS must have a cable created by a twisted pair of wires for data BUS of the system with a
minimum wire diameter of 0.8 mm. A shielded cable must be used in case of installation of cables of
the BUS in an environment with the possibility of electromagnetic interference (e.g. when running
along power lines, near electric machines and devices, during LV passage through a distributor, etc.).
We highly recommend using the cable JYSTY 2x2x0.8 for BUS. The BUS cable is installed in accordance
with its mechanical properties given by the producer (into a pipe/bar, under plaster, underground,
suspended, etc.) To increase the mechanical resistance of cables, we always recommend installing
the cable into an electrical insulation pipe of the appropriate diameter. The total length of wires of
the BUS for CU3-01M (CU3-02M), or MI3-02M, can be 1100 m (550 m for each BUS). The topology
of the communications BUS is open with the exception of topology of the circuit. It is necessary
to use the cable FTP CAT5e or higher for the system BUS EBM - one pair of wires is connected to
the terminals EBM+ and EBM- and the second pair of wires can be curled and connected to GND
terminal (just on the one side of EBM BUS). The typology of EBM system BUS is strictly linear and must
be terminated at both ends with a nominal resistance value of 120 Ω. It is the installer's responsibility
to follow all instructions in the manual and all installation requirements for the RS485 BUS.
SUPPLYING THE SYSTEM
For supplying power to system units, it is possible to use the power sources of ELKO EP titled PS3-
100/iNELS. We recommend backing up the system with backup batteries connected to the source of
PS3-100/iNELS (see sample diagram of connecting the control system).
GENERAL INFORMATION
To operate the unit, it is necessary that the unit is connected to a central unit CU3 series, or to a
system that already contains this unit as its expansion to include further system.
All unit parameters are set through the central unit CU3-01M in the software iDM3.
There is LED diode on the PCB for indication of supply voltage and communication with the
central unit series CU3. In case that the RUN diode fl ashes at regular intervals, so there is standard
communication between the unit and BUS. If the RUN diode lights permanently, so the unit is
supplied from BUS, but there is no communication between BUS and unit. In case that RUN diode is
OFF, so there is no supply voltage on the terminals BUS+ and BUS-.

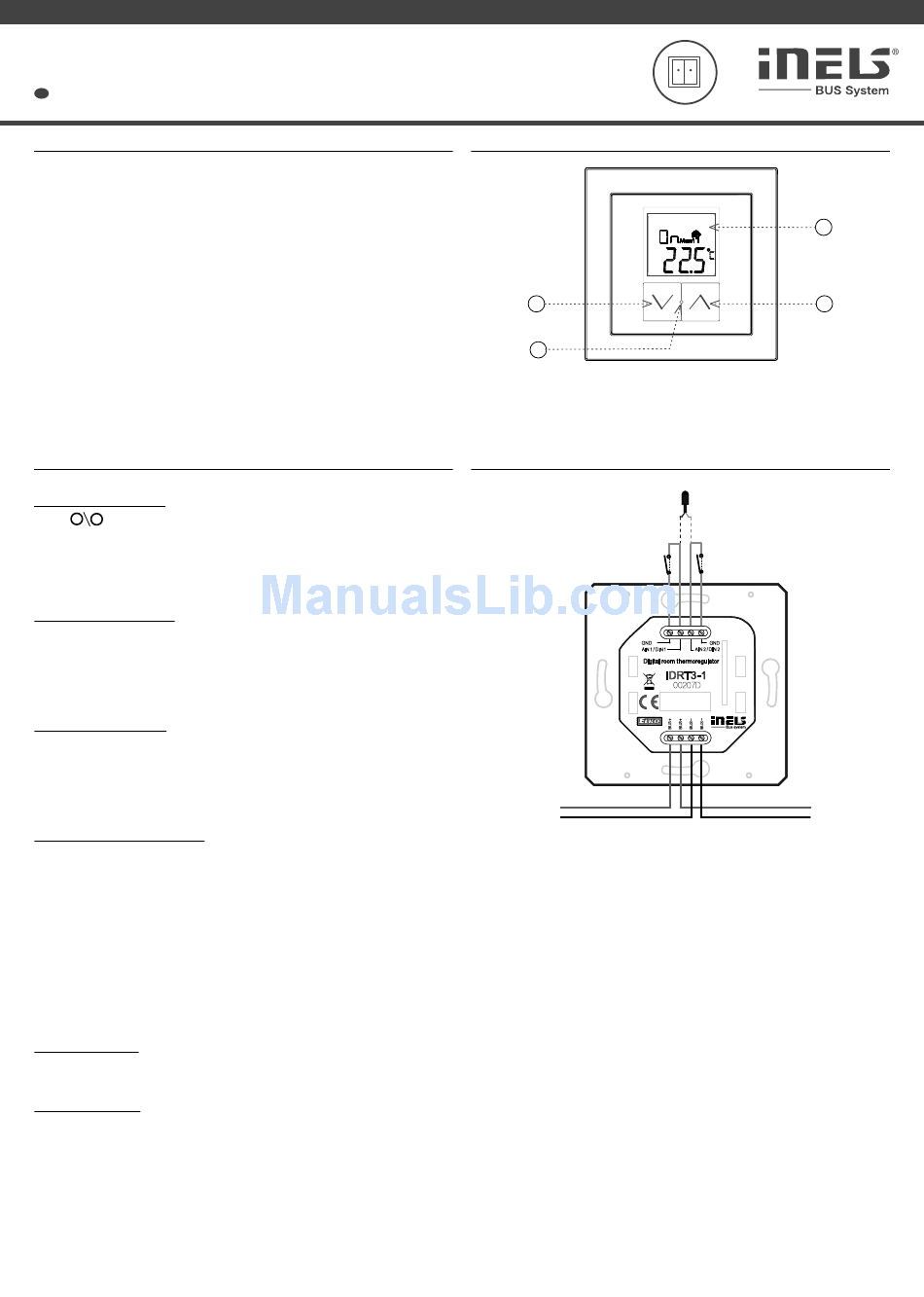

Description of device
1
2
1. Button to lower temperature
2. LED indication
3. Display
4. Button to rise temperature
Connection
BUS +
-
BUS
* The choice is made in iDM3 for each unit separately.
3
4
Thermal sensors TC / TZ or *
2x input for fl oating contacts
(buttons, PIR etc.).
1/2
