C's Amplifier Panel, Connectors And Controls; Audio Cable Routing Example With A Two Channel Source Shown; Minimum Clearances To Walls Or Other Objects; Flush Mounting The Subwoofer - Genelec 7050C Operating Manual

INPUT
CONNECTORS
OUTPUT
CONNECTORS

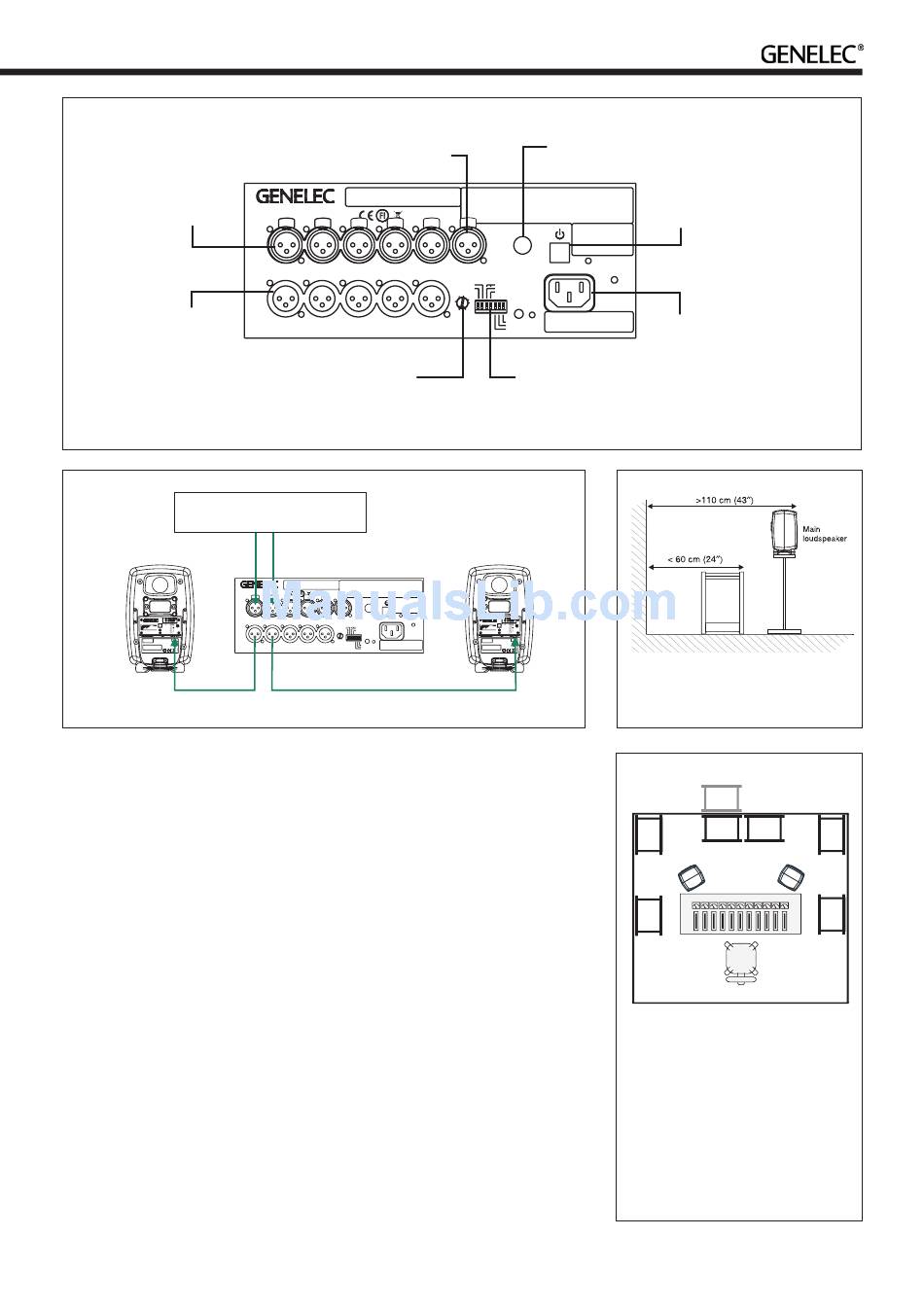

Figure 1. 7050C's amplifier panel, connectors and controls.
LINE LEVEL SIGNAL SOURCE
WARNING: ELECTRIC SHOCK HAZARD. DO NOT OPEN. DO NOT
SUBJECT TO WATER OR MOISTURE. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. USE EARTHED MAINS CONNECTION ONLY.
AVERTISSEMENT: RISQUE DE CHOC ÉLECTRIQUE. NE PAS
OUVRIR. NE PAS EXPOSER À L'EAU OU L'HUMIDITÉ. AUCUN
COMPOSANT À L'INTÉRIEUR REMPLAÇABLE PAR L'UTILISATEUR.
ADRESSER TOUTE RÉPARATION À UN PERSONNEL QUALIFIÉ. CET APPAREIL DOIT ÊTRE RACCORDÉ À LA TERRE.
LAITE ON LIITETTÄVÄ SUOJAKOSKETTIMILLA VARUSTETTUUN
PISTORASIAAN.
APPARATET MÅ TILKOPLES JORDET STIKKONTAKT.
APPARATEN SKALL ANSLUTAS TILL JORDAT UTTAG.
ON
OFF
-6 +6
0 ALL OFF
-2 BASS -3 +4
-4 -6 TILT TREBLE 0
DESKTOP TILT +2
BASS INPUT dBu
ROLL-OFF PRODUCING
20 160 1k 3k 20k 100 dB SPL (1 m)
Frequency (Hz)
MAINS INPUT 8030C BI-AMPLIFIED ANALOG
50 / 60 Hz 60 W IN
100 - 240 V~ MONITORING SYSTEM
2 1
MADE IN FINLAND www.genelec.com 3
SERIAL NUMBER
+ - GND
IN
This device complies with FCC Part 15 and Canadian
ICES-003 radio frequency Class B emission requirements.
Refer to operating manual for full information.
Figure 2. Audio cable routing example with a two channel source shown.
is needed to find the optimum placement.
The placement will affect the phase
difference between the main loudspeakers
and the subwoofer and the bass roll-off
rate.
First place the subwoofer slightly offset
from the center of the front wall. The
recommended distance to the wall is
less than 60 cm / 24" measured from the
subwoofer's driver. This position gives
increased acoustic loading (and SPL) due
to the proximity of the front wall and floor.
Cancellations from the front wall and floor
are also avoided. Front wall cancellation for
the 85 Hz high pass filtered main speakers
can be eliminated by placing them at least
110 cm / 43" away from the front wall (see
Figure 3).
If the frequency balance does not seem
right, try moving the subwoofer slightly
to the left or right so that different room
modes are excited at different levels.
Positioning the subwoofer close to a
corner will boost the bass level at lower
LFE IN CONNECTOR
SERIAL
NUMBER
7050C ACTIVE SUBWOOFER
www.genelec.com
MADE IN FINLAND
IN
IN 1 IN 2 IN 3 IN 4
OUT
OUT 1 OUT 2 OUT 3 OUT 4
SENSITIVITY
ADJUSTMENT
WARNING
SERIAL
ELECTRIC SHOCK HAZARD. DO NOT OPEN. DO NOT SUBJECT TO WATER OR MOISTURE. NO USER
NUMBER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. USE EARTHED MAINS
CONNECTION ONLY. AVERTISSEMENT
7050C ACTIVE SUBWOOFER RISQUE DE CHOC ÉLECTRIQUE. NE PAS OUVRIR. NE PAS EXPOSER À L'EAU OU L'HUMIDITÉ. AUCUN
www.genelec.com COMPOSANT À L'INTÉRIEUR REMPLAÇABLE PAR L'UTILISATEUR. ADRESSER TOUTE RÉPARATION À
MADE IN FINLAND UN PERSONNEL QUALIFIÉ. CET APPAREIL DOIT ÊTRE RACCORDÉ À LA TERRE.
LAITE ON LIITETTÄVÄ
BYPASS
SUOJAKOSKETTIMILLA
VARUSTETTUUN PISTORASIAAN.
APPARATET MÅ TILKOPLES
IN
JORDET STIKKONTAKT.
APPARATEN SKALL ANSLUTAS
TILL JORDAT UTTAG.
IN 1 IN 2 IN 3 IN 4 IN 5 LFE IN
ROLL-OFF PHASE
-8 dB -270°
-4 dB -90° MAINS INPUT
-180°
0 50 / 60 Hz 150 W
+3
OUT 100 - 240 V~
-3
+6
-4 ON
+12 -6
THIS DEVICE COMPLIES WITH FCC PART 15 AND
INPUT dBu CANADIAN ICES-003 RADIO FREQUENCY CLASS B
OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 ISS
EMISSION REQUIREMENTS. REFER TO OPERATING
PRODUCING ISS SENSITVITY LOW
MANUAL FOR FULL INFORMATION.
100 dB SPL (1 m) LFE +10 dB
frequencies and may cause asymmetrical
spatial imaging.
Minimum Clearances To Walls
Or Other Objects
Do not cover the driver side of the subwoofer
or place the subwoofer so that there is less
than 10 cm (4") of free space in front of the
grille.
Make sure that the space underneath the
subwoofer is clear from obstructions. Thick
carpets may block the ventilation clearance
needed for cooling the electronics.
The reflex port side (opposite of the
connector panel side) should always have a
clearance of at least 7.5 centimeters (3") to
any objects to ensure proper functioning of
the reflex port.
Flush Mounting The
If the subwoofer is flush mounted into a
wall or a cabinet, it is important to ensure
BYPASS SWITCH
CONNECTOR
WARNING
ELECTRIC SHOCK HAZARD. DO NOT OPEN. DO NOT SUBJECT TO WATER OR MOISTURE. NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. USE EARTHED MAINS
CONNECTION ONLY.
AVERTISSEMENT
RISQUE DE CHOC ÉLECTRIQUE. NE PAS OUVRIR. NE PAS EXPOSER À L'EAU OU L'HUMIDITÉ. AUCUN
COMPOSANT À L'INTÉRIEUR REMPLAÇABLE PAR L'UTILISATEUR. ADRESSER TOUTE RÉPARATION À
UN PERSONNEL QUALIFIÉ. CET APPAREIL DOIT ÊTRE RACCORDÉ À LA TERRE.
LAITE ON LIITETTÄVÄ
BYPASS
SUOJAKOSKETTIMILLA
VARUSTETTUUN PISTORASIAAN.
APPARATET MÅ TILKOPLES
JORDET STIKKONTAKT.
APPARATEN SKALL ANSLUTAS
TILL JORDAT UTTAG.
IN 5 LFE IN
ROLL-OFF PHASE
-8 dB -270°
-90°
-4 dB
-180°
0
+3
-3
+6
-4
ON
+12 -6
THIS DEVICE COMPLIES WITH FCC PART 15 AND
INPUT dBu CANADIAN ICES-003 RADIO FREQUENCY CLASS B
OUT 5 ISS
EMISSION REQUIREMENTS. REFER TO OPERATING
PRODUCING
ISS SENSITVITY LOW
MANUAL FOR FULL INFORMATION.
100 dB SPL (1 m) LFE +10 dB
BASS ROLL-OFF,
ISS AND LFE +10 dB
WARNING: ELECTRIC SHOCK HAZARD. DO NOT OPEN. DO NOT
SUBJECT TO WATER OR MOISTURE. NO USER SERVICEABLE
USE EARTHED MAINS CONNECTION ONLY. PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
AVERTISSEMENT: RISQUE DE CHOC ÉLECTRIQUE. NE PAS
OUVRIR. NE PAS EXPOSER À L'EAU OU L'HUMIDITÉ. AUCUN
COMPOSANT À L'INTÉRIEUR REMPLAÇABLE PAR L'UTILISATEUR.
CET APPAREIL DOIT ÊTRE RACCORDÉ À LA TERRE. ADRESSER TOUTE RÉPARATION À UN PERSONNEL QUALIFIÉ.
LAITE ON LIITETTÄVÄ SUOJAKOSKETTIMILLA VARUSTETTUUN
PISTORASIAAN.
APPARATET MÅ TILKOPLES JORDET STIKKONTAKT.
APPARATEN SKALL ANSLUTAS TILL JORDAT UTTAG.
ON
OFF
-6 +6
0 ALL OFF
-2 BASS -3 +4
-4 -6 TILT TREBLE 0
DESKTOP TILT +2
BASS INPUT dBu
ROLL-OFF PRODUCING
20 160 1k 3k 20k 100 dB SPL (1 m)
Frequency (Hz)
MAINS INPUT 8030C BI-AMPLIFIED ANALOG
50 / 60 Hz 60 W IN
100 - 240 V~ MONITORING SYSTEM
2 1
MADE IN FINLAND www.genelec.com 3
SERIAL NUMBER
+ - GND
IN
This device complies with FCC Part 15 and Canadian
ICES-003 radio frequency Class B emission requirements.
Refer to operating manual for full information.
Subwoofer
MAINS SWITCH
MAINS INPUT
50 / 60 Hz 150 W
100 - 240 V~
MAINS CONNECTOR
PHASE,
SWITCHES
Figure 3. Recommended distances to
the front wall
5
1 2
3
4
Figure 4. Examples of subwoofer posi-
tioning. 1 and 2 are good starting posi-
tions for a single subwoofer and also
work well with two linked subwoofers.
Position 3 causes a significant bass
boost and may cause asymmetric spa-
tial imaging if only one subwoofer is
used. Position 4 also works best with
two subwoofers. Flush mounting (pos.
5) generally works well.
3
4
