Genelec 7050C Quick Setup Manual

Quick setup guide
Note:
1) Positions A and B are
recommended.
2) Position C causes a
significant bass boost and
may cause asymmetrical
spatial imaging one sub-
woofer is used.
3) Positions C and D may
also work, but may cause
loss of LF when off room
center axis.

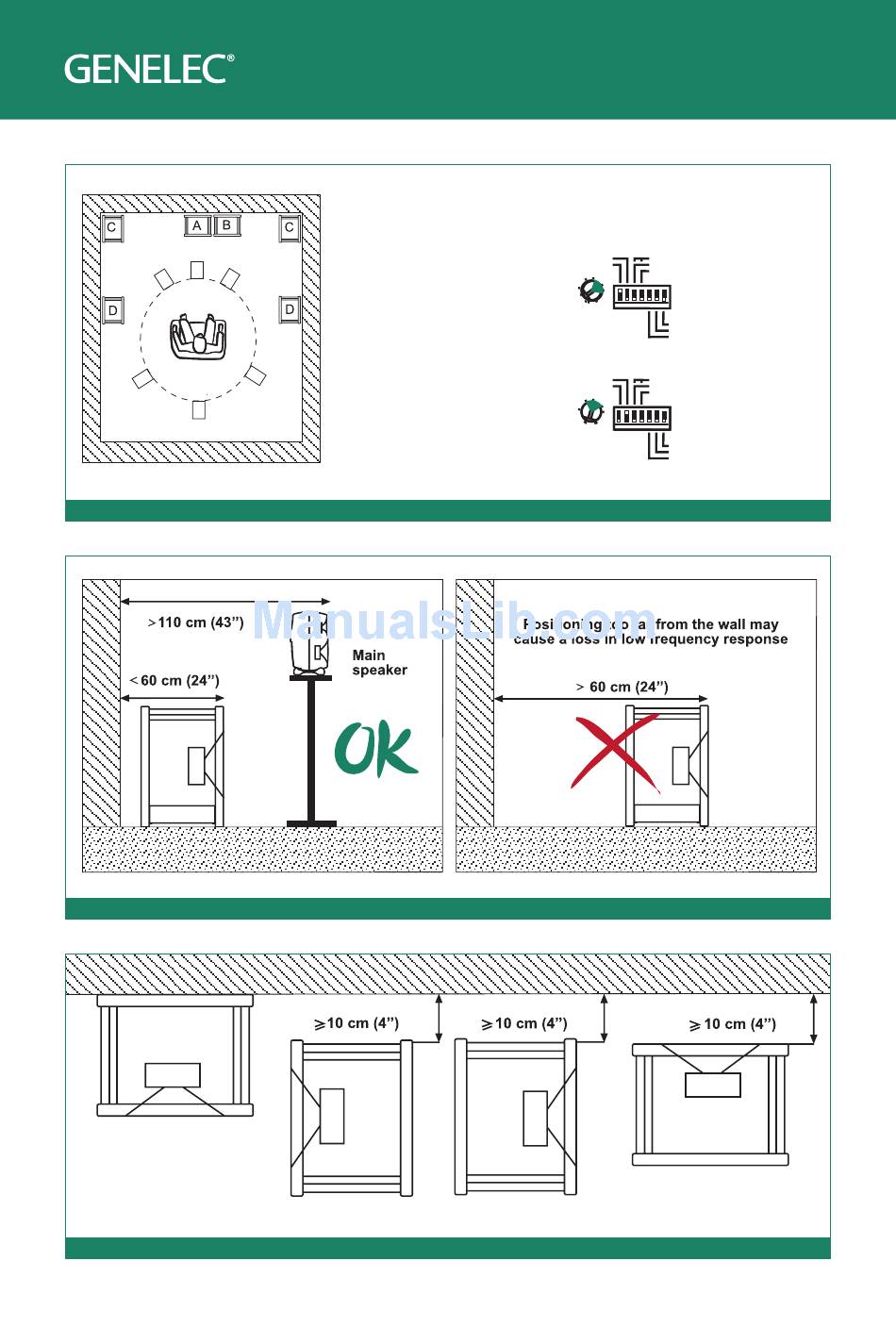

Subwoofer Placement
Distance from Front Wall
Aligning the Subwoofer
7050C
Suggested Tone Control
Settings
ROLL-OFF PHASE
-270°
-8 dB
-4 dB -90°
-180°
0
+3
-3
+6
-4
ON
+12 -6
INPUT dBu
ISS
PRODUCING
ISS SENSITVITY LOW
LFE +10 dB
100 dB SPL (1 m)
ROLL-OFF PHASE
-8 dB -270°
-4 dB -90°
-180°
0
+3
-3
+6
-4 ON
+12 -6
INPUT dBu
ISS
PRODUCING
ISS SENSITVITY LOW
LFE +10 dB
100 dB SPL (1 m)
Position A,
B and D
-4 dB
Position C
-8 dB
