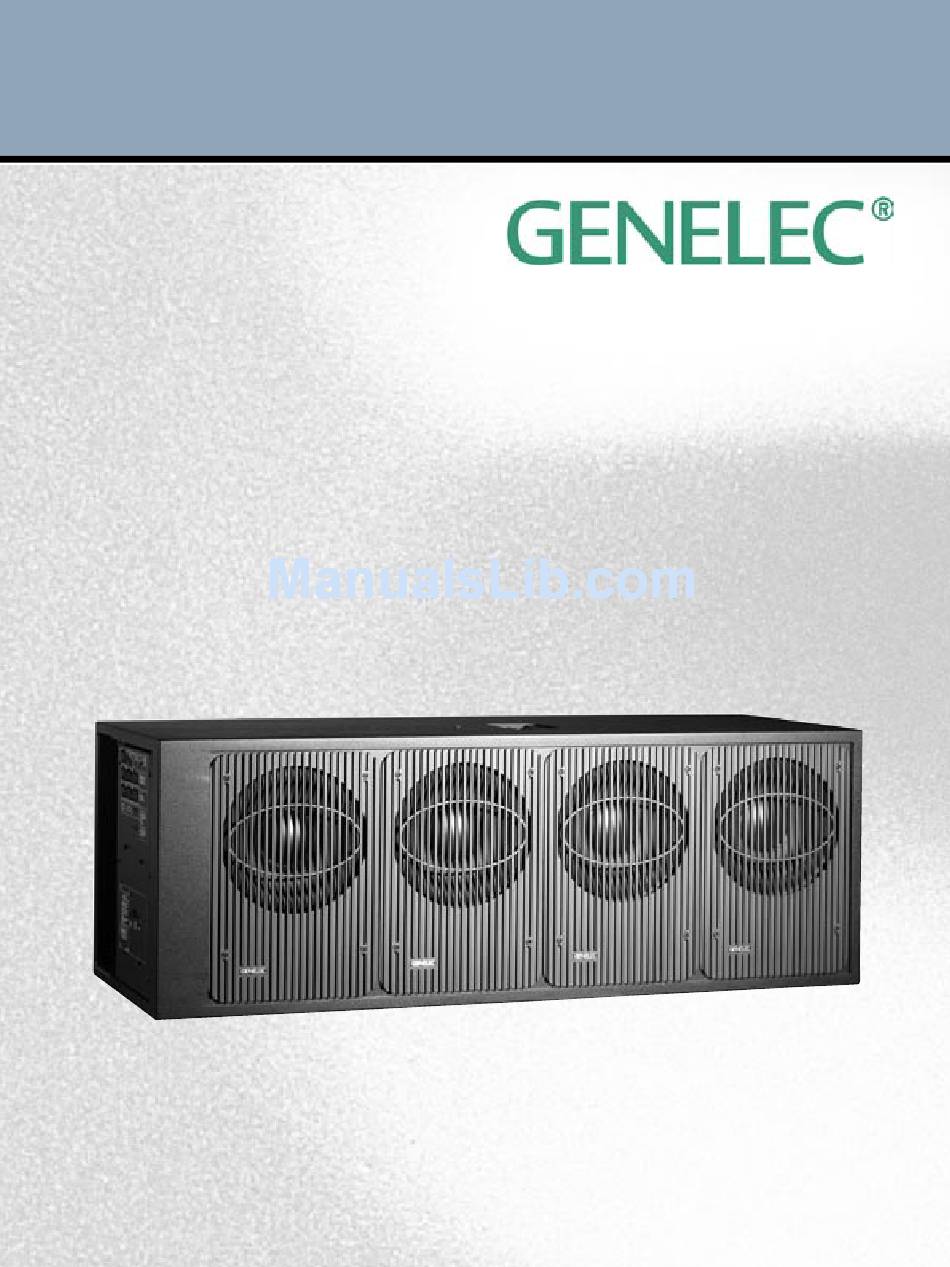

- Page 1 7073A Data Sheet Genelec 7073A Active Subwoofer...
- Page 2 Cabinet construction The speaker cabinet of the 7073A is a bass reflex design constructed of MDF and heavily braced to eliminate structural resonances. The black paint finish is rugged and stratch-resis- tant.
- Page 3 Figure 1: The amplifier panel layout of the 7073A subwoofer. so that the effect of the subwoofer on the whole monitoring system can be determined. Balanced XLR connectors are used for the system inputs and outputs. A dedicated “LFE IN” input connector allows easy set-up and accurate monitoring of the LFE channel in 5.1 and 6.1 channel...
- Page 4 100/200V or 115/230V Power consumption (average) Idle 60 VA Full output 1000 VA Genelec Document BBA0049001b. Copyright Genelec Oy 12.2002. All data subject to change without prior INPUT SECTION 7073A Input connector XLR female pin 1 pin 2 pin 3 –...
