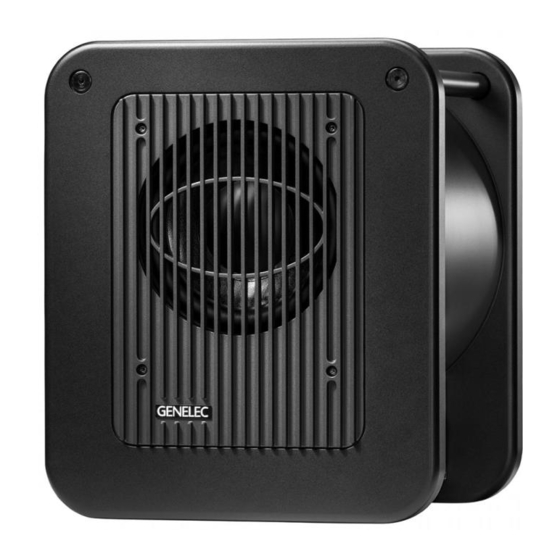

Genelec 7050B Quick Setup Manual

Subwoofer placement

A B
C
D
Distance from front wall
110 cm (43’’)
60 cm (24’’)
Aligning the subwoofer
Note:
C
1) Positions A and B are recommended.
2) Position C causes a significant bass
D
boost and may cause asymmetrical
spatial imaging one subwoofer is used.
3) Positions C and D may also work, but
may cause loss of LF when off room
center axis.
Main
speaker
10 cm (4’’)
Genelec Document BBAQS7050B001. Copyright Genelec Oy 5.2005. All data subject to change.
Quick setup guide
Suggested Tone
Control settings
Input
sensitivity
+3 0
-3
+6
-4
+12 -6
+3 0
-3
+6
-4
-6
+12
Positioning too far from the wall may
cause a loss in low frequency response
60 cm (24’’)
10 cm (4’’)
7050B
Bass
Roll-Off
ROLL-OFF
-6 dB
Position
-4 dB
PHASE
-270°
-90°
-180° A, B and D
85 Hz
ON
-2 dB
1 2 3 4 5 6 7
120
LFE
BANDWIDTH
LFE + 10 dB
ROLL-OFF
Position C
-6 dB
-4 dB
PHASE
-270°
-90°
-4 dB
-180°
85 Hz
ON
1 2 3 4 5 6 7
120
LFE
BANDWIDTH
LFE + 10 dB
10 cm (4’’)
