TESTO 327 Quick Start Manual

Follow these basic steps outlined in this Quick Start Guide
to get you up and running with your new meter quickly and easily

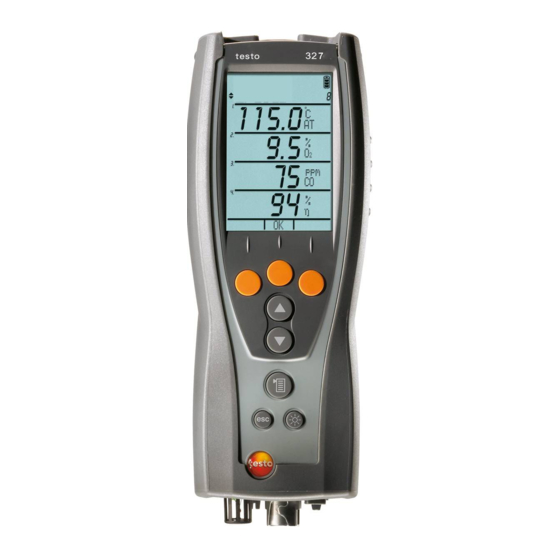

Product
j
Description:
p
j - IR interface,
n
ON/OFF switch
k
- Display
k
l - Control keys
m - Power supply,
probe connec
l
tions, gas
outlet
o
n - condensate
trap
o - battery, cells
compartment
p - magnetic back
m
Step 1
- Charge battery
.
Before using completely charge the battery
(for how long)
- attach power supply to analyzer
plug the power cord into wall socket
Step 2
-
Attach Probe
to Instrument
see fig 1.
fig 1.
Quick Start Guide
Model 327
Step 3
-
Turn Instrument ON
P Test screen displayed
(all segments are lit : 3s)
P Initial screen displayed
(Serial number, firmware version,
instrument model number, date, time
and country code : 5s)
F Orange hot keys can be used to:
- change fuel (Fuel)
- enter flue gas measuring mode
(Flue g)
- enter diagnostics mode
(Diagnost)
P
Measuring Mode Displayed (fig. 2)
Measuring
Flue gas
Fuel OK
fig 2.
Change measurement mode (press )
(See Fig xx Measuring Mode menu
items)
F Orange hot keys can be used to
- change fuel (Fuel) (some modes)
- select measuring mode (OK)
Step 4
- Select Measuring Mode
see fig 5.
(EXAMPLE: Flue Gas Measuring Mode)
Note: Items in display are user
configurable and may not match this example
F Press OK hot key to enter mode
(Note: press esc to exit mode)
CAUTION:
30 SEC. COUNTDOWN IS A NULL
CALIBRATION. ENTER THIS MODE IN
CLEAN AIR ONLY
P
Flue Gas Null Calibration Screen
Displayed (fig. 3)
Serial Number
Firmware Version
29
7 5 . 7
Tamb
MM/DD
T I : M E
Fuel
Date
fig 3
F Change fuel (press / )
F Orange hot keys can be used to:
- change fuel (Fuel)
- change date and time (Date)
Reminder: verify date and time
P
Initial flue gas measuring
mode screen displayed (fig. 4)
Note: This display will only appear if a Null
Calibration has NOT been performed.
Reentering Flue Gas mode after Null Calibration
will bypass this display.
Reminder: Dashes (----) appear when that
data field is empty
- Data has not been saved
- Calculation is out of limits
- Probe/sensor has not been
installed
Flue gas
Nat gas
7 5 . 7
_________
_________
fig 4
F Change fuel (press
F Orange hot keys can be used to:
- enter measuring mode (OK)
Sec.
P Flue Gas Measuring Mode Screen
Zero
Displayed (fig. 5)
°F
Flue gas
YYY
Nat gas
7 5 . 7
_________
_________
8 0 3 . 0
Fuel Start
fig 5.
F Scroll though line items
(press / )
F Orange hot keys can be used to:
- change fuel (Fuel)
- Start measuring flue gasses
(Start)
Reminder:
Probe must be inserted into
stack to take stack measurements
°F
Tstack
%
CO2
%
EFF
%
0.0
ExAir
OK
/ )
°F
Tstack
%
CO2
%
EFF
%
ExAir
