TE Connectivity PRO- CRIMPER III Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended- - use, production operations is available.
Die Assembly
The PRO- - CRIMPER III Hand Crimping Tool is a "Commercial" grade
hand tool and is designed primarily for field installation, repair,
maintenance work, or prototyping in industrial, commercial, or
institutional applications. Product crimped with this tool will meet
the crimp height requirement for hand tools in the appropriate 114 Series
Specification, but may not comply with other feature parameters of the
specification. A variety of tools are offered to satisfy your performance
requirements. For additional information, contact the Tooling Assistance
Center at 1- - 800- - 722- - 1111.
Product
Family
PIDG* Terminal or
PLASTI--GRIP* Terminal PLASTI--GRIP* Terminal
PIDG FASTON* PIDG FASTON
Terminal
Note: Refer to Catalogs 82004 and 82042 for terminal selection information.
1. INTRODUCTION
PRO--CRIMPER III Hand Crimping Tool Assembly
58433--3 consists of PRO--CRIMPER III Hand
Crimping Tool Frame 354940--1 and Die Assembly
58423--1. The tool assembly is used to crimp the
terminals listed in Figure 1 . For additional information
on the hand tool frame, refer to 408--9930. Read
these instructions thoroughly before using the tool
assembly.
Reasons for reissue of this instruction sheet are
E2011 Tyco Electronics Corporation, a TE Connectivity Ltd. Company
All Rights Reserved
TE logo is a trademark.
*Trademark. Other product names, logos, or company names might be trademarks of their respective owners.

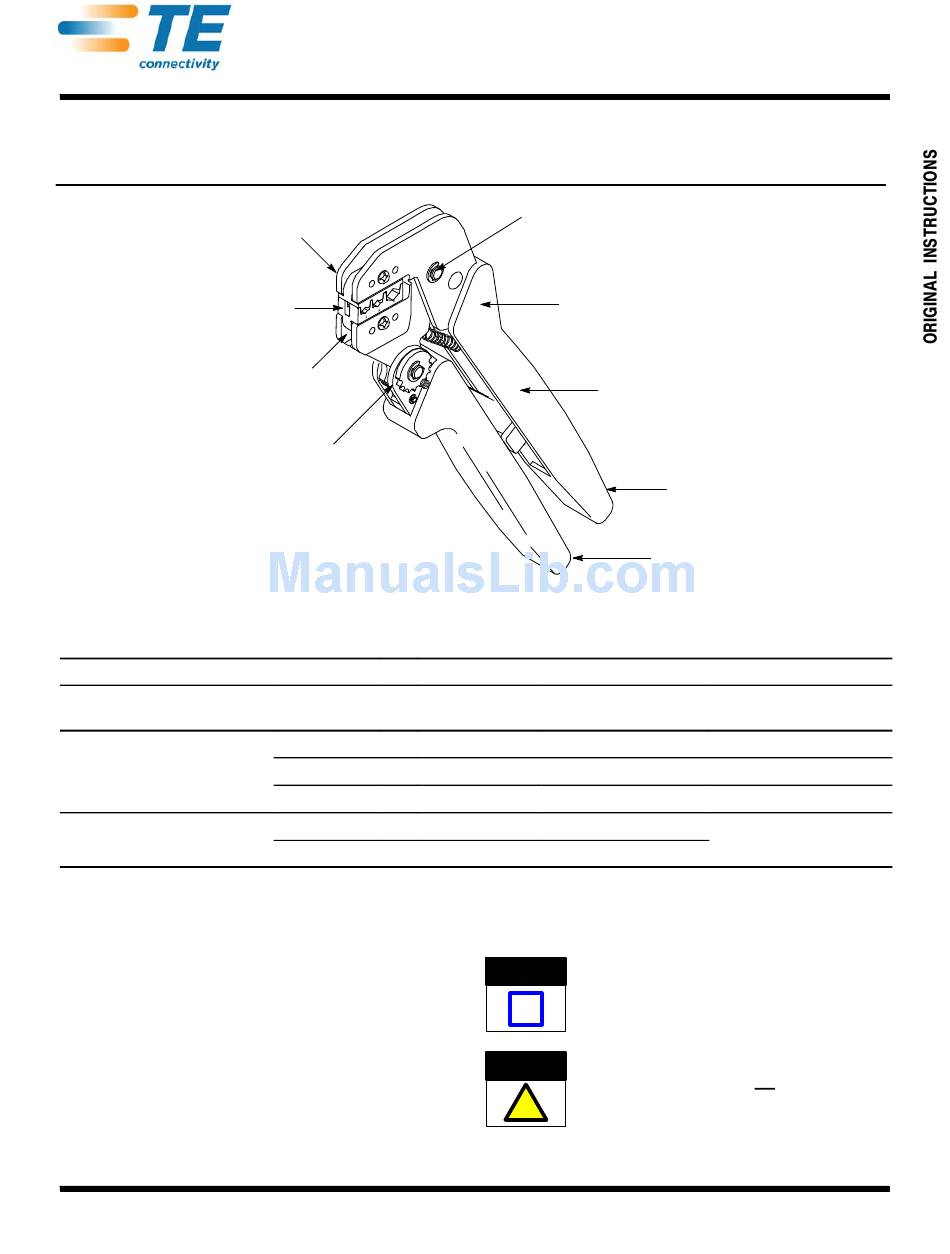

PRO- CRIMPER* III Hand Crimping
Tool Assembly 58433- 3 with
Die Assembly 58423- 1
Stationary
Jaw
Moving
Jaw
Ratchet
Adjustment Wheel
Insulation
Size (AWG)
Color
Red
Blue
Yellow
Red
Blue
Figure 1
TOOLING ASSISTANCE CENTER 1--800--722--1111
PRODUCT INFORMATION 1--800--522--6752
Pivot Pin
Back of Tool
(Wire Side)
PRO- - CRIMPER III Hand
Crimping Tool Frame
354940- - 1 (408- - 9930)
Maximum Insulation
Diameter (mm [in.])
22--16 3.56 [.140]
16--14 4.32 [.170]
12--10 6.35 [.250]
22--18 3.56 [.140]
16--14 4.32 [.170]
provided in Section 9, REVISION SUMMARY.
Dimensions in this instruction sheet are in
NOTE
millimeters [with inches in brackets]. Figures are
i
not drawn to scale.
Terminals crimped with Tool 58433- - 3 or with
CAUTION
Die Assembly 58423- - 1 are not Listed by
!
Underwriters Laboratories Inc. (UL) or CSA
International.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com
Instruction Sheet
408- - 9252
11 Mar 11 Rev L
Stationary Handle
Moving Handle
Wire
Strip Length
Range (mm [in.])
5.15--5.95 [.203--.234]
5.15--5.95 [.203--.234]
7.94--8.73 [.312--.344]
8.33--9.14 [.328--.360] 8 33 9 14 [ 328 360]
1 of 4
LOC B
