Spypoint SOLAR-W Quick Start Manual

In the box
Note: Memory card and batteries are sold separately.
QUICK START GUIDE
SOLAR-W
1 X Camera
• TRAIL CAMERAS
1 X Mounting
• HUNTING TABLET
Recommendations
We recommend formatting Class 10 SD cards before using it in this unit.
• ACTION CAMERAS
A complete format of the card should be done.
PC: Make sure the «quick format» box is unchecked before proceeding.
MAC: Make sure to select MS-DOS (FAT) format.
& ACCESSORIES
User manual, latest firmware
& FAQ available at:
www.support.spypoint.com
support@spypoint.com

1-888-779-7646

v1.4

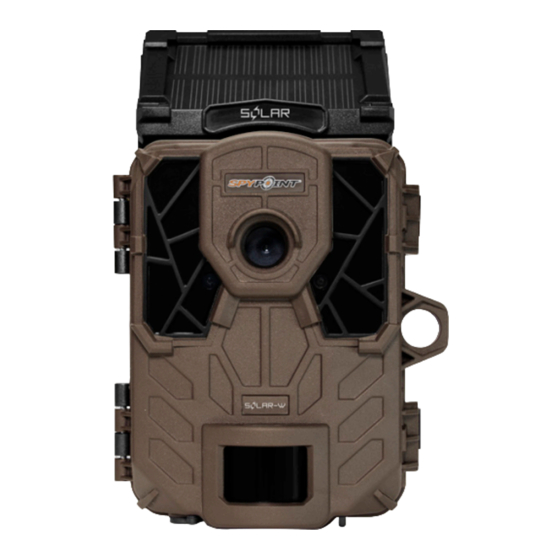

Components
Solar pannel
1
2 LEDs
Photo lens
3
 
4 Test light
5 Cable lock hole
Detection lens
6
7 12V Jack
1X Quick 1 X USB-A BUSY LED
8
start guide to barrel
connector
(44'')

1 X Installation
bracket strap
Getting started
1.
Battery case CHARGING THE INTERNAL BATTERY
9
10 Slot for installation strap
First, look at the internal battery percentage in the DETECTION TEST
Tripod mount
11
menu. If the percentage is low and the battery logo is not green, you
will need to charge the camera for 24-48 hours before use. While
OK button
12
charging, make sure the camera is turned off and the solar panel is
Navigation buttons
13
facing down so it does not interfere with the USB charging process.
ON / OFF Switch
14
Plug the cable from the 12V port at the bottom of the camera and
15 Viewing screen
connect it to a USB port. (ex. USB power adaptor or a computer that
SD card slot
16
will stay awake while charging) Once plugged, the screen will turn on
and it will show the charging battery level for 10 seconds. Press the OK
button once more to see the battery level reappear.*
7 9 2.
REMOVE THE CAMERA FROM THE MOUNTING BRACKET
1
• Push the tab to release the camera from the mounting bracket.
• Remove the camera.
3.
11
OPTIONAL:
ADD A SECONDARY POWER SOURCE
2
An optional power source can be added as a backup to the internal
battery for maximum protection.
3
8
9 10
4
5 12
DC 12V
13
14
15
6
16
12V power source 6 alkaline or lithium
AA batteries
* 2017 cameras
To ensure maximum performance of the camera and prevent
battery leak, we recommend the use of new batteries. Make sure
to insert each battery with the correct polarity. (Negative or flat
end agaist the metal spring plate) Do not mix battery type - use
ALL alkaline or ALL lithium. Do not mix old and new batteries.
Rechargeable AA batteries are not recommended as the lower
voltage they produce can cause operational issues.
4.
INSERT THE MEMORY CARD
Before inserting or removing a memory card, always turn off the camera
to prevent loss or damage of the photos already recorded. Also make
sure that the switch on the side of the card is not in the LOCK position.
Insert an SD/SDHC memory card (up to 32 GB capacity) in the card
slot with the label side facing upward. The card is inserted correctly
when a click is heard.

We suggest to format your SD card if it's been in another electronic
device to make sure you will have the maximum capacity of your
memory card.
Lithium battery pack
LIT-09/LIT-C-8
